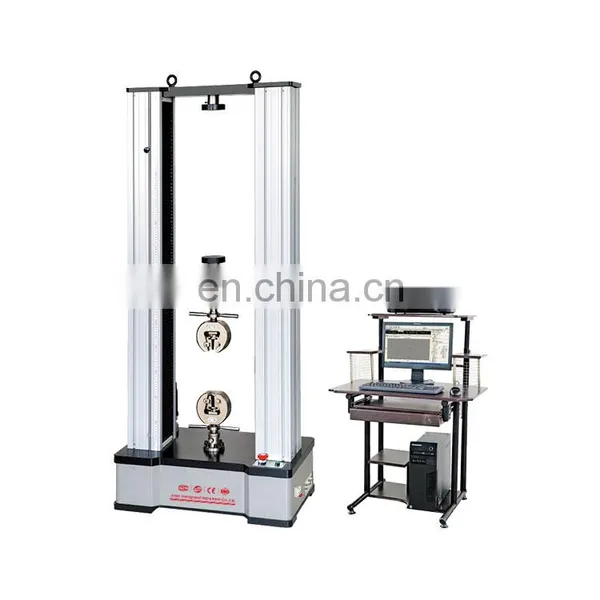

Help CenterASTMD 412 Big Stroke Extensometer Plastic Sheet Tensile Testing Machine
Related Products
-
Computer Control Electronic Flexural And Bending Testing Machine For Tile Gypsum BoardUS$ 4,900 - 5,200MOQ: 1 Set -
HST-100T 100KN Insulator Thermal Mechanical Testing EquipmentUS$ 1,000 - 1,000MOQ: 1 Set
-
Electronic Brake Pad Welding Spot Shear Testing MachineUS$ 4,900 - 5,200MOQ: 1 Set
-
100KN Steel Tube Right Angle Coupler /swivel Coupler /sleeve Coupler Scaffold Fastener Tensile Compression Testing EquipmentUS$ 6,500 - 8,000MOQ: 1 Set
-
HST-100T Insulator Thermal-mechanical Testing MachineUS$ 10,000 - 10,000MOQ: 1 Set
WDW-20 kn copper wire tensile testing machine
1. Application:
This series mainly used for tensile, compression, peal, shear, tear, and bending mechanical property test for metal, non metal material. Widely used in aerospace, petrochemical industry, machinery manufacturing, plastic, rubber, ceramic building materials, metal materials, construction and other industries, and institutions of higher learning, scientific research institutions, technical supervision, Quality Inspection Station and so on.
2.Technical parameters: TEL/WECHAT: 15098778967 SKYPE: HSSDTEST
Model | WDW-10/20//30 | WDW-50 | WDW-100 | WDW-200/ 300 | WDW-500/ 600 | ||||||
Max. Load | 10kN | 20kN | 30kN | 50kN | 100kN | 200kN | 300kN | 500kN | 600kN | ||
Structure | Four-column Floor Type (upper is compression and lower is tensile) | ||||||||||
Control model | Computer control | Constant stress, constant strain,constant displacement closedloop control System | |||||||||
Load accuracy | 1 class/ 0.5 class optional | ||||||||||
Load range | 2%-100% of full scale /0.4%-100% optional | ||||||||||
Load resolution | 1/300000 | ||||||||||
Deformation test range | 2%~100% | ||||||||||
Deformation accuracy | ≤±1% | ||||||||||
Displacement accuracy | ≤±1% | ||||||||||
Disp. resolution | 0.04um | ||||||||||
Displacement speed | 0.05-500mm/min | 0.05-200mm/min | |||||||||
Tensile space | 800mm | 700mm | 700mm | 550mm | 700mm | ||||||
Compression space | 800mm | 700mm | 700mm | 550mm | 700mm | ||||||
Test width | 400mm | 400mm | 450mm | 600mm | 500mm | ||||||
Clamp way | Manual clamp / Hydraulic clamp (optional) | Hydraulic clamp | |||||||||
Load Cell Configuration | One(max load), more load cells can be added according to customer requirement | ||||||||||
Extend configuration | Large deformation extensometer, high or low temperature teste chamber, high temperature oven | ||||||||||
Power supply | AC220/380V±10%,50Hz (can be customized) | ||||||||||
