Home > Instruments & Meters > Test Instrument > Test Machine > Electronic Brake Pad Welding Spot Shear Testing Machine
US$ 4,900 - 5,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST or OEM
Place of Origin:
Shandong, China
Model Number:
WDW-20/50/200/300/600
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100KN Steel Tube Right Angle Coupler /swivel Coupler /sleeve Coupler Scaffold Fastener Tensile Compression Testing EquipmentUS$ 6,500 - 8,000MOQ: 1 Set -
HST-100T Insulator Thermal-mechanical Testing MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
Horizontal Brake Pad Shear Testing MachineUS$ 7,700 - 7,700MOQ: 1 Set
-
Differential Pressure TesterUS$ 1,900 - 2,000MOQ: 1 Set
-
150 kn Customizable Bowl Buckle Type Scaffolding Fasteners TesterUS$ 6,500 - 8,000MOQ: 1 Set
Brand Name
HST or OEM
Place of Origin
Shandong, China
Model Number
WDW-20/50/200/300/600
Power
Electronic

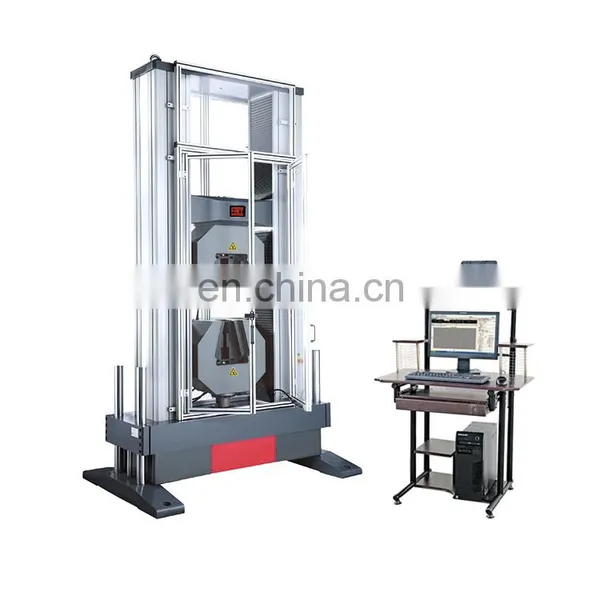

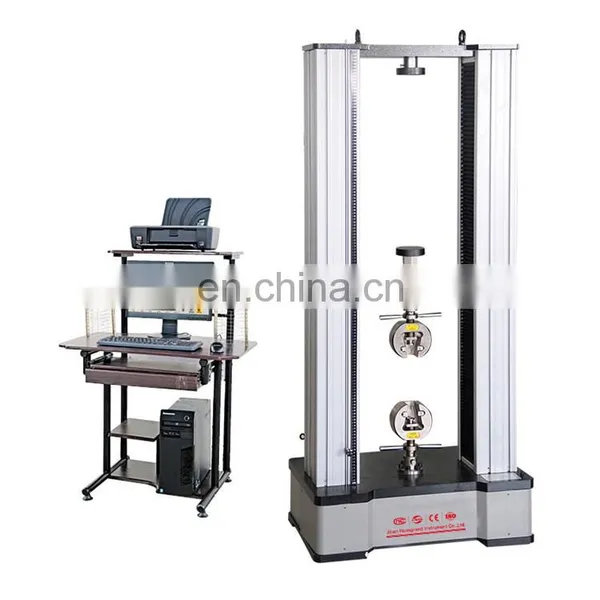

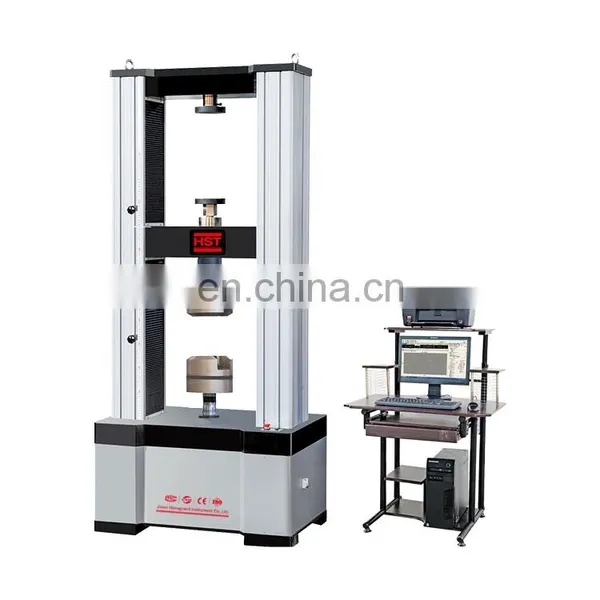

Electronic Brake pad welding spot shear testing machine
Product Description
1. Application:
electronic tensile compression testing machine are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc .
2.Main Specifications:
Model | WDW-10/20/50 | WDW-100 | WDW-200/ 300 | WDW-500/ 600 | ||||||
Max. Load | 10kN 1000kgf | 20kN 2000kgf | 50kN 5000kgf | 100kN 10000kgf | 200kN 20000kgf | 300kN 30000kgf | 500kN 50000kgf | 600kN 60000kgf | ||
Structure | Floor Type | |||||||||
Control model | Computer control | Constant stress, constant strain, constant displacement closed-loop control System | ||||||||
Load accuracy | ≥±1% | |||||||||
Load range | 2%-100% of full scale | |||||||||
Load resolution | 1/20000 of full scale | |||||||||
Deformation test range | / | 2%~100 | ||||||||
Deformation accuracy | / | ≥±0.5 | ||||||||
Deformation resolution | / | 1/20000 | ||||||||
Displacement accuracy | ≥±1% | |||||||||
Disp. resolution | 0.01mm | |||||||||
Displacement speed | 0.005-500mm/min | 0.001-200mm/min | ||||||||
Tensile space | 700mm | 650mm | 600mm | 650mm | ||||||
Test width | 400mm | 450mm | 550mm | 650mm | ||||||
Clamp way | Manual clamp | Hydraulic clamp | ||||||||
