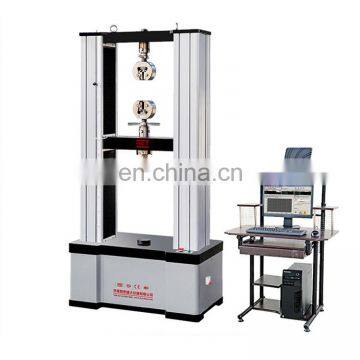

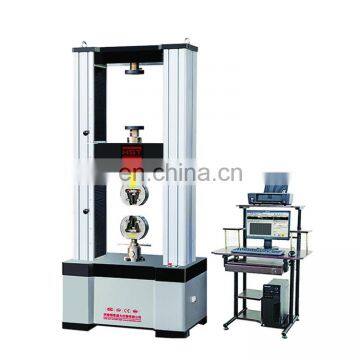

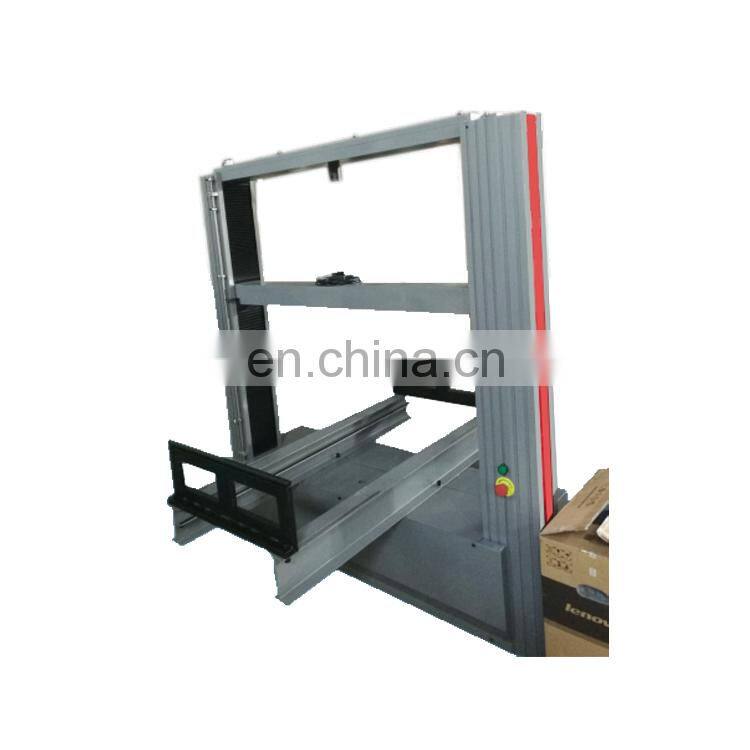

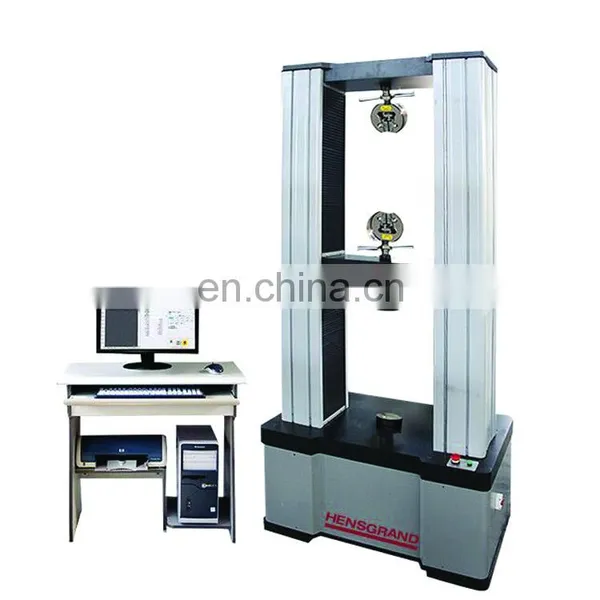

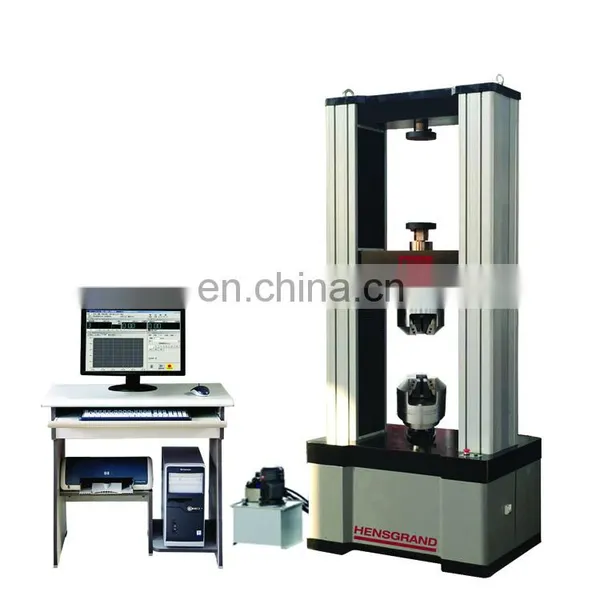

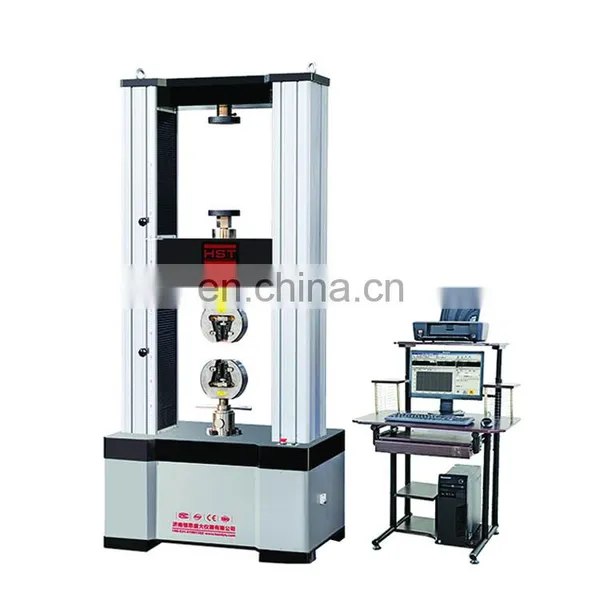

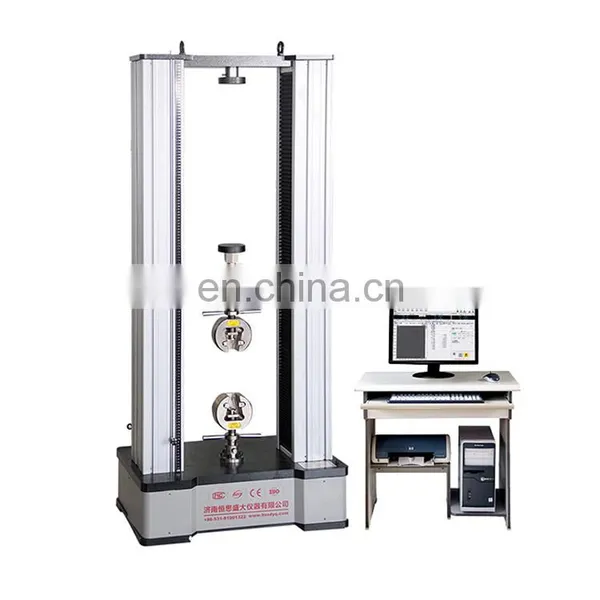

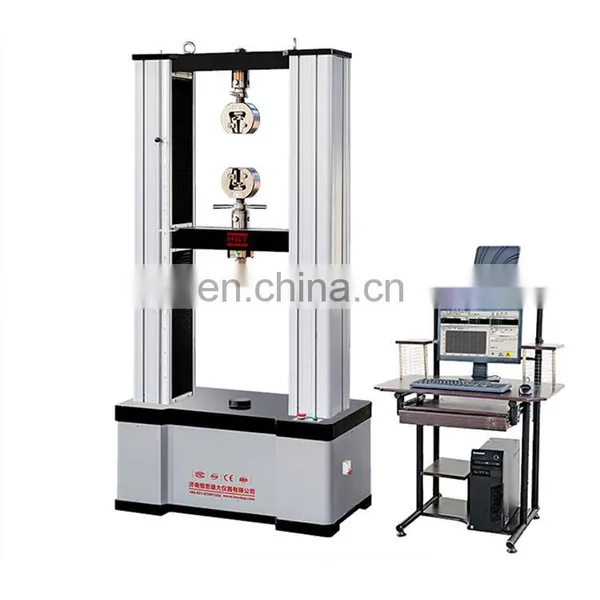

Computer Control Electronic Flexural And Bending Testing Machine For Tile Gypsum Board
1. Application
It is used to test the bending resistance and bending resistance of various ceramic tiles, asbestos cement wave, asbestos cement slab, straw board, gypsum board, lightweight insulation material board, wood board, and various non-metal composite boards and research.
2. Standards
GB / T3810.1-2016 Test Methods for Ceramic Tiles Part 1: Sampling and acceptance conditions;
GB / T3810.4-2016 Test method for ceramic tiles Part 4: Determination of modulus of rupture and breaking strength;
GB / T9966.2-Test methods for natural facing stones
GB / T4100-2015 ceramic tiles
GB 26539-2011 anti-static ceramic tiles;
GB / T9775- paper gypsum board;
JCT997-Decorative paper gypsum board;
GB / T26204-Paperboard with gypsum board cover;
GB / T12914-Determination of tensile strength of paper and paperboard;
GB / T17669.3-Determination of mechanical properties of architectural gypsum;
GB / T9776-Building plaster;
DIN 53291-Sandwich structure test. Pressure test perpendicular to surface layer;
DIN 53292-Sandwich structure inspection. Tensile test perpendicular to the surface;
DIN 53293-Sandwich structure inspection. Bending test;
DIN 53294-Interlayer structure inspection. Shear test;
ASTM C1658 / C1658M-2013 standard specification of glass fiber gypsum board;
3.Main Specifications:
Model |
WDW-10/20/50ZY |
WDW-100ZY |
WDW-200/ 300ZY |
WDW-500/ 600ZY |
||||||
Max. Load |
10kN 1000kgf |
20kN 2000kgf |
50kN 5000kgf |
100kN 10000kgf |
200kN 20000kgf |
300kN 30000kgf |
500kN 50000kgf |
600kN 60000kgf |
||
Structure |
Floor Type |
|||||||||
Control model |
Computer control |
Constant stress, constant strain, constant displacement closed-loop control System |
||||||||
Load accuracy |
≥±1% |
|||||||||
Load range |
2%-100% of full scale |
|||||||||
Load resolution |
1/20000 of full scale |
|||||||||
Deformation test range |
/ |
2%~100 |
||||||||
Deformation accuracy |
/ |
≥±0.5 |
||||||||
Deformation resolution |
/ |
1/20000 |
||||||||
Displacement accuracy |
≥±1% |
|||||||||
Disp. resolution |
0.01mm |
|||||||||
Displacement speed |
0.005-500mm/min |
0.001-200mm/min |
||||||||
Tensile space |
700mm(CUSTOMIZED) |
650mm |
600mm |
650mm |
||||||
Test width |
400mm(CUSTOMIZED) |
450mm |
550mm |
650mm |
||||||
Clamp way |
Manual clamp |
Hydraulic clamp |
||||||||
