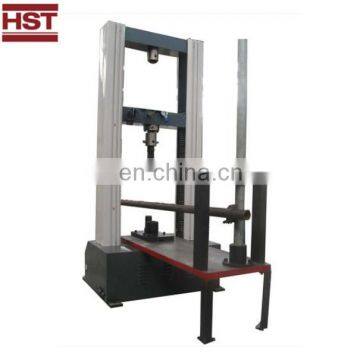

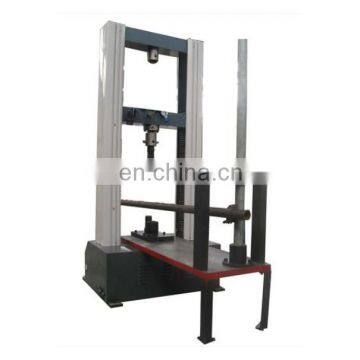

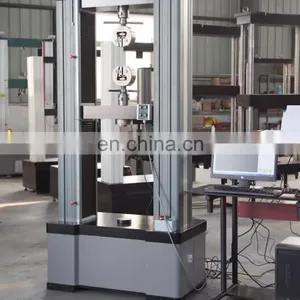

ComputControlled Bowl Buckle type Scaffolding Fasteners Testing Machine
1. Application
The national standard of the WKW-150 microcomputer controlled bowl buckle testing machine is built into the test program and meets the standards GB / T228-2002 "Indoor Tensile Test Method for Metal Materials", GB / T7314 "Metal Compression Test Method", GB / T5725-2009. "Safety Net", GB / T15831-2006 "Steel Pipe Scaffold Fastener" and other hundreds of standard requirements, customized standard methods for users.
2.Host Features
The machine adopts double-space door structure, and the test space is interchangeable. The beam is steplessly lifted. The transmission part adopts arc synchronous toothed belt, screw pair transmission, stable transmission and low noise. The specially designed synchronous toothed belt speed reduction system and precision ball screw pair drive the moving beam of the testing machine to achieve gapless transmission.
Testing machine grade | Level 1 |
Maximum | 150kN |
Measuring range of test force | 2% -100% |
Test force accuracy | Better than ± 1% |
Displacement resolution | 0.01mm |
Displacement measurement accuracy | Better than ± 1% |
Test speed range | 0.01-300mm / min stepless speed regulation |
Stretching space (without fixture) | 600mm (conventional, can also be customized according to user needs) |
Compressed space | 600mm (conventional, can also be customized according to user needs) |
Column spacing | 400mm (conventional, can also be customized according to user needs) |
Speed accuracy | Better than ± 1% of indicated value |
Motor Power | 1KW |
Power supply | AC220V ± 10%, 50Hz, single phase |
working environment | Room temperature—35 ℃, relative humidity does not exceed 80% |

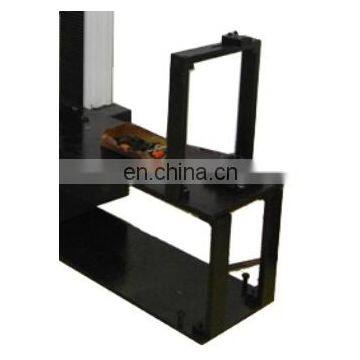

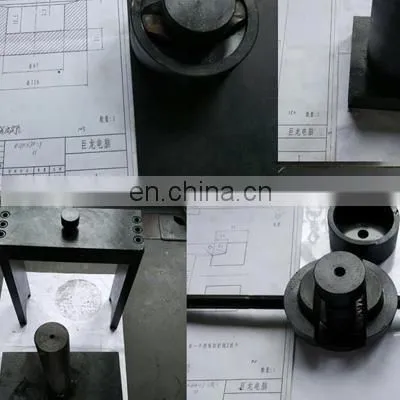

Bowl buckle fixture | Upper bowl buckle test tooling |
Crossbar joint strength test tooling | |
Tooling for welding strength test of lower bowl buckle | |
Steel pipe scaffold fastener fixture | Anti-slip and anti-destructive fixture |
Torsion stiffness test tooling | |
Tooling for tensile test of butt joint fasteners | |
Compression clamp |
