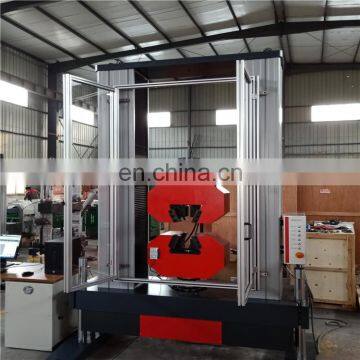

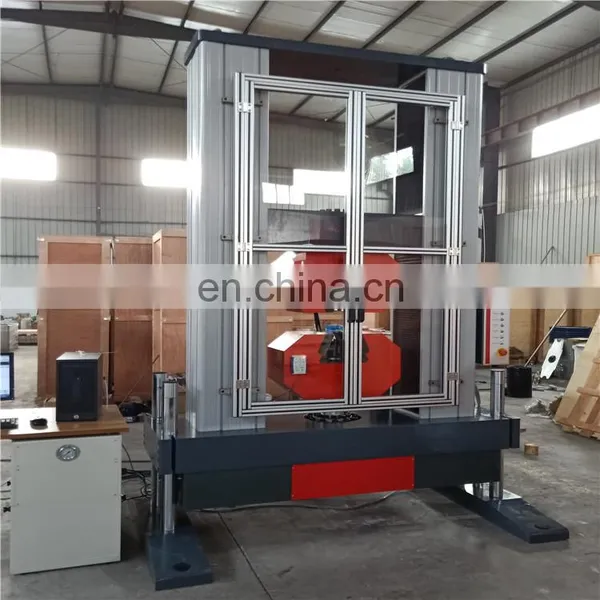

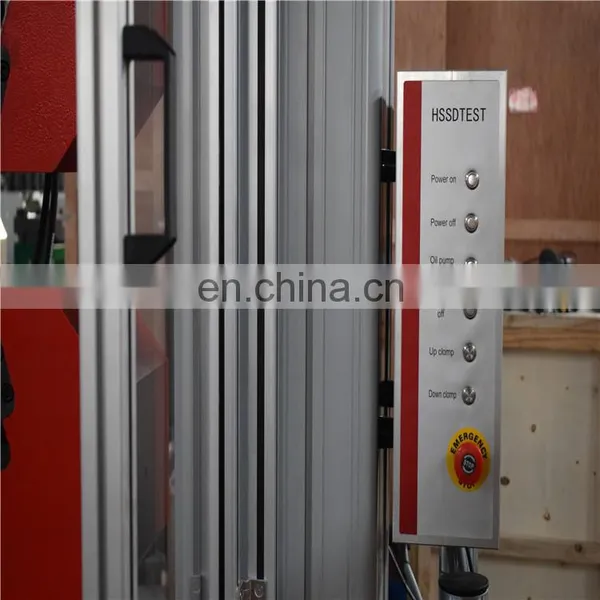

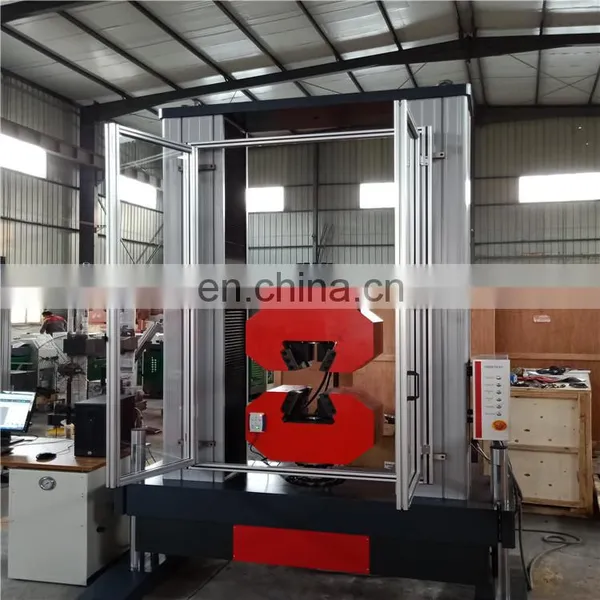

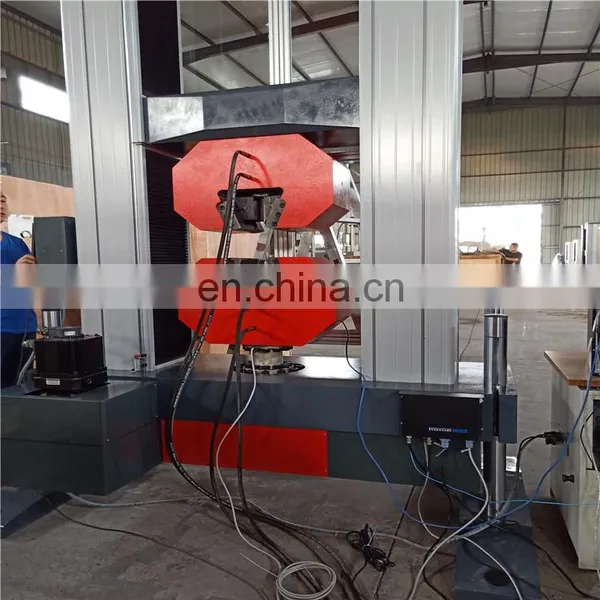

WDW- 500 50ton Computer Control Electronic Universal Tensile Testing Machine
1. Application:
WDW series computerized electronic universal testing machines are designed and manufacture
according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Main Specifications:
Model |
WDW-10 |
WDW-20 |
WDW-30 |
WDW-50 |
WDW-100 |
WDW-200 |
WDW-300 |
WDW-500 |
WDW-600 |
|||
Max. Load |
10kN 1000kgf |
20kN 2000kgf |
30kN 3000kgf |
50kN 5000kg |
100kN 10000kgf |
200kN 20000kgf |
300kN 30000kgf |
500kN 50000kgf |
600kN 60000kgf |
|||
Load accuracy |
≤±1% |
|||||||||||
Load range |
2%-100% of full scale |
|||||||||||
Load resolution |
1/200000 of full scale |
1/500000 of full scale |
||||||||||
Disp. resolution |
0.01mm |
|||||||||||
Test speed |
0.05-500mm/min |
0.05-300mm/min |
0.01-200mm/min |
|||||||||
Tensile space |
750mm |
650mm |
650mm|25.6in |
600mm|21.6in |
||||||||
Comp. space |
750mm |
650mm |
650mm|25.6in |
600mm|21.6in |
||||||||
test width |
375mm |
400mm |
420mm |
600mm |
570mm |
|||||||
Dimension |
730×430×1700mm |
755×480×1780mm |
825×600×1950mm |
1110×750×2560mm |
1110×780×2600mm |
|||||||
Power supply |
220V, 1ph, 0.5kW |
220V, 1ph, 0.75kW |
220V, 1ph, 1kW |
380V, 3ph, 3KW |
380V, 3ph, 4KW |
|||||||
Weight (kg) |
250kg |
280kg |
350kg |
1500kg |
2000kg |
|||||||
