America EATON Proportional Servo Valve SM4-40(40)151-80-40-10

America EATON Proportional Servo Valve SM4-40(40)151-80-40-10 thumbnail-1
America EATON Proportional Servo Valve SM4-40(40)151-80-40-10 thumbnail-2
America EATON Proportional Servo Valve SM4-40(40)151-80-40-10 photo-1

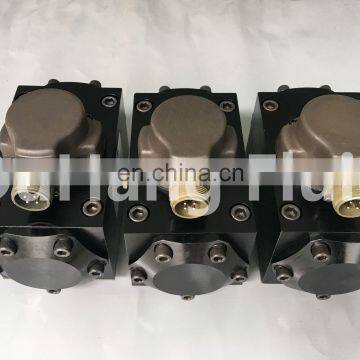

America EATON Proportional Servo Valve SM4-40(40)151-80-40-10 photo-2
US$ 100 - 101 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
VICKERS
Model Number:
SM4-40(40)151-80-40-10
Power:
/
Contact Supplier Request Quote Chat Now
Shenzhen Ou Hang Fluid Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VICKERS
Model Number SM4-40(40)151-80-40-10
Pressure High Pressure
Product Description
Vickers SM4-20 servo valve provides system closed-loop control, with the advantages of high position accuracy, repeatable speed curve and predictable force or torque adjustment.
. the large range flow output capability of the SM4 series ensures that users get the most suitable model. . the customized valve core cover and valve sleeve opening can meet the special flow control requirements for special purposes. . the second stage valve body is made of high-strength aluminum alloy to ensure lighter and more durable. The symmetrical design of SM4 realizes the reliable throttling of flow with the minimum zero offset. As a result, the work of the machine is more coordinated. . double coil, four air gap, symmetrical dry torque motor, with extremely fast response to input signal, can produce highly accurate control curve. . Viton * seal is standard. The standard oil port distribution circle, installation mode and flexibility of transition plate make the wiggs servo valve a high cost-effective alternative to the existing servo valve and improve the existing system. . higher frequency response (customized) can increase the broadband of the system and meet higher performance requirements. . an integrated 35 OM (absolute) filter protects the pilot stage from contamination. . the simple interface of SM4 is equipped with double filter module, which can effectively protect the pilot stage from pollution. . the valve core and valve sleeve are made of hardened stainless steel to reduce wear and corrosion. The O-ring installed on the valve sleeve prevents the valve core from engaging to ensure smooth operation. . before installing the SM4, the flushing valve can greatly reduce the initial pollution of the system.
Technical Parameters
performance
Maximum supply pressure
bar(psi)
SM4-20
Minimum supply pressure
bar(psi)
14(200)
proof pressure
%Maximum supply pressure
At the oil return port:150 At the oil return port:100
Failure pressure, return port open
%Maximum supply pressure
250
Maximum operating temperature
℃（℉ ）
135（275）
Zero position hysteresis loop
%Rated current
≤3
Symmetry error
%Rated current
＜10
Linearity error
%Rated current
＜10
threshold
%Rated current
≤0.5
Related Products
Packing&Shipping
In order to ensure that the product is not damaged during transportation, we will choose to use high-hardness cardboard boxes or wooden boxes to package the product according to the volume of the product, and adopt protective measures such as foam anti-collision and wooden frame fixing to ensure the safe and non-destructive delivery of the goods to the greatest extent.
