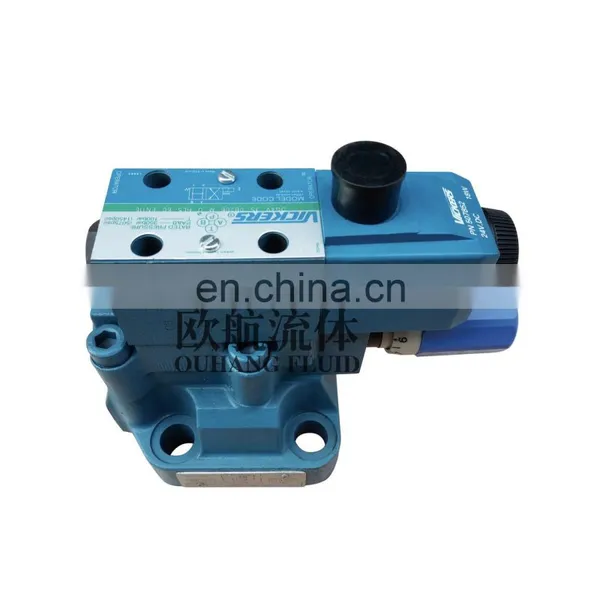

VICKERS Electro-hydraulic proportional valve CG5V 8BM D MU HL5 20 EN7
USD $100 - $101
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Any port
- T/T Credit Card
You May Like
- Original new product VICKERS proportional valve KFDG4V 5 2C50N Z M U1 H7 20
- America VICKERS Electro-hydraulic proportional valve KACG3 L40D Z-M3-PD7-H1-10
- America VICKERS Proportional valve KBDG5V 8 2C330N X 7 M1 PC7 H1 10
- Pilot-Operated Servo valves D661Z4754
- Germany rexroth servo valve 4WSE2ED 10-51-75B9ET315K31DV
- Original new product rexroth servo valve 4WSE3EE 16-15-200B8T315K9EM use for metallurgy and steel works
Product Details
Brand Name: | VICKERS | Model Number: | CG5V 8BM D MU HL5 20 EN7 |
Pressure: | High Pressure |
Product Description
Product Description
When the system pressure reaches the set value of the valve, the two-stage valve limits or controls the pressure by leading all the oil flow until the system reaches the oil tank. So as to protect the actuator from overload.
By selecting a 4-speed adjustment control range covering 3 to 350 bar (44 to 5000 psi), it closely matches the application requirements.
Electric load and unload are obtained by electromagnet control type.
Remote parallel control is performed by other pilot valves connected to the "drain" port.
Until the system pressure is close to the valve setting, the total system flow can still be used for working output, so the machine productivity is very high.
Pressure totem has been optimized without compromising other performance parameters.
Due to the cartridge design of the main valve components, excellent repeatability and stability are achieved.
The loss of uninstall function is very small.
International standard mounting surface.
Due to the high ratio of power and size (more than twice that of many conventional designs), the installation cost and space requirements are reduced.
Technical Parameters
Maximum pressure: | ||
Oil port P and X | 350bar(5000psi) | |
Oil port T: | ||
Cg2v valve, 10 series | 350bar(5000psi) | |
Cg5v valve, 20 series | 100bar(1500psi) | |
For overflow valve, the oil port is usually directly connected to the oil tank, because the back pressure here is added to the effective design value of the valve. | Cg5v, 20 series valves are designed to meet the needs of most applications. If: | |
a) The valve is required to maintain pressure for a long time without frequent switching, and / or | ||
b) The back pressure of port t needs to be increased to more than 100bar | ||
Pressure adjustment range | See model compilation | |
Maximum flow: | ||
CG*V-6 | 200 L/min(53 us gpm) | |
CG*V-8 | 400 L/min(106 us gpm) |
Related Products
Packing&Shipping
In order to ensure that the product is not damaged during transportation, we will choose to use high-hardness cardboard boxes or wooden boxes to package the product according to the volume of the product, and adopt protective measures such as foam anti-collision and wooden frame fixing to ensure the safe and non-destructive delivery of the goods to the greatest extent.
