Gear Ratio 100 High Precision Right Angle Planetary Gearbox for Die-cutting Machine
US$ 77 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Etech
Place of Origin:
Sichuan, China
Output Speed:
600rpm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Nema17 High Precision High Torque 50W Servo Stepper Motor Speed ReducerUS$ 72 - 72MOQ: 1 Piece -
Nema 23 Mini Planetary Gearbox for Servo MotorUS$ 75 - 200MOQ: 1 Piece
-
China Hot Sell Right Angle Gear Box Small Planetary Reducer Gear Ration: 3-1000 Flange Size: 60-160mmUS$ 200 - 200MOQ: 1 Piece
-
PLE60-3K Flange Size 60mm Mini Planetary Gearbox Speed ReducerUS$ 77 - 77MOQ: 1 Piece
-
High Ratio PLE80 80mm Planetary Gearbox ReducerUS$ 199 - 199MOQ: 1 Piece
Brand Name
Etech
Place of Origin
Sichuan, China
Output Speed
600rpm
Input Speed
6000rpm
Output Torque
260N.m
Gearing Arrangement
Spur
Product Description
when input speed is 3000rpm
The input flange can be custom-made by your motor size
| Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
| Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
| Stage | Single stage | Two stage | Three stage |
| Ratio | 3:1, 4:1, 5:1, 7:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
| Rated input speed (rpm) | 3500 | 3500 | 3500 |
| Max input speed (rpm) | 6000 | 6000 | 6000 |
| Efficiency (%) | 96 | 94 | 90 |
| Lowest backlash (arcmin) | 3 | 6 | 8 |
| Niose (dB) | ≤62 | ≤62 | ≤62 |
| Life (h) | 30000 | ||
| Lubrication | Lifetime lubrication | ||
| Level of protection | IP65 | ||

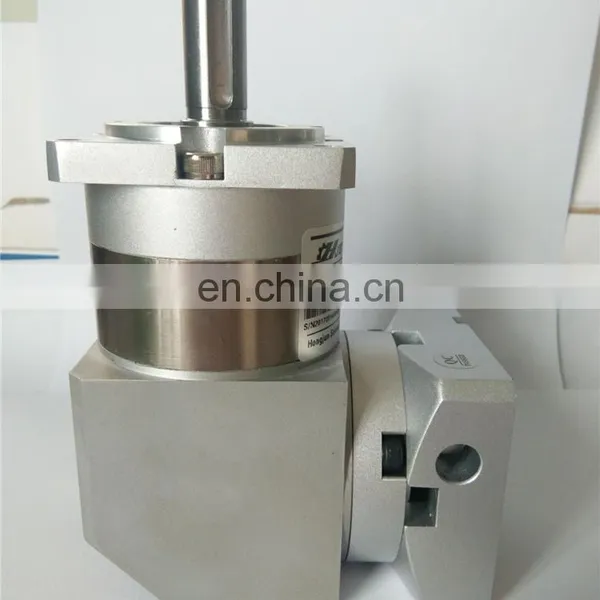

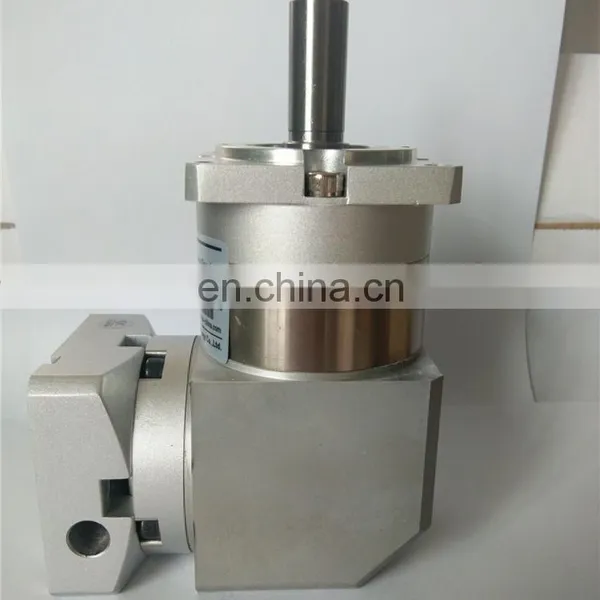

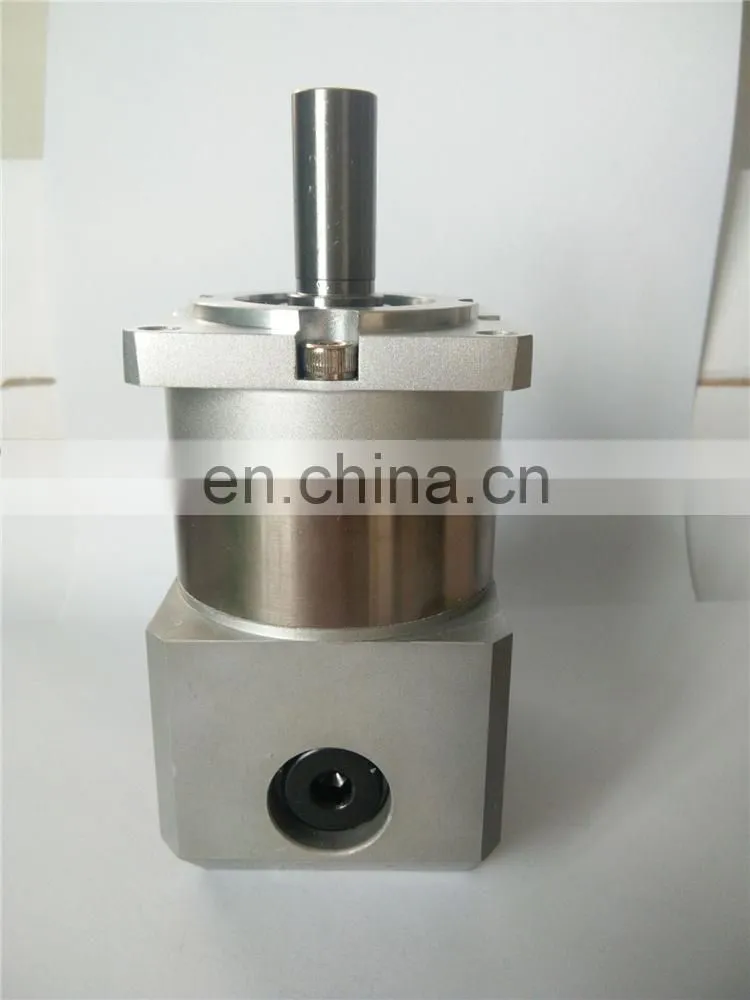

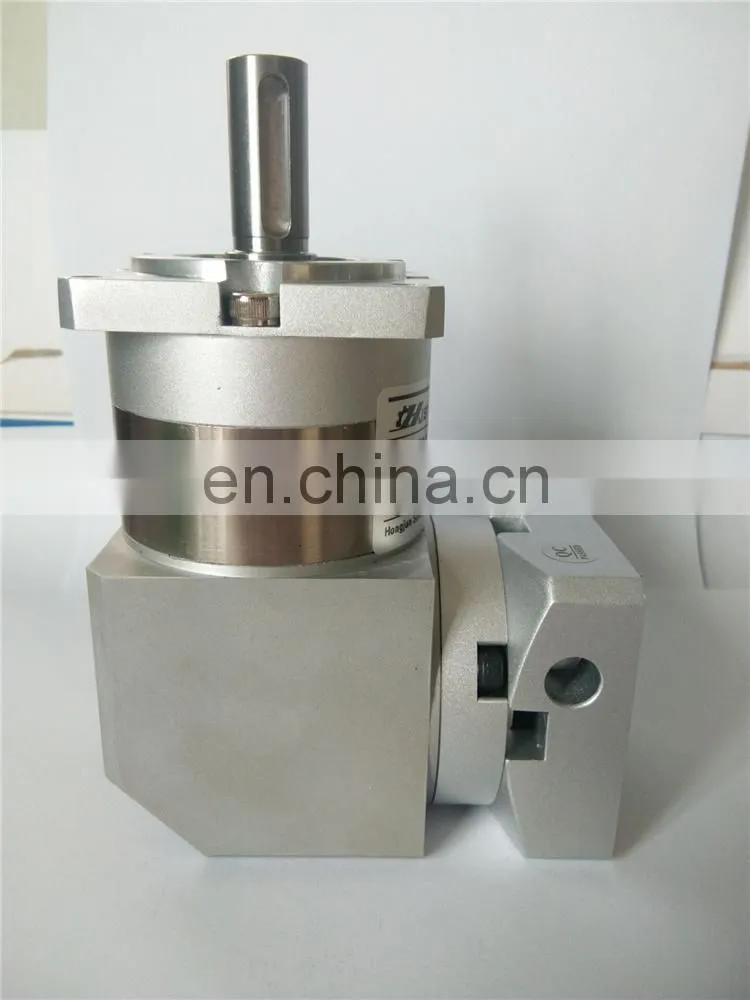

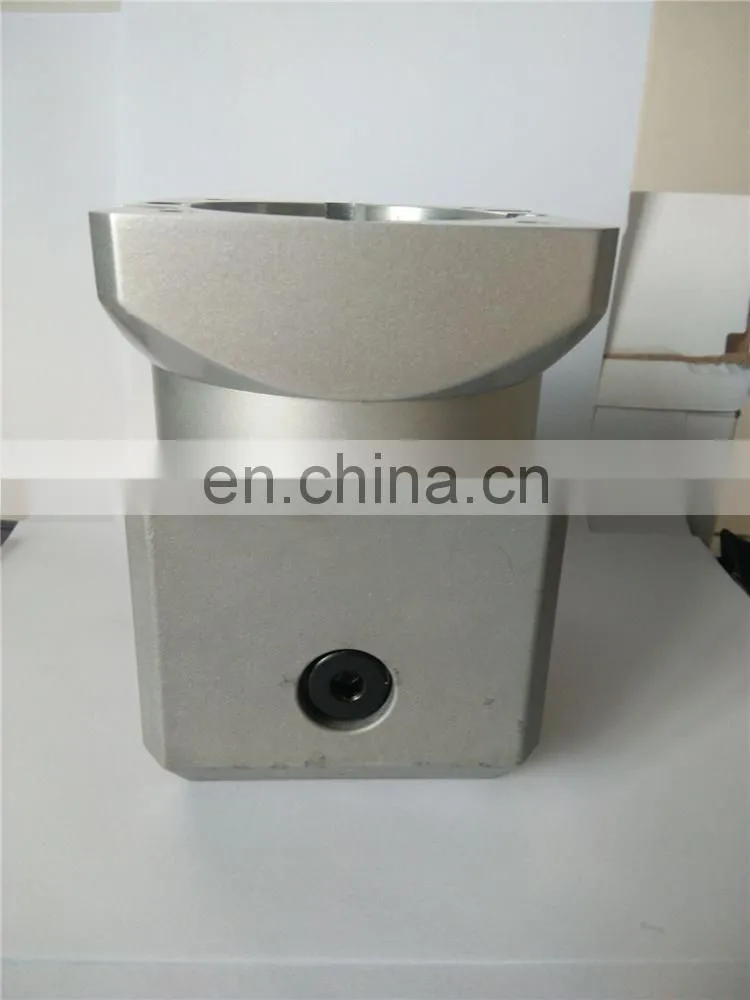

Products Photos
FAQ
1. Factory or trader?
We are factory, the source of the supply chain.
2.hub motor deliver time?
- Sample: 5 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
