Help CenterPLE60-3K Flange Size 60mm Mini Planetary Gearbox Speed Reducer
Related Products
-
High Ratio PLE80 80mm Planetary Gearbox ReducerUS$ 199 - 199MOQ: 1 Piece -
High Reduction Ratio Planetary Gearbox BodyUS$ 122 - 198MOQ: 1 Piece
-
Planetary Speed Reducer Gearbox PLE60/PLE40 Gear Ratio 3: 1US$ 99 - 200MOQ: 1 Piece
-
Planetary Gear Box For AC Servo Motor PLE 60 Ratio 5:1 Industrial Speed Reducer For SGM7G--13AFA61US$ 73 - 75MOQ: 1 Pack
-
15 / 16 / 20 / 25 to 1 Ratio PLE40 40mm Planetary GearboxUS$ 89 - 198MOQ: 1 Piece
Product description
Planetary Gearbox for Stepper Motor & Servo Motor:
Our New invent heavy-duty double support structure, carrying capacity & overload capacity has been doubled.
It's easy to install and same size with the mainstream of Taiwan, could directly replace PHT/VGM high-end planetary reducer.
This spur planetary gearbox is used for servo motor and related device which need to redce speed or enlarge torque! Our spur planetary gearboxes external diameter from 40 to 190, gear ratio from 3 to 1000! It has high precision and are widely used with servo motor such like Panasonnic, Mitsubishi, Omran, Teco...
| Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
| Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
| Stage | Single stage | Two stage | Three stage |
| Ratio | 3:1, 4:1, 5:1, 7:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
| Rated input speed (rpm) | 3500 | 3500 | 3500 |
| Max input speed (rpm) | 6000 | 6000 | 6000 |
| Efficiency (%) | 96 | 94 | 90 |
| Lowest backlash (arcmin) | 3 | 6 | 8 |
| Niose (dB) | ≤62 | ≤62 | ≤62 |
| Life (h) | 30000 | ||
| Lubrication | Lifetime lubrication | ||
| Level of protection | IP65 | ||

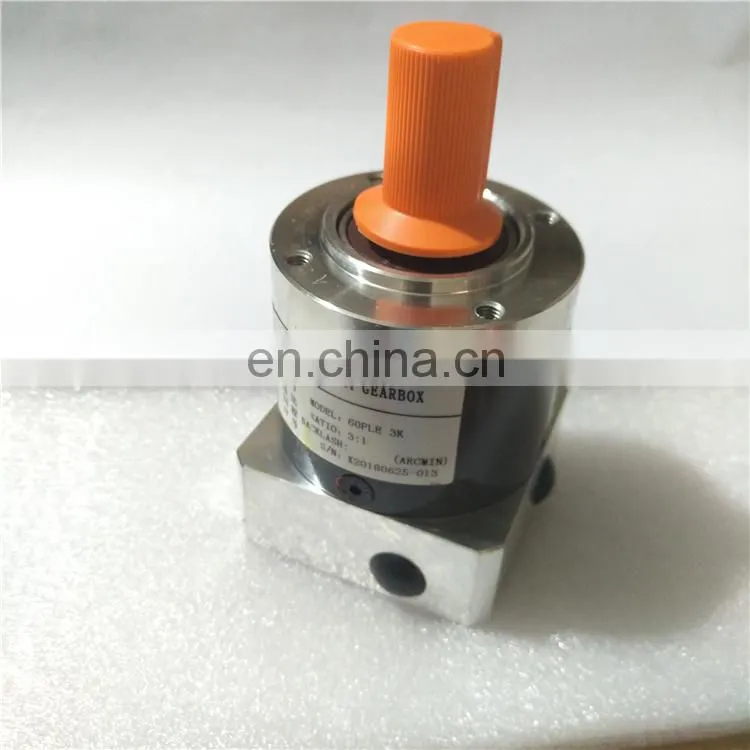

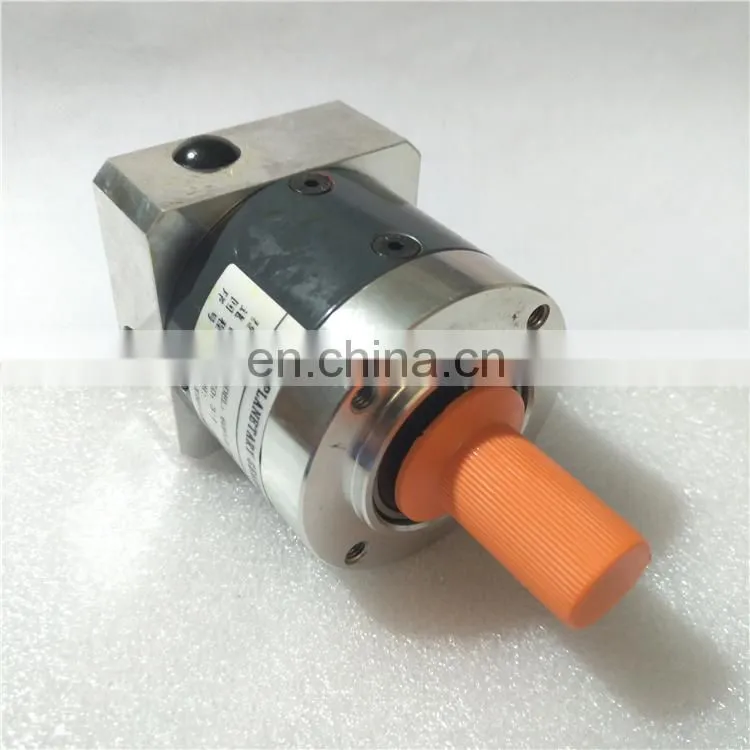

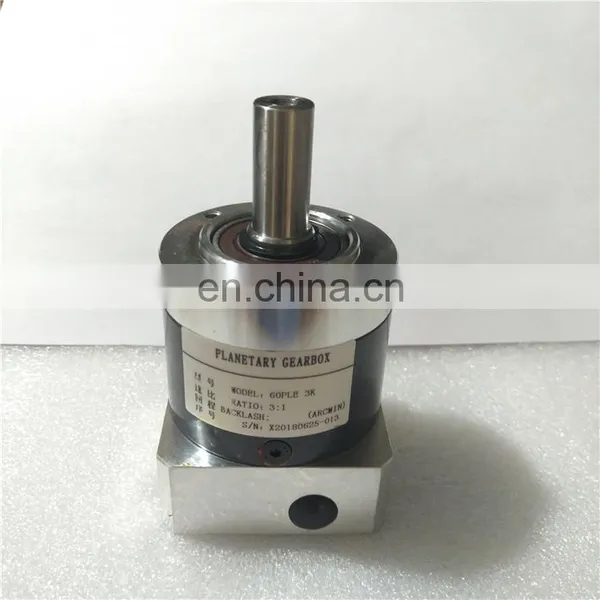

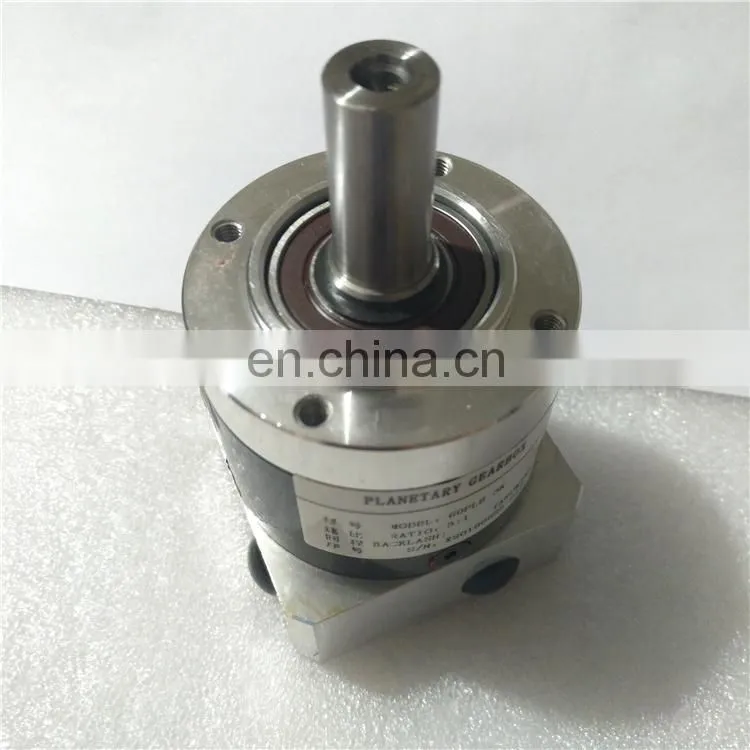

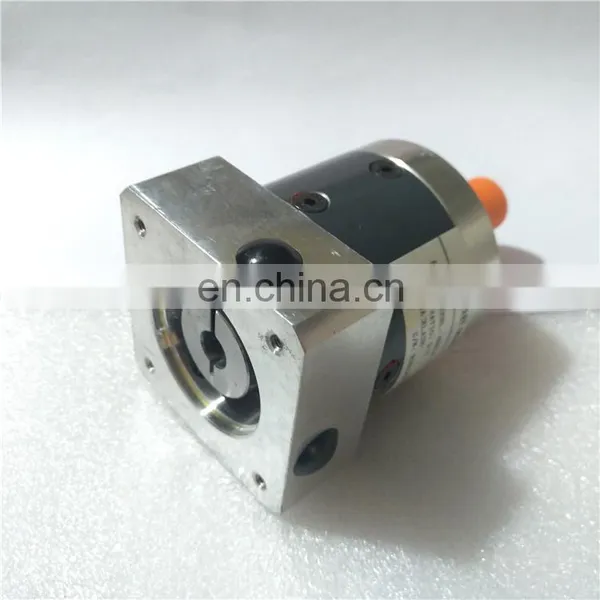

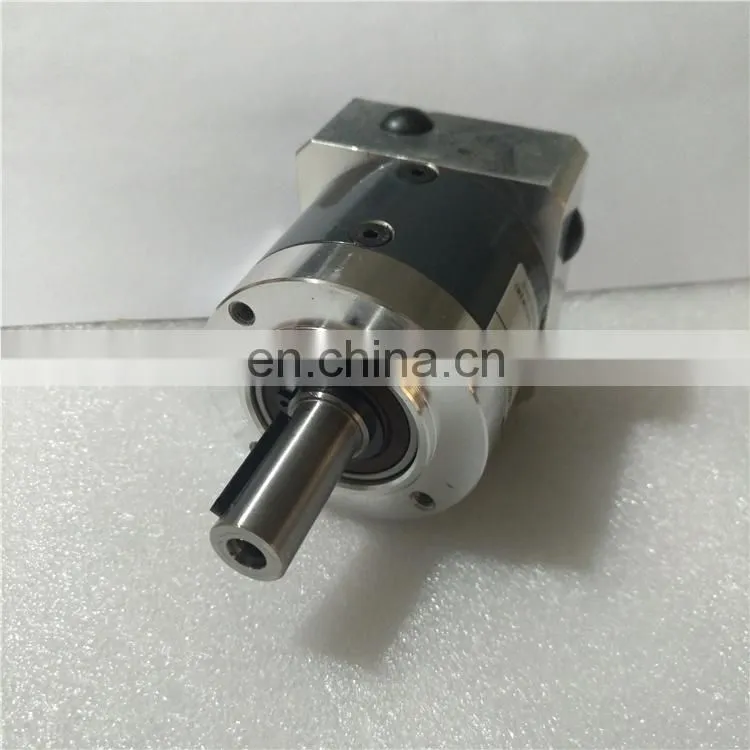

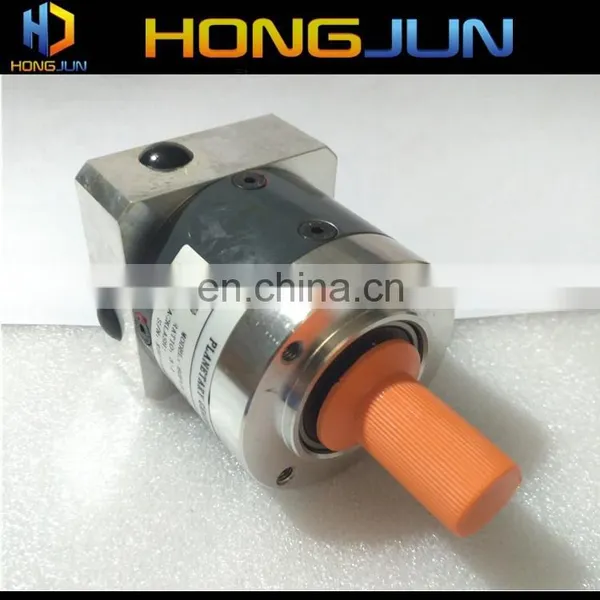

Product Pictures
FAQ
1. Factory or trader?
We are factory, the source of the suplly chain.
2. Delivery lead time?
- Sample: 5 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, and low rotor interia.
* Self Protection system avoid damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
