Home > Industrial Equipment & Components > Power Transmission Parts > Speed Reducer > Nema17 High Precision High Torque 50W Servo Stepper Motor Speed Reducer

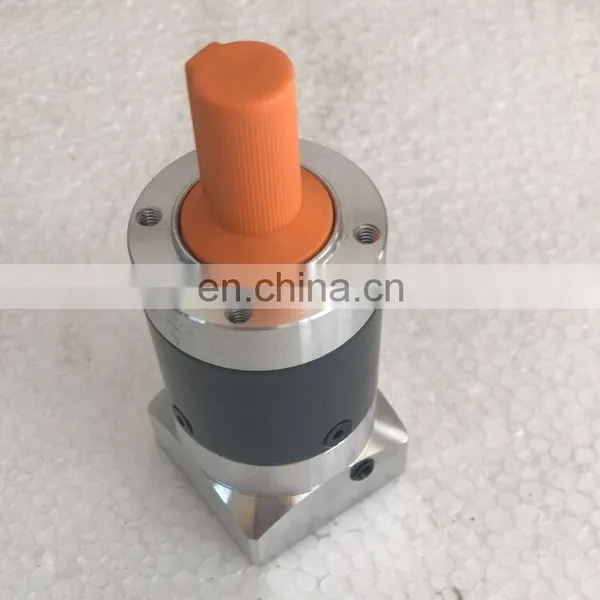

Nema17 High Precision High Torque 50W Servo Stepper Motor Speed Reducer
US$ 72 - 72
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HJST
Place of Origin:
Sichuan, China
Output Speed:
75rpm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Nema 23 Mini Planetary Gearbox for Servo MotorUS$ 75 - 200MOQ: 1 Piece -
China Hot Sell Right Angle Gear Box Small Planetary Reducer Gear Ration: 3-1000 Flange Size: 60-160mmUS$ 200 - 200MOQ: 1 Piece
-
PLE60-3K Flange Size 60mm Mini Planetary Gearbox Speed ReducerUS$ 77 - 77MOQ: 1 Piece
-
High Ratio PLE80 80mm Planetary Gearbox ReducerUS$ 199 - 199MOQ: 1 Piece
-
High Reduction Ratio Planetary Gearbox BodyUS$ 122 - 198MOQ: 1 Piece
Brand Name
HJST
Place of Origin
Sichuan, China
Output Speed
75rpm
Input Speed
3000rpm
Output Torque
6N.m
Gearing Arrangement
Spur

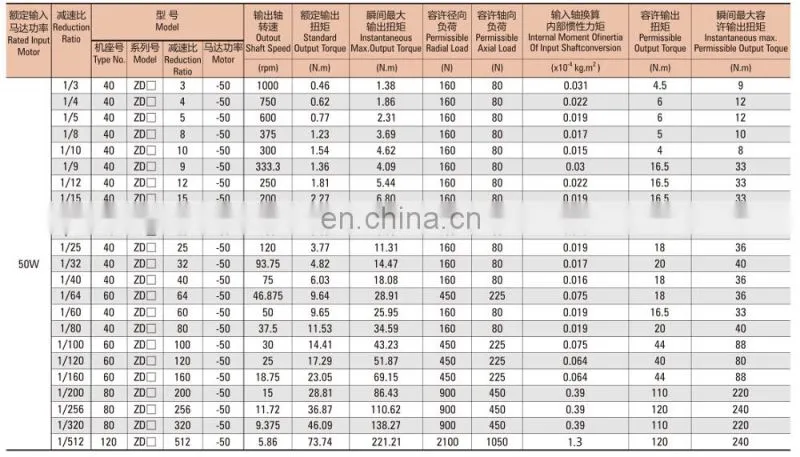

Performance Table (when input speed is 3000rpm)

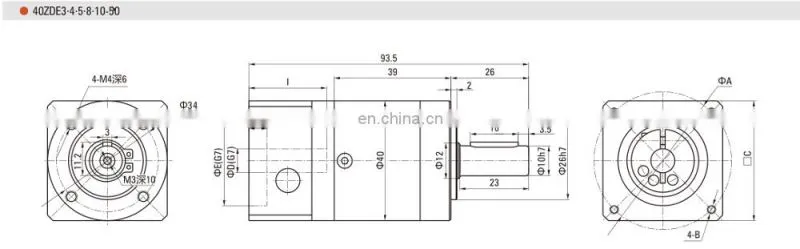

Dimensional drawing
when frame size is 40mm, gear ratio is 3 4 5 8 10.
we can also provide other size and ratio gearbox, please contact us for more infomation
1)Series: PLE, PLF, PLS, WPL, WPLF, ZB, ZE, ZDF, ZDE, ZDS, ZDWF, ZDR, ZDG
2) Gearbox outline dimension: 40, 60, 80, 120, 160
3) Reduction ratio: 1~512
4) Lubrication: Lifetime lubrication
5) Input speed: 3000- 6000rpm
6) Life: 30, 000 hours
7) Backiash: Stage 1: <3 (arcmin)
Stage 2: <6 (arcmin)
Stage 3: <8 (arcmin)
8) Operating temperature: -25C to +90C
