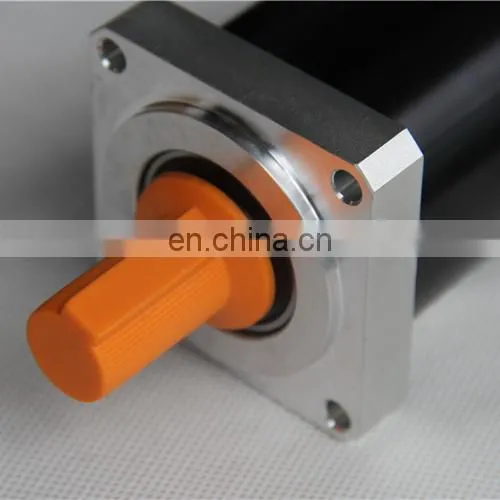

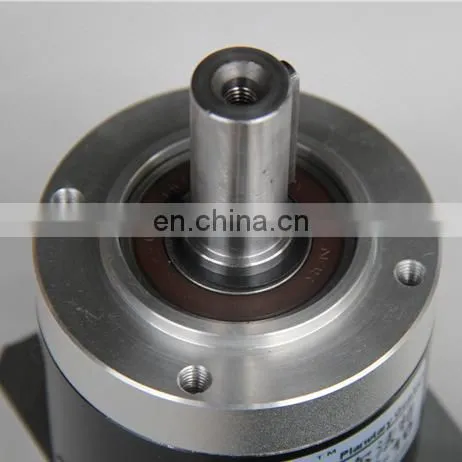

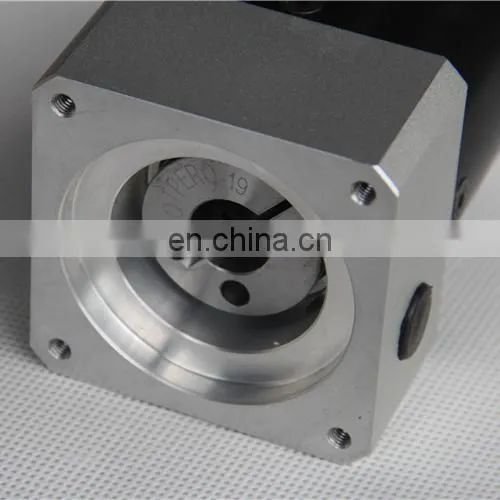

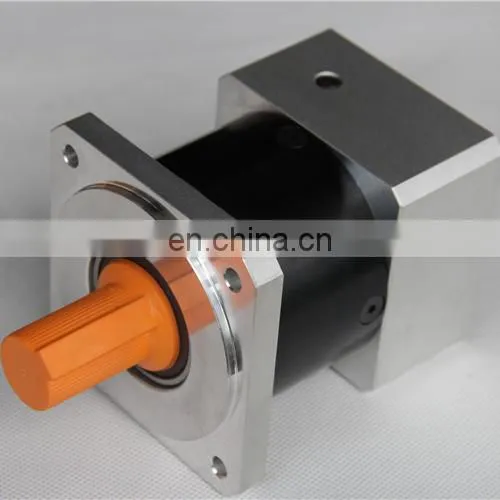

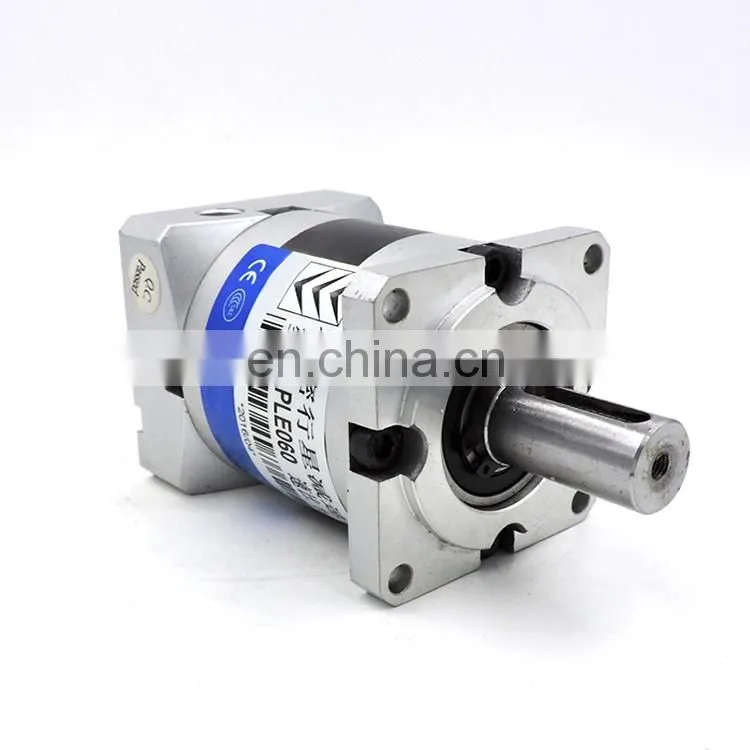

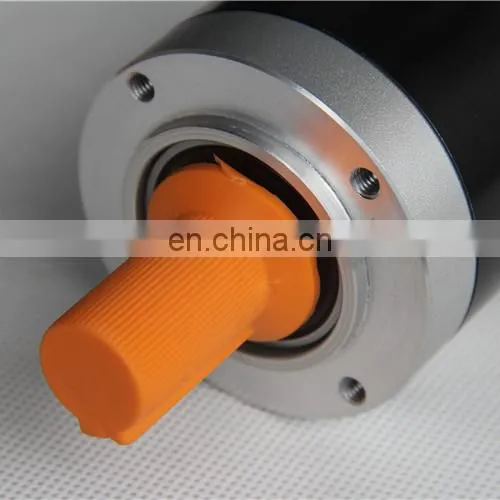

Help CenterNema 23 Mini Planetary Gearbox for Servo Motor
Related Products
-
China Hot Sell Right Angle Gear Box Small Planetary Reducer Gear Ration: 3-1000 Flange Size: 60-160mmUS$ 200 - 200MOQ: 1 Piece -
PLE60-3K Flange Size 60mm Mini Planetary Gearbox Speed ReducerUS$ 77 - 77MOQ: 1 Piece
-
High Ratio PLE80 80mm Planetary Gearbox ReducerUS$ 199 - 199MOQ: 1 Piece
-
High Reduction Ratio Planetary Gearbox BodyUS$ 122 - 198MOQ: 1 Piece
-
Planetary Speed Reducer Gearbox PLE60/PLE40 Gear Ratio 3: 1US$ 99 - 200MOQ: 1 Piece
Planetary Gearbox for Stepper Motor & Servo Motor:
This is a spur planetary gearbox which used for stepper motor and servo motor! Our spur planetary gearboxes external diameter from 40 to 120, gear ratio from 3 to 512! It has high precision and are widely used with servo motor such like Panaso nnic, Mitsubishi, Omran, Teco...
1)Series: PLE, PLF, PLS, WPL, WPLF, ZB, ZE, ZDF, ZDE, ZDS, ZDWF, ZDR, ZDG
2) Gearbox outline dimension: 40, 60, 80, 120, 160
3) Reduction ratio: 1~512
4) Lubrication: Lifetime lubrication
5) Input speed: 3000- 6000rpm
6) Life: 30, 000 hours
7) Backiash: Stage 1: <3 (arcmin)
Stage 2: <6 (arcmin)
Stage 3: <8 (arcmin)
8) Operating temperature: -25C to +90C
| Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
| Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
| Stage | Single stage | Two stage | Three stage |
| Ratio | 3:1, 4:1, 5:1, 7:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
| Rated input speed (rpm) | 3500 | 3500 | 3500 |
| Max input speed (rpm) | 6000 | 6000 | 6000 |
| Efficiency (%) | 96 | 94 | 90 |
| Lowest backlash (arcmin) | 3 | 6 | 8 |
| Niose (dB) | ≤62 | ≤62 | ≤62 |
| Life (h) | 30000 | ||
| Lubrication | Lifetime lubrication | ||
| Level of protection | IP65 | ||
-----------------------------------------------------------------------------------------------------------------------------------------------------
Packing Method:
1: MOQ: 1 pcs minimum order
2: Packing: 1 pcs per box or according to your requirements
a). Carton Packing;
b). Wooden Packing;
c). Customized Packing.
Shipping:
* We support TNT, DHL, UPS, FedEX, EMS and your own Shipping Forwarder.
* 3 days by AIR & 30-45 days by SEA. (Europe and North America)
As one of the leading manufacturer for gear motor and precision planetary gearbox, Hongjun Science and Technology Co., Ltd. works in this field for more than 15 years! There are 1000 workers in our factory including 40 technicians! We have the biggest market share in domestic China market and sales qty only for AC gear motor is more than 1.5 million pcs in 2015!
1. Factory or trader?
We are factory, the source of the suplly chain.
2. Delivery lead time?
- Sample: 3 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, Low starting voltage and low rotor interia.
* Self Protection system avoid damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
----------------------------------------------------------------------------------------------------------------------------------------------------
