Help CenterChina Hot Sell Right Angle Gear Box Small Planetary Reducer Gear Ration: 3-1000 Flange Size: 60-160mm
Related Products
-
PLE60-3K Flange Size 60mm Mini Planetary Gearbox Speed ReducerUS$ 77 - 77MOQ: 1 Piece -
High Ratio PLE80 80mm Planetary Gearbox ReducerUS$ 199 - 199MOQ: 1 Piece
-
High Reduction Ratio Planetary Gearbox BodyUS$ 122 - 198MOQ: 1 Piece
-
Planetary Speed Reducer Gearbox PLE60/PLE40 Gear Ratio 3: 1US$ 99 - 200MOQ: 1 Piece
-
Planetary Gear Box For AC Servo Motor PLE 60 Ratio 5:1 Industrial Speed Reducer For SGM7G--13AFA61US$ 73 - 75MOQ: 1 Pack
1. it is perfectly suitable for many automatic controlled machine, like cnc machine, washing machine, robot arm and cutting machine
2. its gear ratio is 3:1-1000:1 with high torque which will instantly reduce the motor speed when it is connected with power and servor motor
3. this mini gear box is in second stage and first stage and third stage is availble. many models we also can provide
4. it is compatible for many branded servor motors, such as for panasonic, for mitsubishi, for Delta, for Teco servo motors
5.it has NSK/FAG shaft which is durable and can be used for a long time
| Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
| Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
| Stage | Single stage | Two stage | Three stage |
| Ratio | 3:1, 4:1, 5:1, 7:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
| Rated input speed (rpm) | 3500 | 3500 | 3500 |
| Max input speed (rpm) | 6000 | 6000 | 6000 |
| Efficiency (%) | 96 | 94 | 90 |
| Lowest backlash (arcmin) | 3 | 6 | 8 |
| Niose (dB) | ≤62 | ≤62 | ≤62 |
| Life (h) | 30000 | ||
| Lubrication | Lifetime lubrication | ||
| Level of protection | IP65 | ||

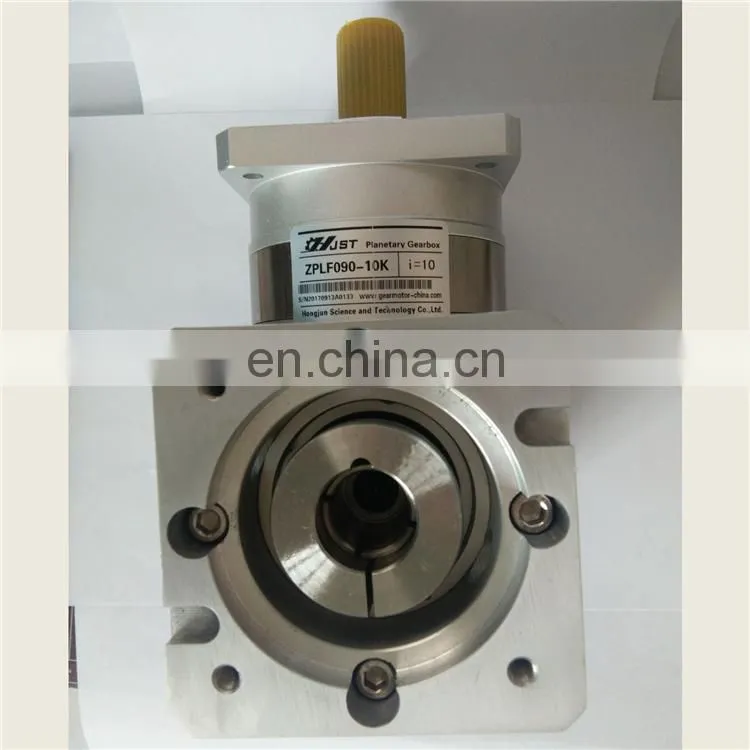

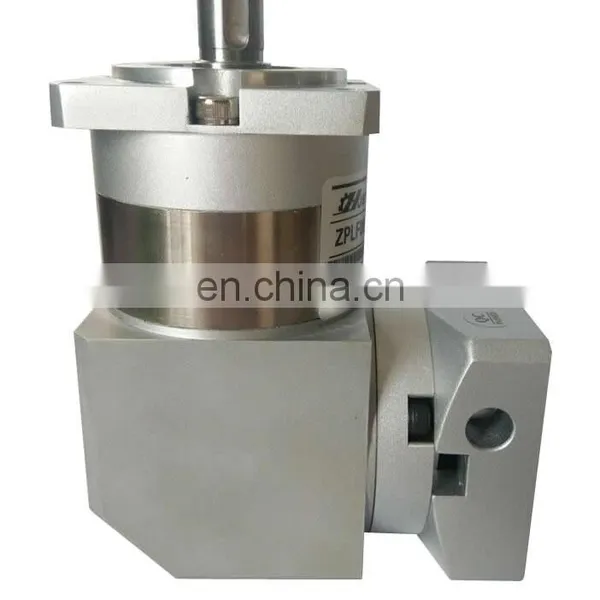

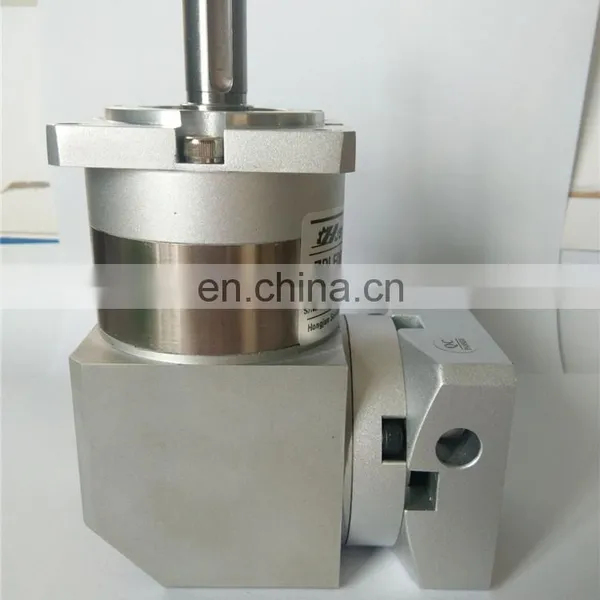

Products Photos
1. Factory or trader?
We are factory, the source of the supply chain.
2.hub motor deliver time?
- Sample: 5 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
