Help CenterPLF60-32K Mini Planetary Gearbox CNC Machine Speed Reducer
Related Products
-
Nema 32 Planetary Gearbox PLF 60 10:1 Gear Ratio Speed Reducer For Wind Water TurbineUS$ 120 - 120MOQ: 2 Pieces -
Gear Ratio 100 High Precision Right Angle Planetary Gearbox for Die-cutting MachineUS$ 77 - 200MOQ: 1 Piece
-
Nema17 High Precision High Torque 50W Servo Stepper Motor Speed ReducerUS$ 72 - 72MOQ: 1 Piece
-
Nema 23 Mini Planetary Gearbox for Servo MotorUS$ 75 - 200MOQ: 1 Piece
-
China Hot Sell Right Angle Gear Box Small Planetary Reducer Gear Ration: 3-1000 Flange Size: 60-160mmUS$ 200 - 200MOQ: 1 Piece
Product description
Planetary Gearbox :
Our New invent heavy-duty double support structure, carrying capacity & overload capacity has been doubled.
It's easy to install and same size with the mainstream of Taiwan, could directly replace PHT/VGM high-end planetary reducer.
This spur planetary gearbox is used for servo motor and related device which need to redce speed or enlarge torque! Our spur planetary gearboxes external diameter from 40 to 190, gear ratio from 3 to 1000! It has high precision and are widely used with servo motor such like Panasonnic, Mitsubishi, Omran, Teco...
| Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
| Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
| Stage | Single stage | Two stage | Three stage |
| Ratio | 3:1, 4:1, 5:1, 7:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
| Rated input speed (rpm) | 3500 | 3500 | 3500 |
| Max input speed (rpm) | 6000 | 6000 | 6000 |
| Efficiency (%) | 96 | 94 | 90 |
| Lowest backlash (arcmin) | 3 | 6 | 8 |
| Niose (dB) | ≤62 | ≤62 | ≤62 |
| Life (h) | 30000 | ||
| Lubrication | Lifetime lubrication | ||
| Level of protection | IP65 | ||

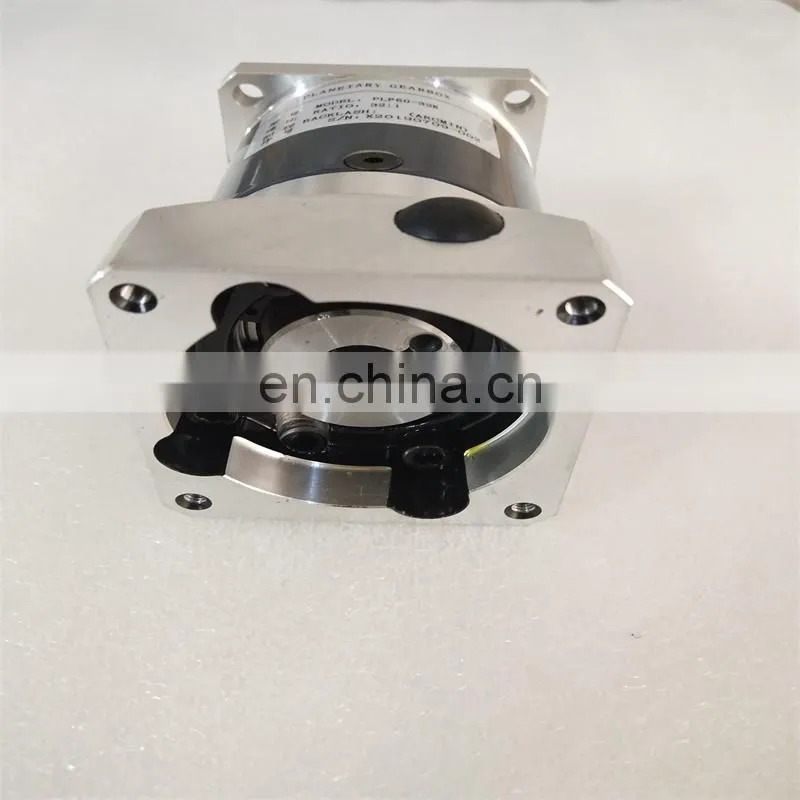

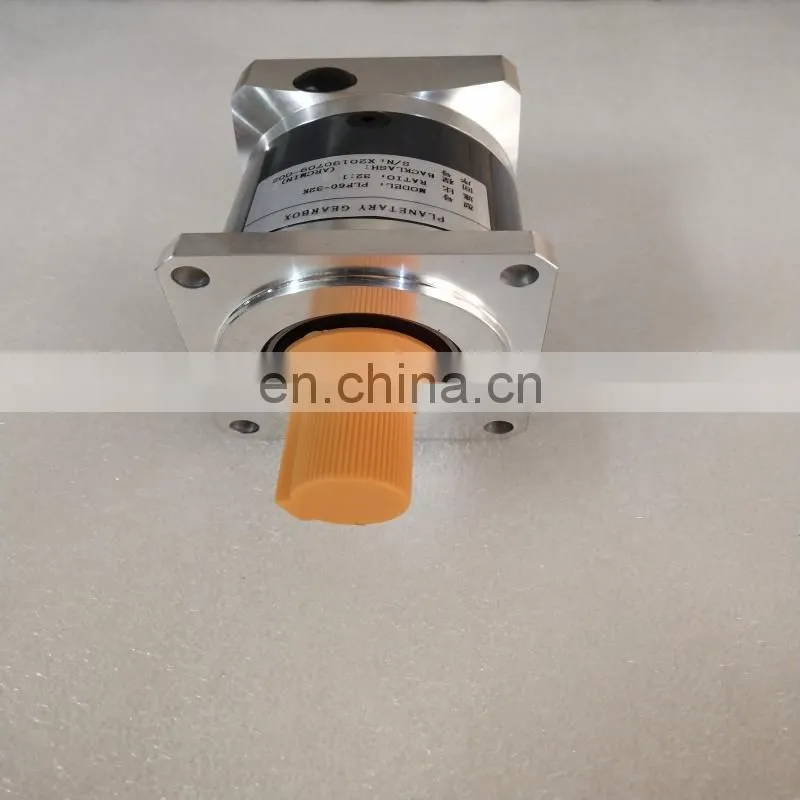

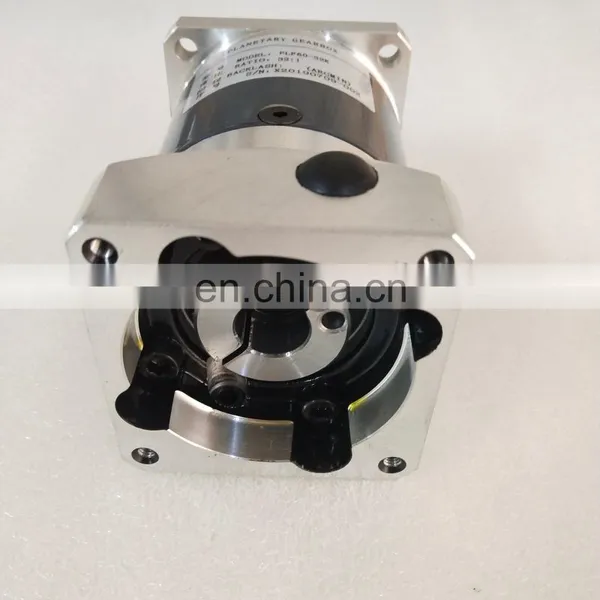

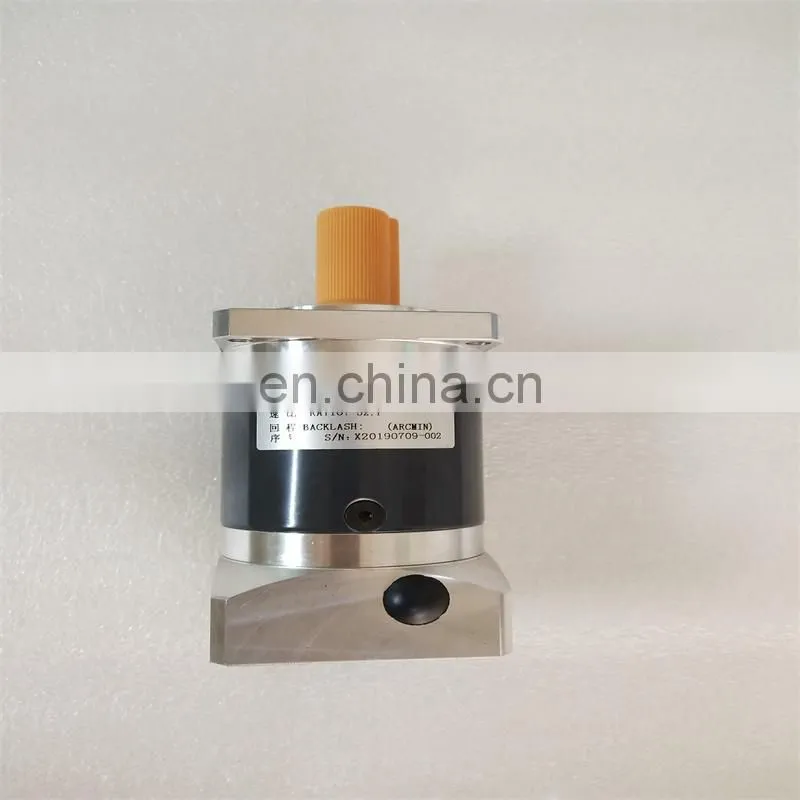

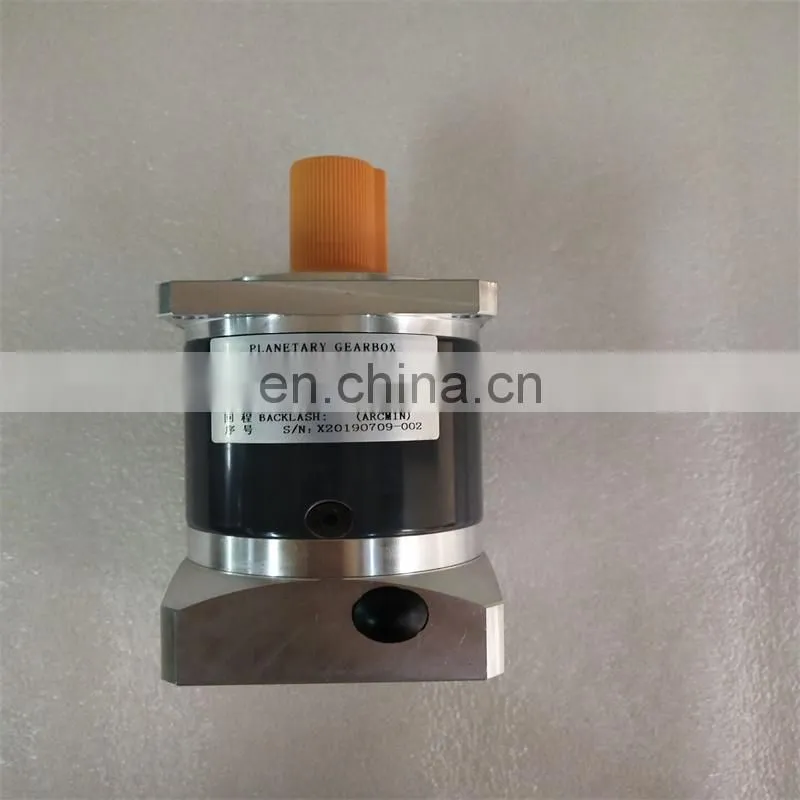

Product Pictures
FAQ
1. Factory or trader?
We are factory, the source of the suplly chain.
2. Delivery lead time?
- Sample: 5 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, and low rotor interia.
* Self Protection system avoid damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
