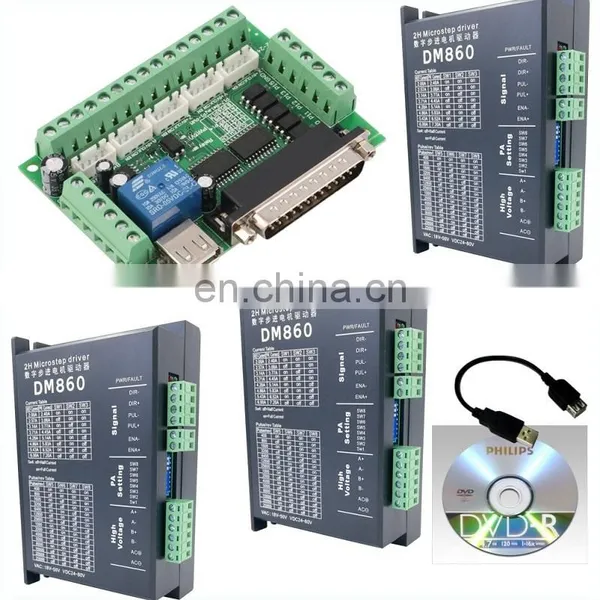

2 Phase 32-Bit DSP Digital Stepper Drive 24 - 80 VDC 2.4 - 7.2A Leadshine Stepper Motor Drive DM860 photo-1
2 Phase 32-Bit DSP Digital Stepper Drive 24 - 80 VDC 2.4 - 7.2A Leadshine Stepper Motor Drive DM860 photo-2
US$ 40 - 46 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Leadshine
Place of Origin:
Guangdong, China
Model Number:
DM860
Contact Supplier Request Quote Chat Now
Sichuan Hongjun Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Leadshine
Place of Origin Guangdong, China
Model Number DM860
Output Current 2.4 - 7.2A

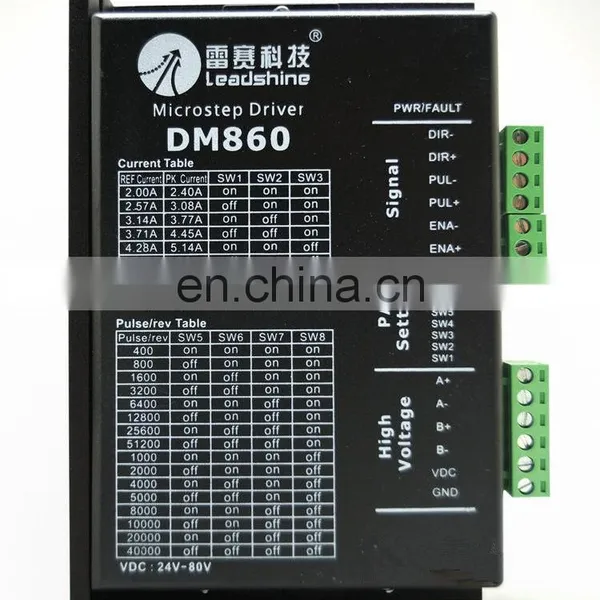

leadshine stepper motor drive DM860

Features

DM860 stepper drives adopting Leadshine latest advanced stepper control technology. Those stepper drives are highly reliable with good performance and highly competitive cost. MA860C stepper drives feature advanced DSP microstepping and anti-resonance technology for optimized torque, smooth motion, extra low noise, and very low motor heating. The feature of stepper motor auto identification & configuration will allow the driven stepper motors always running at the optimized performance.

MA860C stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switch configuration.
MA860C stepper drives are ideal for step & direction applications requiring step & direction 2 or 4 phase stepper motor control.

  • Can drive 4-wire, 8-wire two-phase stepper motor

  • Voltage input range: 24~80 VDC

  • Maximum current: 7.2A, resolution: 0.1A

  • Subdivision range: 400~25600ppr

  • Signal input: differential / single-ended, pulse / direction or double pulse

  • Impulse response frequency: 200KHz

  • Built-in micro-segment

  • Power-on parameter auto-tuning function

  • Precision current control greatly reduces motor heating

  • The current is automatically halved at rest

  • Optically isolated signal input, strong anti-interference ability

  • With overvoltage, overcurrent and other protection functions



Parameters

Phase: 2

Control Mode: Step & Dir
Max Input Frequency: 200Khz
Input Voltage Range: 20 - 80 VDC
Suggested Power Supply Voltage Range: 24-72 VDC
Output Current: 0.50 - 5.60 A
# of DIP Switch Resolution Configurations: 16
DIP Switch Resolution Setings: 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
# of DIP Switch Current Configurations: 8
DIP Switch Current Configurations: 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Logic Current Range: 7-16mA      (10mA typical)
Logic Voltage Range: 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low
Pulse enabled at: Rising edge
Idle Current Percent: 50 %
# of Digital Inputs: 3
Step Width: 2,500 ns
Minimal Direction Setup Time: 5,000 ns
Protection: Over current; over voltage; phase error
Isolation Resistance: 500M Ohm
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temporature: 0-50°C
Humidity: 40–95% RH
Operating Temporature: 0-70°C
Vibration: 5.9 m/s2 Max
Storage Temporature: -20-65°C
Specification: 4.65 X 2.97 X 1.30 Inches
Weight: 0.60 lb
