Home > Electrical & Electronics > Inverter > Power Inverter > Leadshine 2 Phase Analog Stepper Driver DM442
US$ 30 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Leadshine
Place of Origin:
Guangdong, China
Model Number:
DM442
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.2 Degree Nema 23 3-phase Stepper MotorUS$ 8 - 15MOQ: 1 Piece -
Leadshine Nema 23 Easy Servo Motor and Driver 573HBM10-100+HBS507US$ 120 - 140MOQ: 1 Acre
-
NEMA 34 CNC Stepper Motor Double Shaft for CNC Engraving Machine and 3D PrinterUS$ 30 - 35MOQ: 2 Sets
-
Nema 34 Stepper Motor 8.5Nm 4 Wires Nema34 Step Motor for CNC Mill Laser Lathe RouterUS$ 45 - 50MOQ: 2 Sets
-
Nema 34 12N.m Stepper Motor and DriverUS$ 53 - 60MOQ: 2 Sets
Brand Name
Leadshine
Place of Origin
Guangdong, China
Model Number
DM442
Output Current
0.5-4.2A

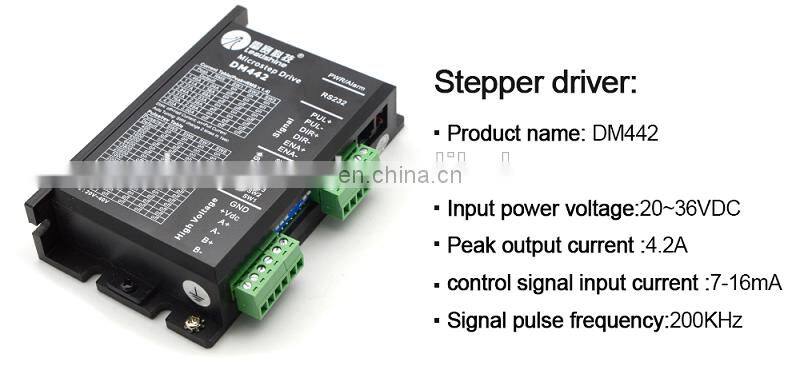

Leadshine 2 Phase Analog Stepper Driver DM442
Features
1. New 32-bit DSP technology
2. Ultra-low vibration noise
3. Built-in high segmentation
4. Automatic parameter setting function
5. Can drive 4, 6 and 8 wire two-phase stepping motor

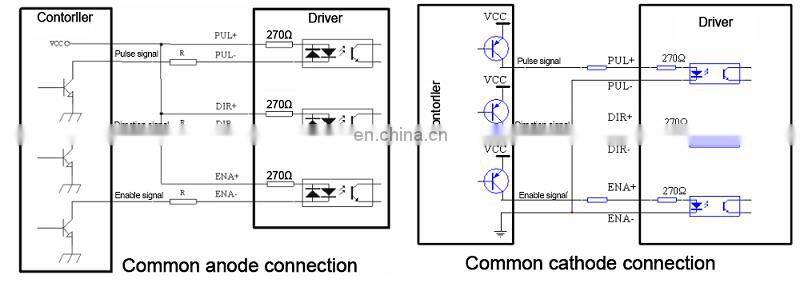

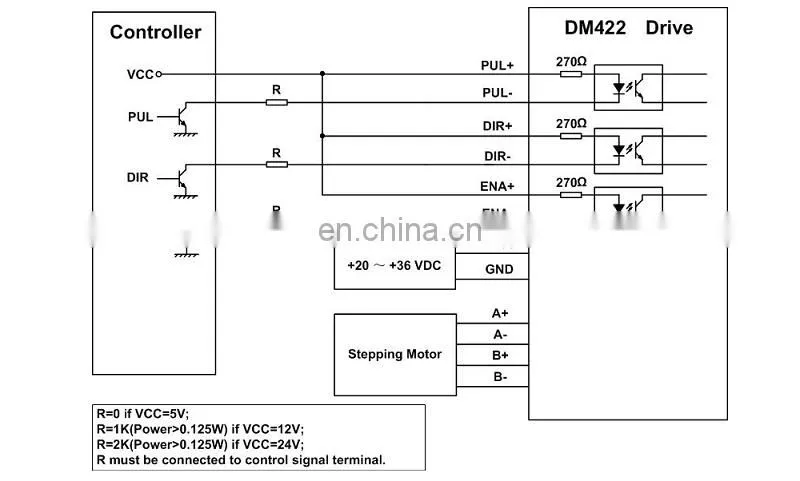

6. Optical isolation difference signal input
7. The impulse response frequency can reach up to 300KHz
8. The current setting is convenient, with A maximum capacity of 4.2A and A resolution of 0.1A
9. The subdivision setting range is 1-512
10. Precision current control greatly reduces the heating of the motor
11. When at rest, the current is automatically cut in half

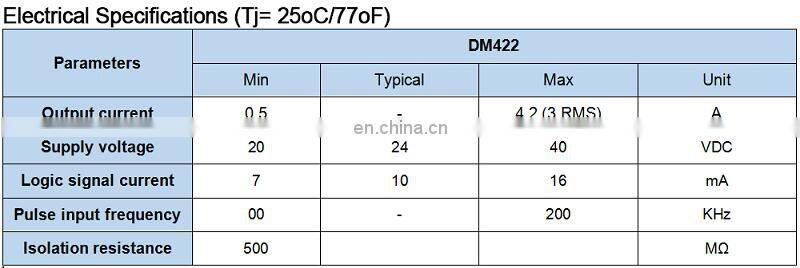

Parameters
The DM442 is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives on the markets. Its unique features make the DM442 an ideal solution for applications that require low-speed smoothness.
Compared to the DM432C, DM442 can output more current. What’s more, owing to its higher performance DSP, driven motors can achieve much higher speed than that of the DM432C, offering servo-like performances.
Pb-Free or CE/UL approved versions optional. Contact Leadshine or see more information in its hardware manual please.

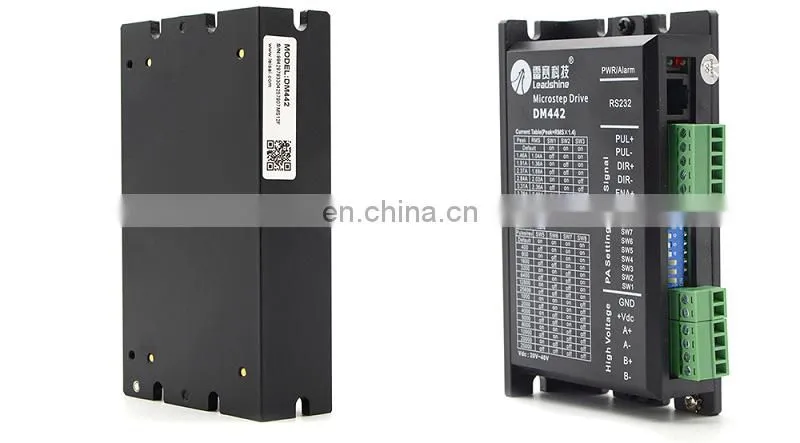

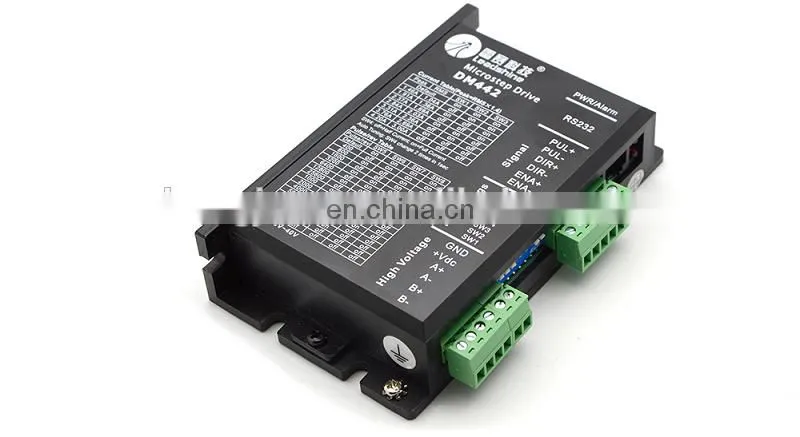

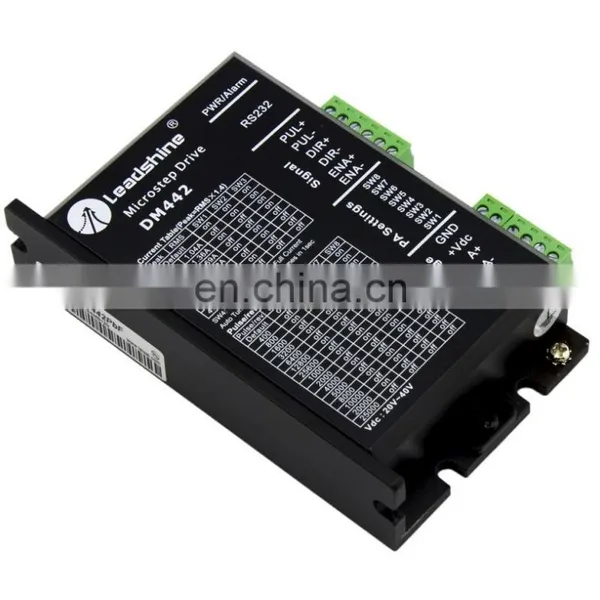

Detailed Images

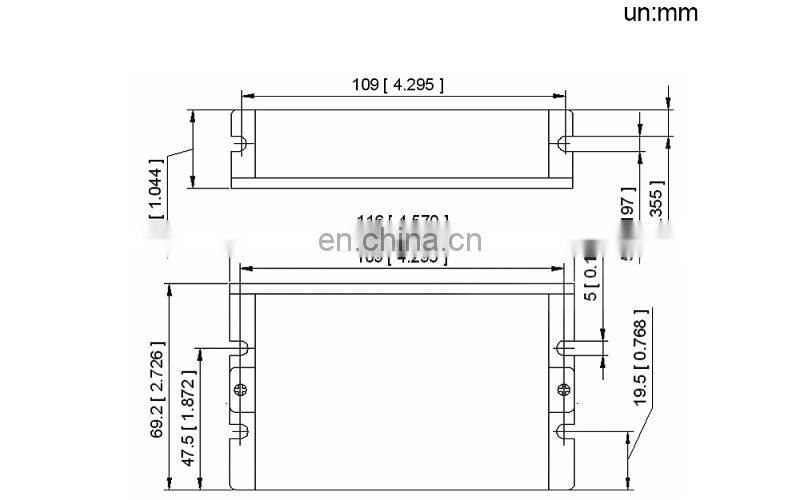

Drawing
