20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556

Sichuan Hongjun Science And Technology Co., Ltd.
20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556 thumbnail-1
20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556 thumbnail-2
20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556 thumbnail-3
20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556 photo-1

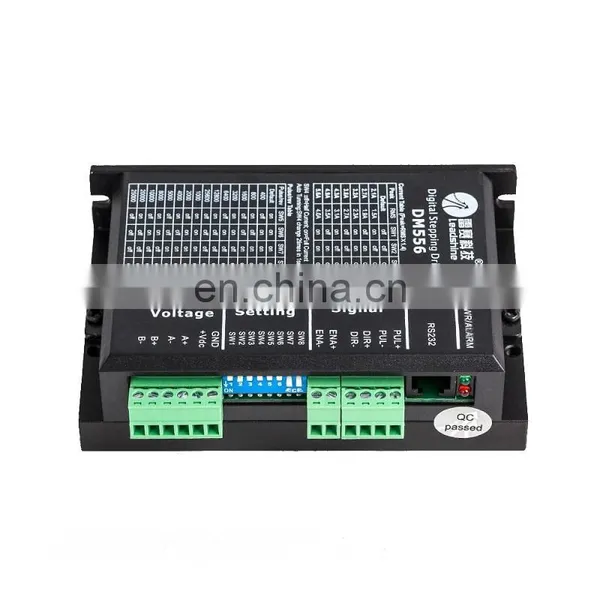

20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556 photo-2

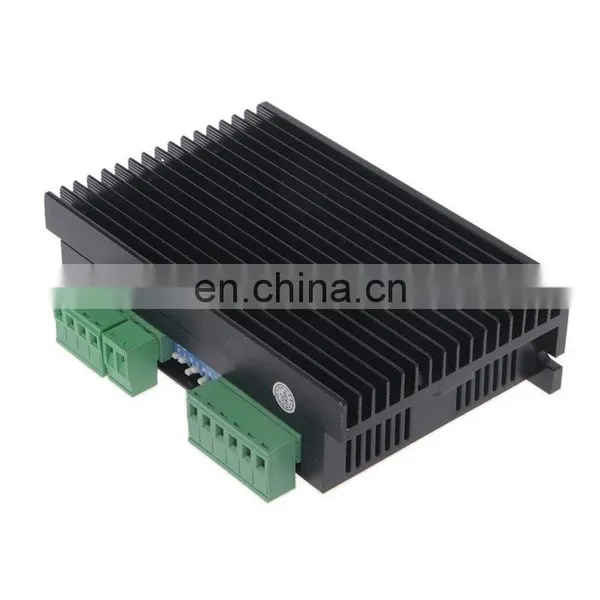

20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556 photo-3
US$ 40 - 46 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Leadshine
Place of Origin:
Guangdong, China
Model Number:
DM442
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Leadshine
Place of Origin Guangdong, China
Model Number DM442
Output Current 0.5-5.6A

20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556

Features

DM556 is a versatility fully digital stepping drive based on a DSP with advanced control algorithm.

It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability.

The Self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement

than most of the drives in the markets. Its unique features make the DM556 an ideal solution for
applications that require low-speed smoothness.
  • Extra-low motor noise offers excellent quietness
  • Anti-Resonance, provides optimum torque and nulls mid-range instability
  • Self-test and Auto-configuration technology, offers optimum responses with different motors
  • Microstep resolutions programmable, from full-step to 102,400 steps/rev
  • Supply voltage up to +50 VDC
  • Output current programmable, from 0.5A to 5.6A
  • Pulse input frequency up to 200 KHz
  • Automatic idle-current reduction
  • Supports PUL/DIR and CW/CCW modes



Parameters

Parameters

DM556

Min

Typical

Max

Unit

Output Current

0.5

-

5.6 (4.0 RMS)

A

Supply Voltage

20VAC

-

50VAC

V

Logic Signal Current

7

10

16

mA

Pulse Input Frequency

0

-

200

kHz

Step Revolution

400



25600

Pulse/Rev

Isolation Resistance

500

MΩ

Suitable Stepper Motors

NEMA 17,23

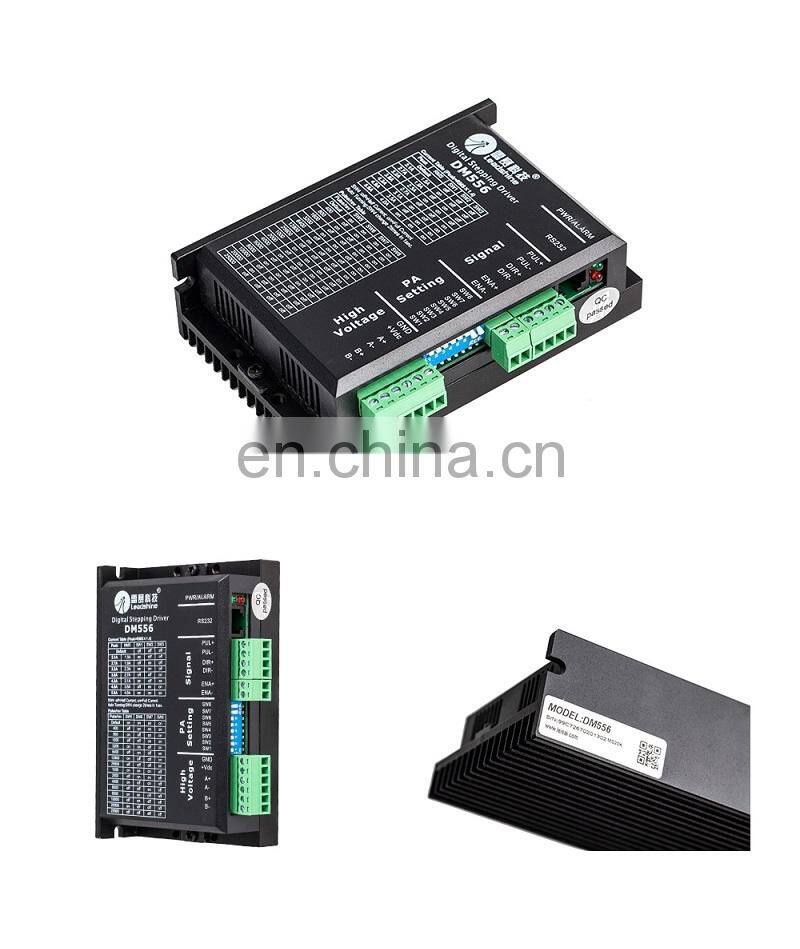

Detailed Images

 20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556

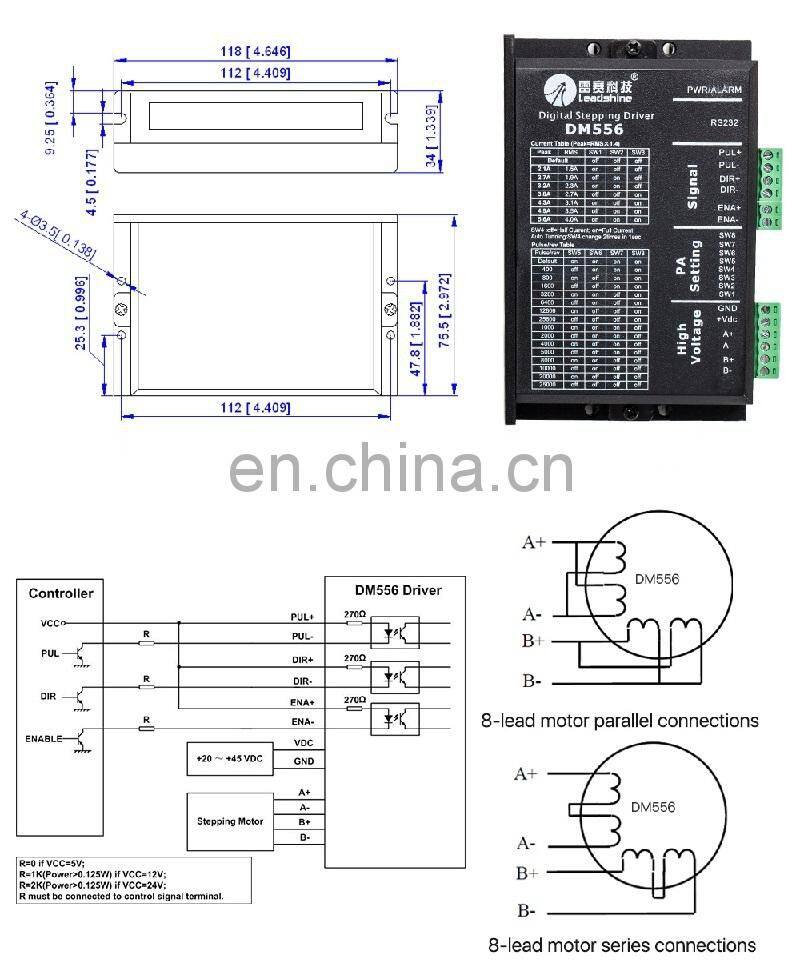

Drawing

 20-50VAC 0.5-5.6A Leadshine 2 Phase Stepper Driver DM556
