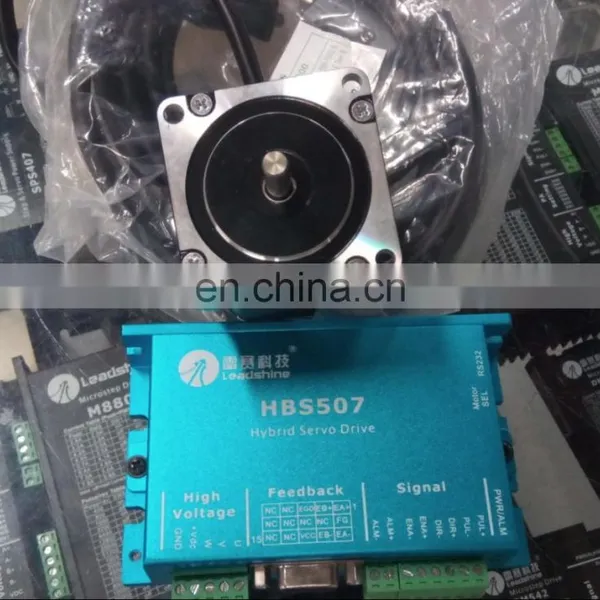

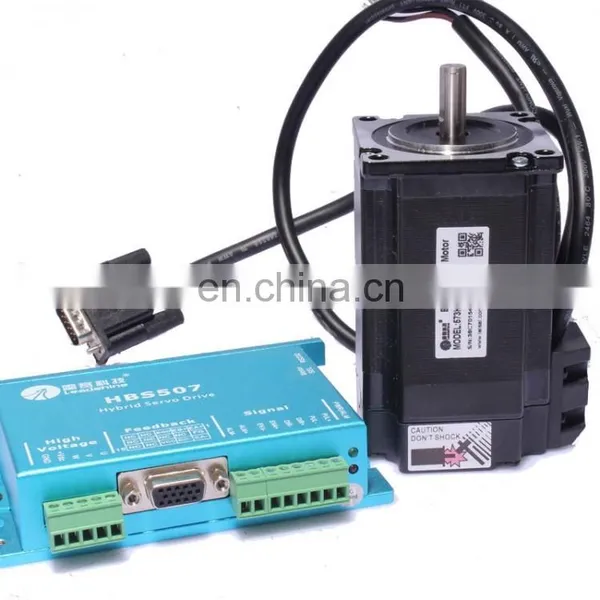

Leadshine nema 23 easy servo motor and driver 573HBM10-100+HBS507

Name: Leadshine nema 23 easy servo motor and driver 573HBM10-100+HBS507
Brand: leadshine
Availability: InStock

FOB Price

USD $120 - $140 / Acre

1 Acre(Min.Order)

Supply Ability 10000 Acre / Acres per Month
Port Any Chinese Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	leadshine		Place of Origin	Guangdong, China
Model Number	573HBM10-100+HBS507

Product Description

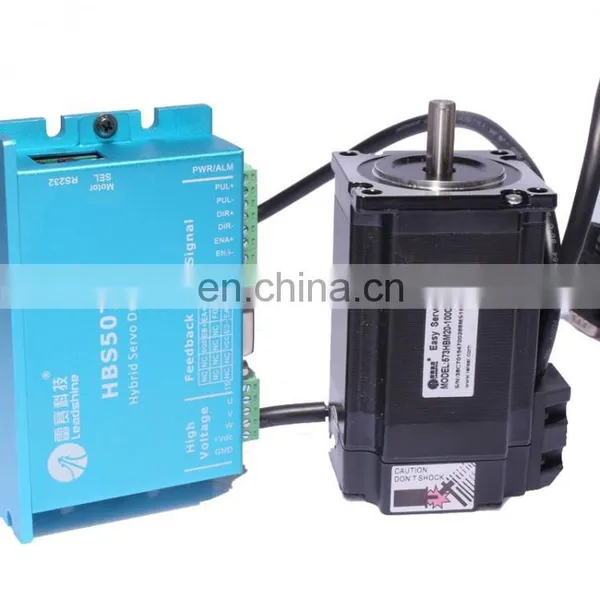

Leadshine nema 23 easy servo motor and driver 573HBM10-100+HBS507

1.Driver HBS507 Details:

Features

Step and direction control
Closed position loop for no loss of movement synchronization
Operating voltage: 20-50 VDC
Load based output current of 0.5 - 8.0 A
High torque at starting and low speed
No torque reservation
High stiffness at standstill
Significantly reduced motor heating
Smooth motor movement and extra low motor noise
Quick response, no delay and zero settling time
No loss of steps; no hunting; no overshooting
Plug-and-play and no tuning

HBS507 is one of the models in Leadshine series easy servo drives which can take 20-50 VDC input voltage and output 0.5 - 8.0 A continuous load-based current. It is capable of driving NEMA 17, 23, 24 and 34 (1-2 stacks) easy servo motors (stepper motors with encoders) with the position loop closed in real time.

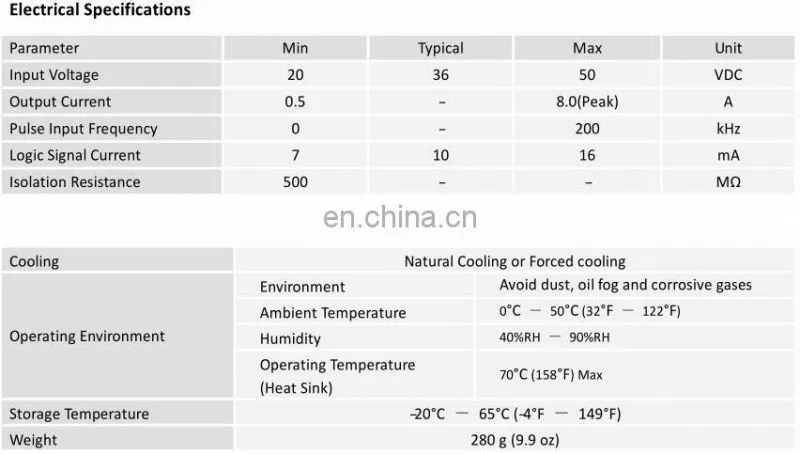

Specifications

Mechanical Specifications

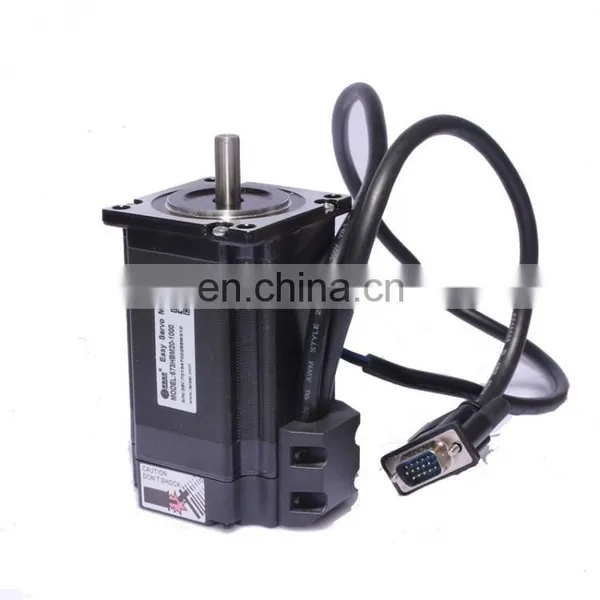

2.Motor 573HBM10-1000 Details:

Features

3 phase
NEMA 23 frame size
0.9 Nm (128 oz-in) holding torque
Speed range: 0 - 3,000 RPM
Integrated 1,000 - line incremental encoder
Smooth movement
Low motor heating and noise

573HBM10-1000 is 0.9 Nm (128 oz-in) 3 phase NEMA 23 stepper motor with integrated 1,000-line incremental encoder. It is built with high quality material and can move smoothly with high precision, very low noise & heating.

Part Number

Encoder Specifications

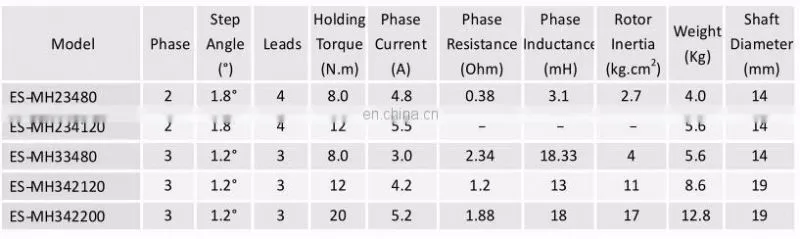

Motor Specifications

About US

SICHUAN HONGJUN SCIENCE AND TECHNOLOGY CO., LTD.

Our mainly manufacture:

1.The Power Transmission Products:

v AC Gear Motor

v DC Gear Motor

v High Precision Planetary Gearbox for Servo Motor and Stepping Motor

2. Linear Motion Products:

v Linear Brushing

v Linear Guide

v Ball Screw

v Locking Nut and Coupling

v ......

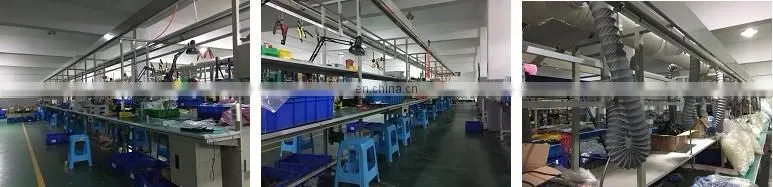

workshop

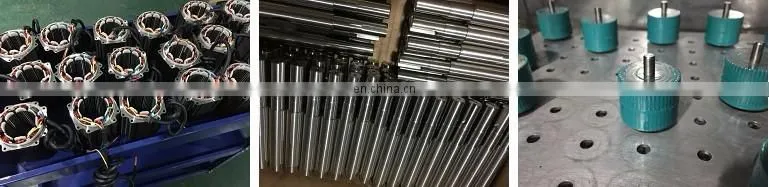

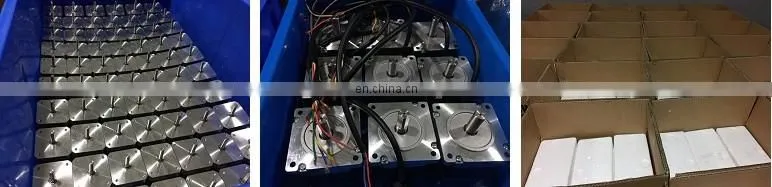

parts

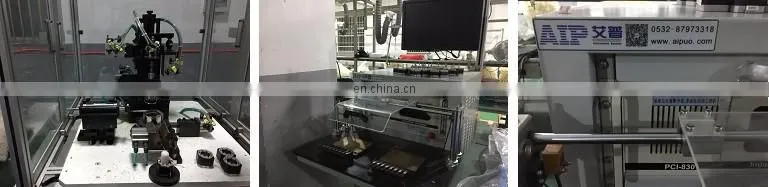

testing

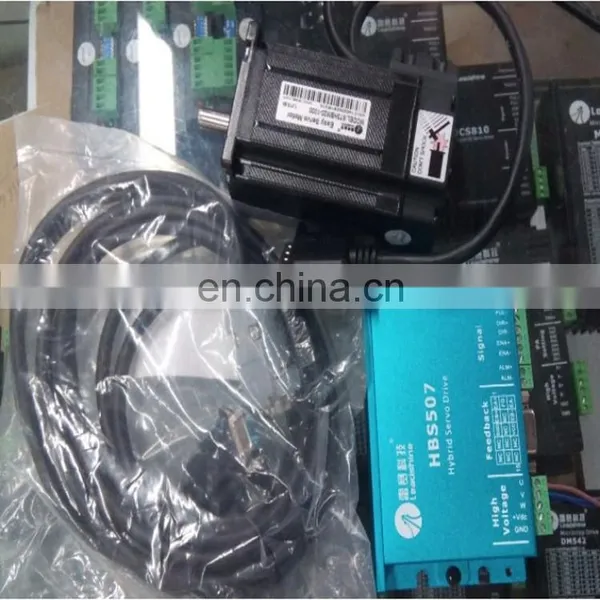

package

FAQ

More Information for Customers:

1.Q:Can I get some samples?

A:We are honored to offer you stepper motor for quality check.

2.Q:Do you have the products in stock?

A:Our products are manufactured according to your order except the normal products.

3.Q:What's the delivery time?

A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.

5. Q:What's your warranty terms?

A: We offer different warranty terms for different products. Please contact with us for details.
