IEC 60502 Water-Resistance XLPE Insulated 11kv ABC cable Overhead AAC ACSR AAAC conductor ABC cable.
Item name: IEC 60502 Water-Resistance XLPE Insulated 11kv ABC cable Overhead AAC ACSR AAAC conductor ABC cable.
Phase Conductor: Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen: Extruded semi-conductive layer.
Insulation XLPE.
Insulation Screen: Extruded semi-conductive layer.
metallic Screen(optional): Copper wire screen or copper tape screen.
Separator Semi-conductive swellable tape.
Outer Sheath: HDPE.
Support Conductor: Galvanized steel wires.

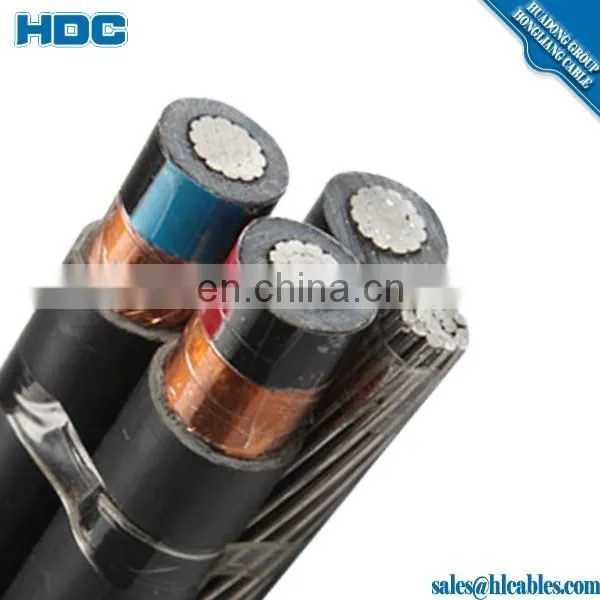

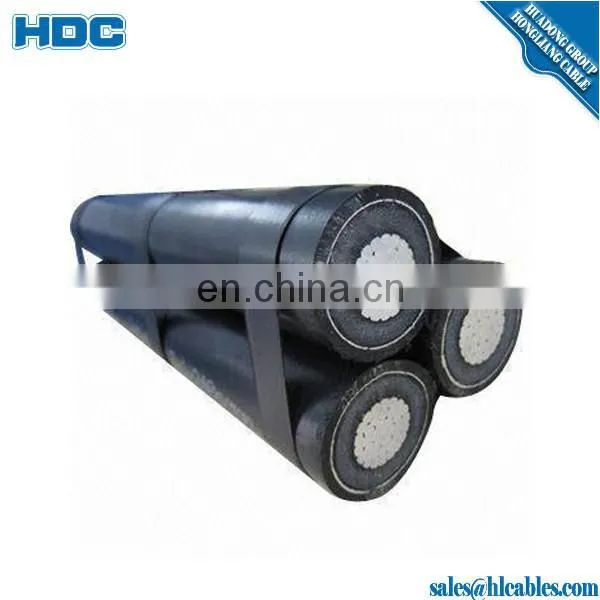

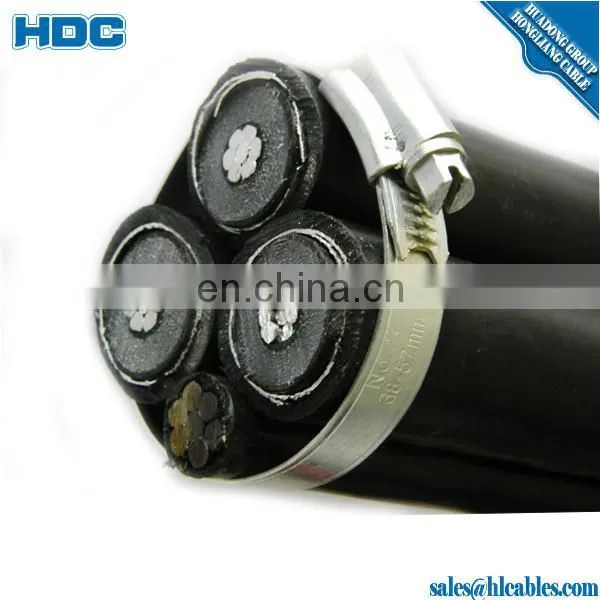

Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.
Description:
ABC Power Cable has an Aluminum Alloy conductor with a XLPE sheath.
ABC Power Cable usually has 3 cores plus neutral, the neutral can either be bare or insulated and the cable can have a street light of 25mm².
ABC Power Cable is available in 600/1000V, 635/11kV or 12,7/22kV. We stock 1 core, 2 core and 3 core Aluminum Alloy cable Aerial Bunched Kabel .
Construction:
1.Stranded Aluminum/Aluminum Alloy conductor
2.PE or XLPE insulation
3.ACSR, AAAC,Galvanized steel wire Messenger wire
3 power cores consisting of standard aluminum conductors, insulated with XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor
| Construction Parameters | |||||||
| IEC 60502 6.35/11 kV ABC for Overhead Distribution Lines | |||||||
| Number of Cores x Nominal Cross Section |
Phase Conductor | Messenger Suspension Unit |
Continuous current rating at 300C ambient temp | ||||
| Stranding | Nominal Sectional Area | Maximum Conductor Resistance | Stranding | Nominal Sectional Area | Breaking Load | ||
| No.×mm^2 | No.×mm | mm^2 | Ω/Km | No.×mm | mm^2 | KN | A |
| 3X50 + 1X25 | 19/1.78 | 50 | 0.641 | 7/3.0 | 50 | 60 | 116 |
| 3X70 + 1X50 | 19/.14 | 70 | 0.443 | 7/3.15 | 50 | 62 | 210 |
| 3X95+ 1X50 | 19/2.52 | 95 | 0.32 | 7/3.0 | 50 | 60 | 173 |
| 3X185+1X120 | 37/2.52 | 185 | 0.164 | 7/4.67 | 120 | 150 | 259 |
| 3X150 +1X50 | 37/2.25 | 150 | 0.206 | 7/3.15 | 50 | 62 | 365 |
| 3X240 +1X50 | 61/2.25 | 240 | 0.125 | 7/3.15 | 50 | 62 | 500 |
| Other cross-sections can be offered upon request. | |||||||
IEC 60502 Water-Resistance XLPE Insulated 11kv ABC cable Overhead AAC ACSR AAAC conductor ABC cable.
1.Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement .
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm or as your request .
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton,We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development, and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
IEC 60502 Water-Resistance XLPE Insulated 11kv ABC cable Overhead AAC ACSR AAAC conductor ABC cable Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
