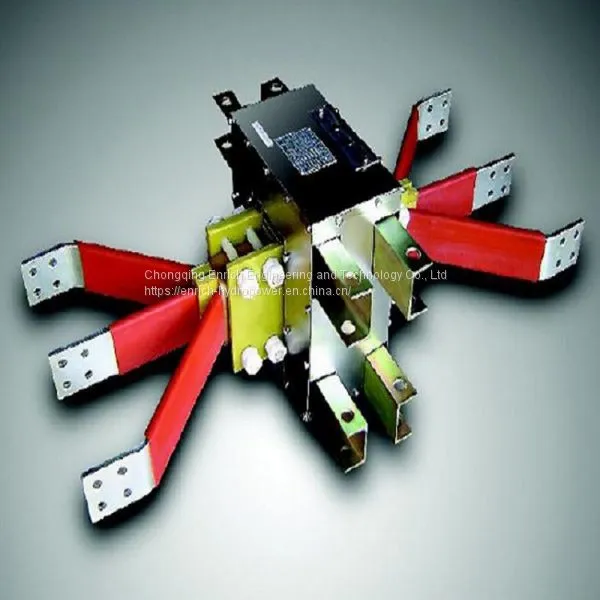

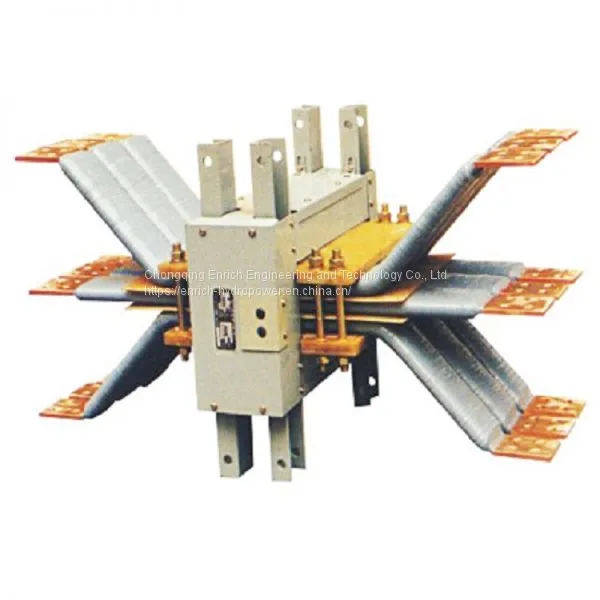

LJM-1, 2, 3 Bus-Type Indoor Busbar Type Zero Sequence Current Transformer CT Earthing Protection Residual CT for Power System
US$ 80 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Enrich
Place of Origin:
China
Model Number:
LJM-1,2,3
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
Lxbk1 Lxbk2/3/4... Indoor Electromagnetic Type Toroidal Type Epoxy Resin Open-Close Split Core Core Balance Type Zero Sequence Current Transformer CT Residual Current Transformer CT With Protective Class Earthing Grounding Protection Suitable for Power MeUS$ 68 - 300MOQ: 1 Piece -
Lxk Indoor Electromagnetic Round Toroidal Ring Type Epoxy Resin Open-Close Split Core Core Balance Type Zero Sequence Current Transformer CT Residual Current Transformer CT Earthing Grounding Protection Suitable for Power Measurement in Power Cable SysteUS$ 38 - 100MOQ: 1 Piece
-
Lj-75, 80, 95 Series Indoor Electromagnetic Type Electric Power Cable Type TOROIDAL Ring Round Type Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer for Power Measurement in Power SystemUS$ 38 - 100MOQ: 1 Piece
-
LJZ-Φ65 Indoor Electromagnetic Electric Power Cable TOROIDAL Ring Round Type Epoxy Resin Casting Insulation Insulated Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer CT for Power Measurement in Power SysteUS$ 25 - 125MOQ: 1 Piece
-
LJ-1, 2, 4, 7 Indoor Electromagnetic Electric Power Cable Type TOROIDAL Ring Round Type Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer CT for Power Measurement in Power System in Electrical Switchgear ContrUS$ 25 - 126MOQ: 1 Piece
Brand Name
Enrich
Place of Origin
China
Model Number
LJM-1,2,3
Usage
Current
Phase
Single
Coil Number
Other
Coil Structure
Other
LJM zero sequence current transformer
Type description
LJM-1,2,3
L: Current transformer
J: Earthing/grounding protection
M: Busbar type
1,2,3: Busbar number
Technical data
Technical data 1: for zero sequence protection
Model |
Rated primary current Im(A) |
Ith/2S(kA) |
Dynamic current(kA) |
Weight(Kg) |
Insulation level(rated voltage/power frequency withstand voltage) (kV) |
LJM-1 |
1750 |
24/2 |
60 |
77 |
10/30 |
LJM-2 |
3000 |
48/2 |
120 |
118 |
|
LJM-3 |
4000 |
72/2 |
180 |
159 |
Mating with relay: DD-11/60, primary residual current 2.4A, setting current of relay 0.06A, excitation impedance at sec-winding parallel connection≥10Ω
Technical data 2: for microcomputer protection
Secondary connection type |
Rated current ratio(A) |
Accuracy class |
Rated secondary output(VA) |
Parallel connection |
30/1 |
10P10 |
3.75 |
Series connection |
60/1 |
7.5 |
