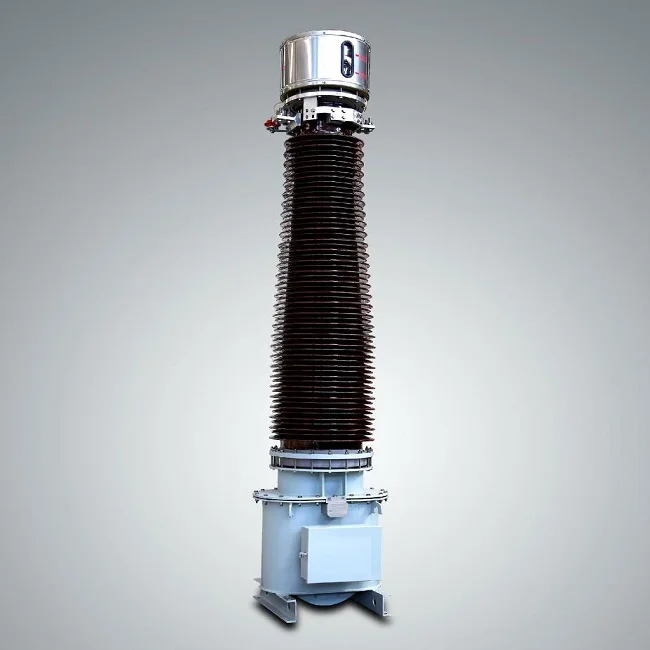

Help CenterLb6-110 Lb7-220 Type Oil-Immersed Oil-Filled Hair-Pin Type Fully Sealed Structure Current Transformer CT With Protection Class 35kv, 66kv, 110kv, 220kv, 330kv Power System
Related Products
-
Lvb-110 Lvb-220 Lvb1-220 Series Oil Immersed Oil-filled Inverted Type Current Transformers CT Instrument Transformer With Protection Class 35kv, 66kv, 110kv, 220kvUS$ 466 - 4800MOQ: 1 Piece -
10kv 12kv 24kv 33kv to 550kv External or Built in Type Epoxy Resin Bushing Current Transformer for Power Transformer and Circuit Breaker With Stainless Cover Bushing Type Current Transformer Bushing Current Transformer CT for Switchgear Generator GISUS$ 360 - 800MOQ: 1 Piece
-
20kv Lmzb (T) 2 (3, 4, 5, 6, 8) -20 (G1, 3, 4, 5, 7, 8) /2 (3, 4) -180 (200) Epoxy Resin Casting Insulation Through-Wall Type Open Busbar Type Current Transformer CT With Transient ProtectionUS$ 480 - 1000MOQ: 1 Piece
-
20kv Lmzb (D) (T) 1 (2, 3, 7, 8) -20 (G1, 2, 3, 6) /2 (3, 4) Reinforced Increased Capacity Epoxy Resin Casting Insulation Through-Wall Type Enclosed Closed Busbar Busway Busduct Current Transformer CT With Protective Class With Transient ProtectionUS$ 460 - 1200MOQ: 1 Piece
-
10kv Laj-10q Lazbj-10 LFZBJ-10 Lm-6q Ldzj1-10 Lmzb6 -10 Ldz1-10 La-10q Lfzb9-10 Indoor Wall Through Through-Wall Type Epoxy Resin Cast-Resin Current Transformer CTUS$ 100 - 160MOQ: 1 Piece
35-330kV Oil-filled/oil immersed type current transformer
35-330kV Oil-filled hair-pin type current transformer
LB6-35 oil immersed type current transformer
Model description
LB6-35GY(W2,W3)
L: Current transformer
B:With protection class
6: Design no.
35: Rated voltage(kV)
GY: Altiplano type
W2,W3: Pollution level
LB6-35GY(W2,W3) 5-500A 600-1000A 1200-1600A 2000A 2500A
windward area Bellows oil conservator porcelain bushing Oil weight Total weight
LB6-35GY(W2,W3)
2x30-2x300A 2x400-2x600A 2x750-2x1000A windward area
Equipment highest voltage Um(kV) |
Rated primary current Ipr(A) |
Rated secondary current Isr(A) |
Measuring class |
Protective class |
Rated output(VA) |
Rated short-time thermal current Ith(kA) |
Rated dynamic current Idyn(kA) |
||
Accuracy class |
Instrument security factor(FS) |
Accuracy class |
Accuracy limit factors(ALF) |
||||||
40.5 |
5-200 |
5 or 1 |
0.2 0.2S 0.5 0.5S |
≤5 or ≤10 |
5P 10P |
15-40 |
7.5-50 |
100Ipr |
2.5Ith |
300 |
31.5 |
80 |
|||||||
400 |
40 |
100 |
|||||||
500-2500 |
50 |
125 |
|||||||
2x30-2x100 |
100Ipr |
2.5Ith |
|||||||
2x150-2x300 |
31.5 |
80 |
|||||||
2x400-2x800 |
40 |
100 |
|||||||
2x1000 |
50 |
125 |
|||||||
LB7-66 oil immersed type current transformer
Model description
LB7-66GY(W2,W3)
L: Current transformer
B:With protection class
7: Design no.
66: Rated voltage(kV)
GY: Altiplano type
W2,W3: Pollution level
LB7-66GY(W2,W3) Bellows porcelain bushing equal potential connecting strip
Equipment highest voltage Um(kV) |
Rated primary current Ipr(A) |
Rated secondary current Isr(A) |
Accuracy class |
Rated output(VA) |
Rated short-time thermal current Ith(kA) |
Rated dynamic current Idyn(kA) |
|||
Measuring class |
Instrument security factor(FS) |
Protective class |
Accuracy limit factors(ALF) |
||||||
72.5 |
2x25 |
5 or 1 |
0.2 0.2S 0.5 0.5S |
≤5 or ≤10 |
5P 10P |
15 20 30 35 40 |
15(1A) 30(5A) 30(1A) 50(5A) |
100Ipr/1s |
2.5Ith |
2x50-75 | |||||||||
2x100 | |||||||||
2x150-300 |
31.5/1s |
80 |
|||||||
2x400-800 |
40/3s |
100 |
|||||||
LB7-110 oil immersed type current transformer
Model description
LB7-110GY(W2,W3)
L: Current transformer
B:With protection class
7: Design no.
110: Rated voltage(kV)
GY: Altiplano type
W2,W3: Pollution level
LB7-110GY(W2,W3) Bellows porcelain bushing equal potential connecting strip
LB7-220 oil immersed type current transformer
Model description
LB7-220GY(W2,W3)
L: Current transformer
B:With protection class
7: Design no.
220: Rated voltage(kV)
GY: Altiplano type
W2,W3: Pollution level
LB1-330 oil immersed type current transformer
Model description
LB1-330GY(W2,W3)
L: Current transformer
B:With protection class
1: Design no.
330: Rated voltage(kV)
GY: Altiplano type
W2,W3: Pollution level
