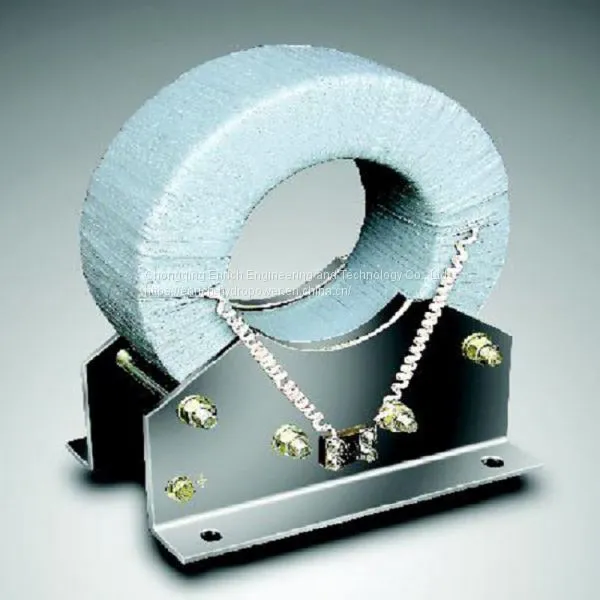

LJ-1, 2, 4, 7 Indoor Electromagnetic Electric Power Cable Type TOROIDAL Ring Round Type Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer CT for Power Measurement in Power System in Electrical Switchgear Contr
US$ 25 - 126
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Enrich
Place of Origin:
China
Model Number:
LJ-1, 2, 4, 7
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
Tyd35 3-0.01 (0.02) H Type High Voltage HV Oil-Immersed Oil-Filled Capacitive Capacitance Capacitor Type Potential Voltage Transformer for Transformer PTUS$ 1000 - 5000MOQ: 1 Piece -
Jdqx6-66/110/220 Sf6 Sulfur Hexafluoride Gas Insulation Insulated Potential Voltage Transformer PT 66kv, 110kv, 220kvUS$ 300 - 1000MOQ: 1 Piece
-
Jd6-35 Oil-Immersed Oil-Filled Type Potential Voltage Transformer PT 27.5kv, 35kv, 66kv, 72.5kv, 110kv, 126kv, 220kv, 245kvUS$ 300 - 1000MOQ: 1 Piece
-
Jlszv-20W Outdoor Three-Phase Three-Wire Casting Insulation Epoxy-Resin Combined Current and Potential Voltage Transformer CT/PT 20kv, 35kv With Fuse ProtectionUS$ 100 - 300MOQ: 1 Piece
-
3kv, 6kv, 10kv Jdzx9-3, 6, 10q (B, C, D, E) Fully Enclosed Indoor Epoxy Cast-Resin Casting Insulation Type Single-Phase Potential Voltage Transformer PT With Fuse Protection Residual Voltage WindingUS$ 80 - 360MOQ: 1 Piece
Brand Name
Enrich
Place of Origin
China
Model Number
LJ-1, 2, 4, 7
Usage
Current
Phase
Single
Coil Number
Other
Coil Structure
Toroidal
LJ-1, 2, 4, 7 series zero sequence current transformer
Model description
LJ-1, 2, 4, 7
L: Current transformer
J: Earthing/grounding protection
1, 2, 4, 7: Number of passing cable
Technical parameters
Model |
Rated current ratio |
Rated secondary output |
Relay type |
Setting/adjustment current(residual current of secondary loop) |
Sensitivity (Primary current of relay acting) |
Unbalanced voltage of secondary loop |
Weight |
A |
VA |
A |
A |
mV |
Kg |
||
LJ-1 |
20/1 |
10 |
DD-11/60 |
0.03 |
1-3 |
40 |
2.3 |
LJ-2 |
25/1 |
19 |
|||||
LJ-4 |
30/1 |
28 |
|||||
LJ-7 |
35/1 |
30 |
32 |

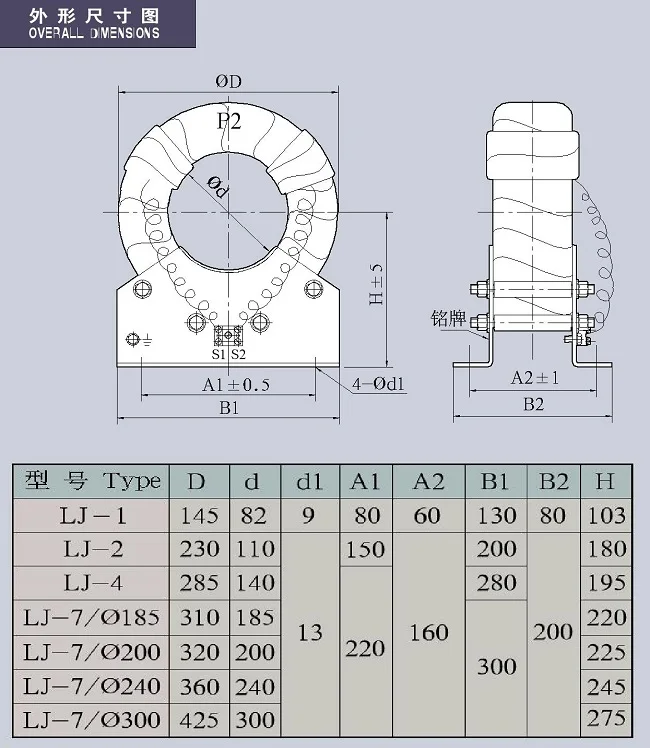

LJ-7/φ185/φ200/φ240/φ300
