Lj-75, 80, 95 Series Indoor Electromagnetic Type Electric Power Cable Type TOROIDAL Ring Round Type Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer for Power Measurement in Power System
US$ 38 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Enrich
Place of Origin:
China
Model Number:
LJ-75, LJ-80, LJ-95
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
LJZ-Φ65 Indoor Electromagnetic Electric Power Cable TOROIDAL Ring Round Type Epoxy Resin Casting Insulation Insulated Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer CT for Power Measurement in Power SysteUS$ 25 - 125MOQ: 1 Piece -
LJ-1, 2, 4, 7 Indoor Electromagnetic Electric Power Cable Type TOROIDAL Ring Round Type Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer CT for Power Measurement in Power System in Electrical Switchgear ContrUS$ 25 - 126MOQ: 1 Piece
-
Tyd35 3-0.01 (0.02) H Type High Voltage HV Oil-Immersed Oil-Filled Capacitive Capacitance Capacitor Type Potential Voltage Transformer for Transformer PTUS$ 1000 - 5000MOQ: 1 Piece
-
Jdqx6-66/110/220 Sf6 Sulfur Hexafluoride Gas Insulation Insulated Potential Voltage Transformer PT 66kv, 110kv, 220kvUS$ 300 - 1000MOQ: 1 Piece
-
Jd6-35 Oil-Immersed Oil-Filled Type Potential Voltage Transformer PT 27.5kv, 35kv, 66kv, 72.5kv, 110kv, 126kv, 220kv, 245kvUS$ 300 - 1000MOQ: 1 Piece
Brand Name
Enrich
Place of Origin
China
Model Number
LJ-75, LJ-80, LJ-95
Usage
Current
Phase
Three
Coil Number
Autotransformer
Coil Structure
Toroidal

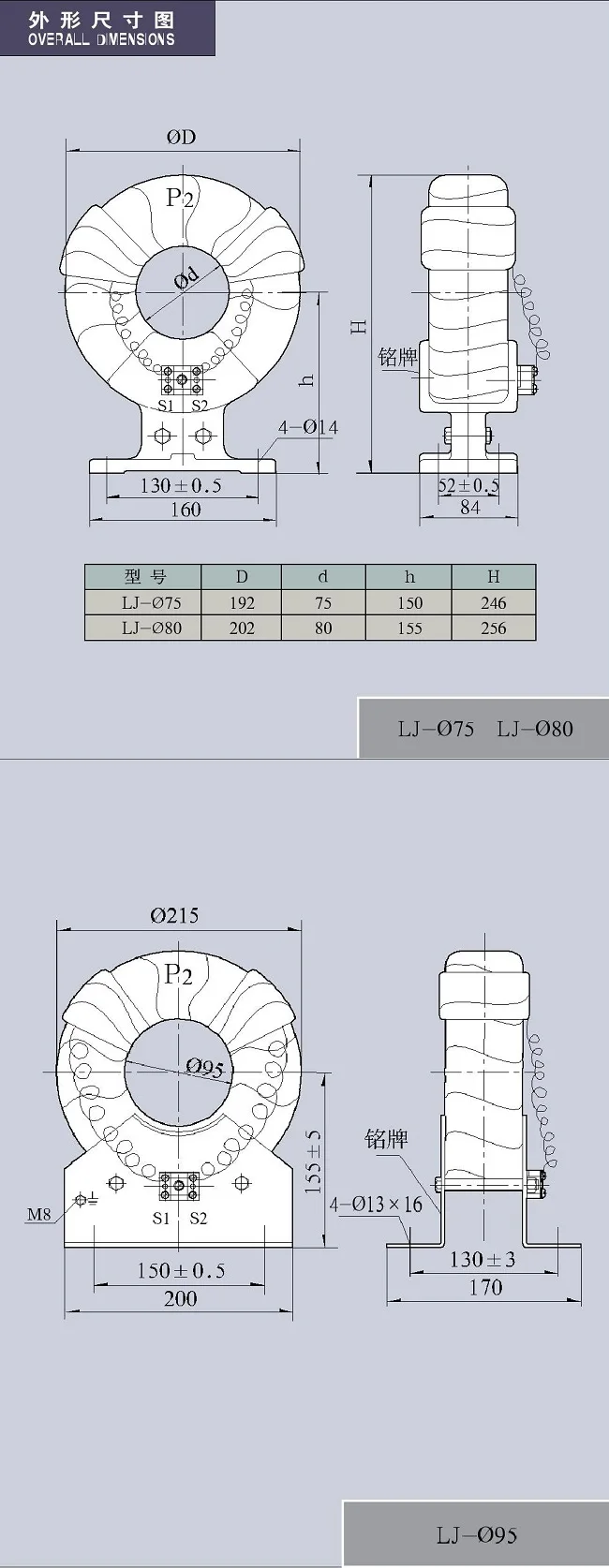

LJ-φ75, LJ-φ80, LJ-φ95 series zero sequence current transformer
Model description
LJ-φ75(80,95)
L: Current transformer
J: Earthing/grounding protection
φ75(80,95): Nominal diameter of inner hole
Technical parameters
Model | Rated current ratio | Rated secondary output | Relay type | Setting current (relay winding parallel connection) | Primary zero sequence current of relay acting | Weight |
A | VA | A | A | Kg | ||
LJ-φ75 | 30/1 | 10 | DL-11/0.2 | 0.1 | ≤10 | 10 |
LJ-φ80 | 30/1 | 11 | ||||
LJ-φ95 | 30/1 | 11.5 |
