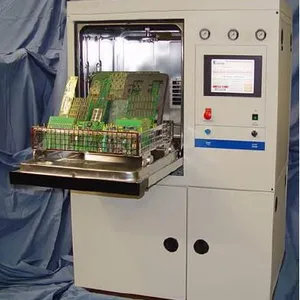

CE Ultrasonic Pcb Cleaning Machine / 32 L Ultrasonic Cleaning Device
Product Feature:

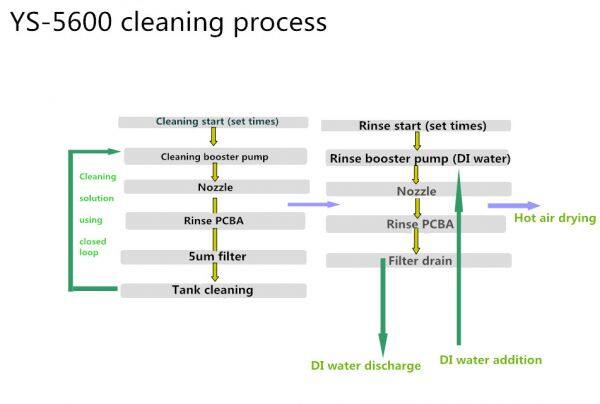

1. Standard leaning chemicals can be add into machine manually or using dosing pump to add pure chemicals and DI water automatically according to different ratio(5%~20%).
2. Cleaning chemicals heat system, can heat to the suitable temperature, ,make cleaning efficient.
3. Cleaning process can be observed through window on machine.
4. Cleaning all kinds of flux and solder paste. v8. Real time electrical conductivity monitor system to monitoring cleaning result, can be set to 10~400us.
5. High standard cleanness, ion contamination is fully consistent with IPC-610D I level standard.
6. Cleaning chemicals repeated use in the machine, it can reduce 50% chemical cost.
9. Built-in resin pipe out filtration system to effective filtrate all kings of impurity substance like COD,BOD,PH…etc.
7. Total SUS304 stainless structure, Strong Acid and alkaline resistance, more than 10 years life span.
8. layers cleaning baskets: big 2 layers 645mm(L) ×560mm(W) × 200mm(H) x 2
9. Easy Chinese operation interface, quick and easy cleaning process parameters setting, procedures can be stored and called out; different password can be set
10. according to different management authorization.
Machine SpecS:
| ItemModel Number | YS-5600 |
| Cleaning basket size | L645 x W560 x H100 (mm) x2 layers |
| Liquid tank | 17L |
| Pure chemicals tank | 32L |
| Dilute chemicals tank | 60L |
| Clean time | 5~20min |
| Dry time | 20~40min |
| Chemical heat temp | 0.5~0.7Mpa |
| PCB hot air temp | 400~600L/min |
| electrical conductivity range | 10~400us |
| auto ratio range | 5~20% |
| Chemical filter | 1um or 0.45um |
| Chemical filter | 0.45um |
| hot air filter | 10um/5um |
| DI water supply | 30~65L/Min |
| DI water pressure | ≤0.4Mpa |
| vent size | Φ125xH50(mm) |
| power/Air supply | AC380V/50A/50HZ,30KW;0.5Mpa |
| Machine weight | 450KG |
| Machine size | L1300 x W1000 x H1720(mm) |
