800KG 450*450mm Automatic QR Code Coding Machine Integrated coding, reading and MES interaction functions
- 100 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Product Details
Brand Name: | YUSHUNLI | Place of Origin: | China | Model Number: | PM-450A |
Product Description
800KG 450*450mm Automatic QR Code Coding Machine
Introduction
PM series continuous automatic inkjet printer adopts high temperature resistant and environmentally friendly quick-drying ink. The ink dots dries instantly when they adhere to the surface of the product. It can be printed on the surface of PCB, FPC, metal, ceramic, plastic, rubber and other products. Identify information to achieve industrial traceability purposes.
The coding system can interact with production management systems such as IMS, MES, ERP, etc., to realize variable information printing, that is, printing and reading, and return to the management system.
SMT online production reduces manpower input, and it can also be equipped with up and down board machines to achieve offline production.
Features
Can be reprinted after wiping
1. With printing information solvent erasing and then printing
2. After being baked at a high temperature in the oven, the printed information is solidified and cannot be erased.
Does not damage the product
1.The printed ink dots are attached to the surface of the product without damage to the product.
2.Can be printed on the PCB/FPC network cable without quality risk.
Quick-drying ink, green and environmentally friendly
1.The ink is sprayed and dried without baking.
2.High temperature resistance, friction resistance, alcohol resistance, environmental protection
3.No smoke or dust remains on the product during the production process.
4.Ultra-low cost of consumables, only 1/8 of the label.
Industry 4.0, MES system interaction
1.Printing information and real-time download from MES system.
2.After spraying, the information is automatically read, and uploaded to the MES system, and the information is traced back to prevent foolishness.
3.Real-time upload of equipment operating data and remote management.
Easy-to-use coding control system
1.Simple and easy-to-use coding information generation system.
2.Teaching visual programming, easy to use.
3.Printing information detection to ensure no defective products
High reliability and stability
1.The equipment frame is welded as a whole, and the gantry is processed to ensure high rigidity, stability and long life.
2.The components are all selected first-line brands.
Parameter Specs:
Model | PM-450A | PM-750A | PM-450B | PM-750B |
Series | Standard version | Upgraded version | ||
Machine size | 880*1430*1600mm | 1200*1450*1600mm | 880*1430*1600mm | 1200*1450*1600mm |
Working area | 450*450mm | 700*500mm | 450*450mm | 700*500mm |
PCB size | 50*50mm-600*500mm | 50*50mm-900*500mm | 50*50mm-600*500mm | 50*50mm-900*500mm |
Into the board direction | L→R,R→L,L→L,R→R,Manual switch | L→R,R→L,L→L,R→R,Automatic switch | ||
Duplex copy function | Optional | Read the barcode information on the back, copy and print to the front | ||
Printing accuracy | ±0.1mm | ±0.5mm | ||
MES Onilne | Optional MES online function | Printing information MES download, read and upload to MES | ||
Types of printable text | 5*7,7*6,9*6,11*6,16*12,24*16,Custom text and pictures | |||
Can print Bar code | Code 128,Code128A,Code128B,2/5,39 | |||
Printable QR code | Data Matrix,QR,PDF417 | |||
The smallest QR code can be printed | 2*2mm | |||
Printing color | Choose one of black, white and yellow |
Printing resolution | 80DPI, 115DPI, 150DPI three options |
Productivity | One second plus six seconds for each pen |
Print height | 3-15mm |
Double-sided engraving | Optional built-in flip function to achieve double-sided printing |
Applicable Products | 0.1-8mm thickness, tolerable warpage: ±1mm, upper space: ≤5mm, weight: ≤3Kg |
Printing angle | 0-360° |
Track plate frame adjustment | Automatic adjustment |
Anti-recode function | 365 days automatic recode detection |
Visual teaching programming | Through visual guidance, teach to set the printing position |
Barcode checking function | After printing, check the position of the barcode through CCD and read it |
Mark Visual correction | Recognize the product Mark by CCD, compensate and correct the printing position to ensure the accuracy of the printing position |
Special-shaped Mark point visual function | Support special-shaped Mark recognition, white background recognition, automatic expansion and contraction compensation functions |
Log query function | The system comes with a database, supports printing log query |
Printing information formation function | The system supports its own printing information generation, and supports customized date, serial code, and shift format |
SMEMA online features | Supports SMEMA communication interface for online applications |
Machine weight | 800KG |
Voltage | 220V 50/60HZ 2KVA |
Air pressure | ≥0.4MPa |

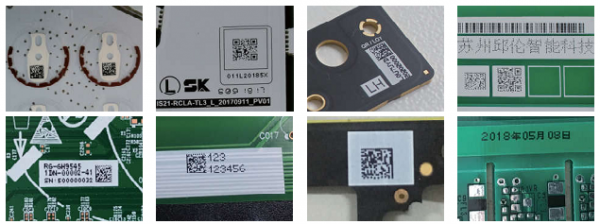

Applications
