6000mm/S CCD+MARK Positioning Automatic Laser Marking Machine/Laser Depaneling Mchine
Product advantages:
1. Imported CO2 laser, fiber laser, green laser, and stable performance of UV laser
2, the use of imported high-speed galvanometer, high processing accuracy, marking speed, stable performance
3, the software interface is user-friendly, the operation is simple and easy to learn, and the editing function is powerful.
4, can automatically obtain the work order number, product batch number, material code, product name specifications and other information and automatically code
5, can automatically read the QR code and save the data, automatically record and alarm when it can not be read
6, compared to the ordinary printing method, no consumables, environmental protection, no pollution, maintenance-free
Technical Parameters:
Laser type UV laser, green laser, fiber laser, CO2 laser
Marking range 70mm×70mm----200mm×200mm (depending on laser type, lens type)
Marking speed up to 6000mm/s (actual processing efficiency depends on laser type and laser power)
Marking accuracy ±0.08mm (with special requirements ±0.03mm)
PCB size L510mm×W460mm; thickness 0.5mm-6mm (can be adjusted for special needs)
PCB upper surface height <25mm (can be adjusted for special needs)
PCB lower surface height <25mm (can be adjusted for special needs)

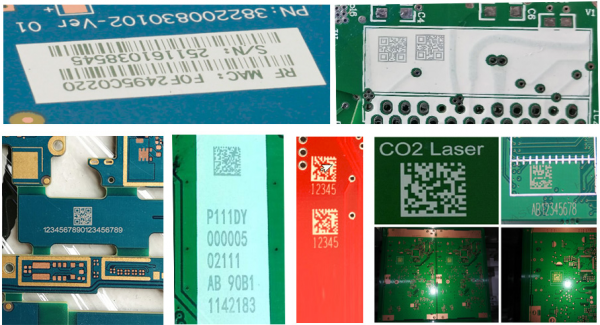

Applicable products PCB hard white ink, green ink, blue ink and other inks; copper, aluminum and so on.
Positioning system CCD+MARK positioning
How it works Laser XY moves
1D code type Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN, etc.
QR code type Datamatrix, QR Code, micro QR Code, PDF417, Code 49, Code 16K, etc.
QR code size 1.5mm × 1.5mm ~ 10mm × 10mm (the smallest processable QR code size depends on the laser type)
Character type Support TrueType JSF, SHX, DMF font
Minimum character height 0.1mm ~ 0.4mm (depending on laser type)
Supported file formats DXF, PLT, Excel, TXT
Positioning function Support automatic photo taking, support 2, 3, 4 point positioning
Reading function Automatically read QR code and save data, automatically record and alarm when it cannot be read
System access can be customized and interconnected with ERP/MES/SAP system, automatically obtain work order number, product batch number, material code, product name specification and other information and automatically code
Conveyor belt width automatically adjusts with the board
| Conveyor speed | 0~100000mm/min can be set |
| Power specification | 220V/50Hz, total power ≈2500W |
| Air pressure | 0.5~0.6MPA |
| Dimensions | 1050(W)*1450(L)*1500(H) mm |
| Weight | 750KG |
