Home > Products > Safety conductor bar > March safety 60A Galvanized Steel Conductor Bar Rail System

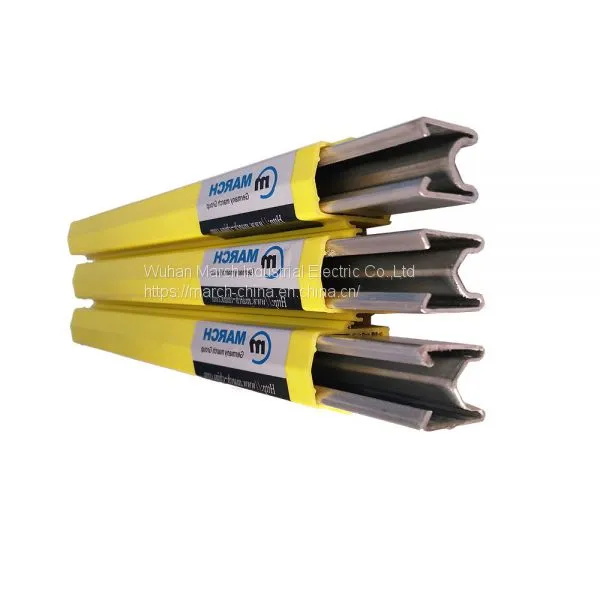

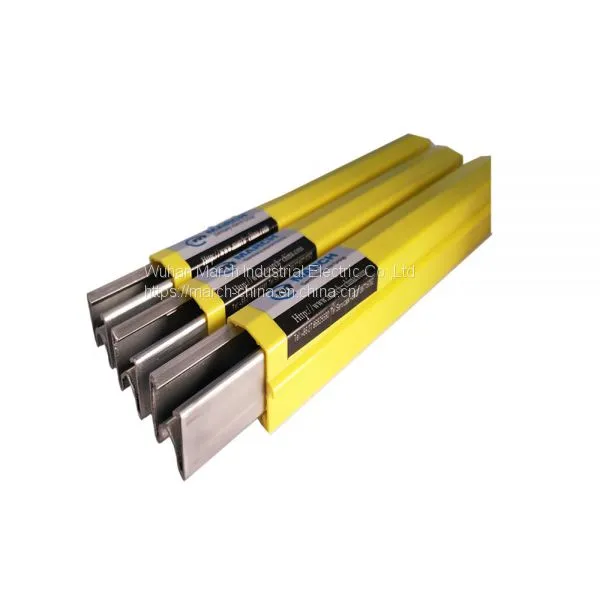

March safety 60A Galvanized Steel Conductor Bar Rail System
- 10000 Piece / Pieces per Month
- shanghai,wuhan,guangzhou,shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash
- 5 days
Product Details
| Brand Name: | March | Place of Origin: | China | Model Number: | MCCBII |
Product Description
March safety 60A Galvanized Steel Conductor Bar Rail System
Product Description
MCCBII series of conductor bar systems are made from galvanized steel. It can be used for -35℃- 125℃ ambient environments. It is widely used in automobile manufacturing, cooking, metallurty, hoisting machinery, automated production lines, automatic, storage system,port, air port, shipbuilding, power generation, petrochemical indusry, paperkmaking, rapid rail transit system, play ground and many other areas.
March safety 60A Galvanized Steel Conductor Bar Rail System
| MCCBII Main Technical Parameter | Datas | |||
| Conductor bar | Descriptions | Descriptions | Descriptions | |
| Model No. | MCCB II-60A-FE | MCCB II-100A-FE | MCCB II-125-FE | |
| Amperage | 60A | 100A | 125A | |
| Sectional area | 50mm2 | 63mm2 | 93mm2 | |
| Conductor bar material | Galvanized steel | Galvanized steel | Galvanized steel | |
| Material Class | Z2 | Z2 | Z2 | |
| Maximum Voltage | AC | 550V | 550V | 550V |
| DC | 700V | 700V | 700V | |
| Full load permissible temperature | 25℃ | 25℃ | 25℃ | |
| Covers flame test | Self-extinguishing | Self-extinguishing | Self-extinguishing | |
| Standard length of bar | 4.5m | 4.5m | 4.5m | |
| Hanger clamp spacing | Horizontal | 1.5m | 1.5m | 1.5m |
| Lateral | 1.125m | 1.125m | 1.125m | |
| Minimum phase spacing | Horizontal | 43mm | 43mm | 43mm |
| Expansion sections not required for runs less than | 150m | 150m | 150m | |
| Maximum running speed | 200 | 200 | 200 | |
| Minimum bending radius ( Horizontal only) | 1.5m | 1.5m | 1.5m | |
| Weight | 2.41kg | 2.83kg | 3.89kg | |
Advantages:
1. Computer Optimized design
Low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength.
2. Strict selection of materials
The covers are made from metaldehyde and brilliant in high intension, aging resistance.
Good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance.
3. Small volume, variety of installation methods
Small occupying space,snap-in installation, convenient to use, easy to maintain.
The current collector contact shoes are made from alloy, to make sure continuous power supply and good abrasive resistance.
March safety 60A Galvanized Steel Conductor Bar Rail System components
March safety 60A Galvanized Steel Conductor Bar Rail System applications
| 1:what's your advantages : |
| Direct Professional Factory , High Quality ,Low Price , Best Choice for you . |
| 2.Can I get some sample? |
| Yes, Free samples will be pleasantly offered to you to check the quality before placing the order. |
| 3: Is small order accepted? |
| Yes, a small order is accepted.You can take a trial order first, then we will try our best to earn your trust, for what we want is a long-term cooperation in the future! |
| 4: Can you guarantee the quality? |
| Yes, we can, you can pay the balance after checking the quality of the finished goods. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully inspected before it's packed for shipment. |
| 5:Can you accept visiting the factory? |
| Yes, welcome to visit our factory in Xinxiang city, Henan Province, China! We will book hotel and arrange pick up and host you . |
| 6:What's your trade terms? |
| It is as per customers' request: FOB Chinese seaport/ CIF destination port or other trade terms can be accepted. |
| 7:What's your payment terms? |
| A: FOB: 30%T/T deposit, 70%T/T before the delivery of goods. |
| 8:Does the packaging safe and arrive in good conditions? |
| Yes, Safe packing is guaranteed. All goods will arrive your door under good conditions. |
