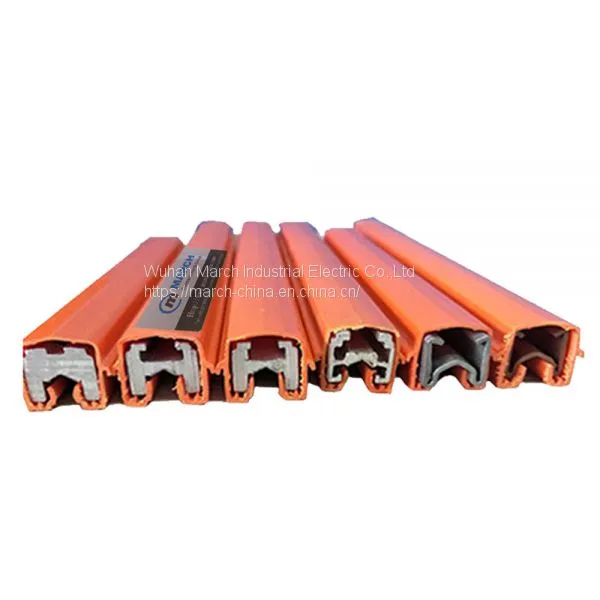

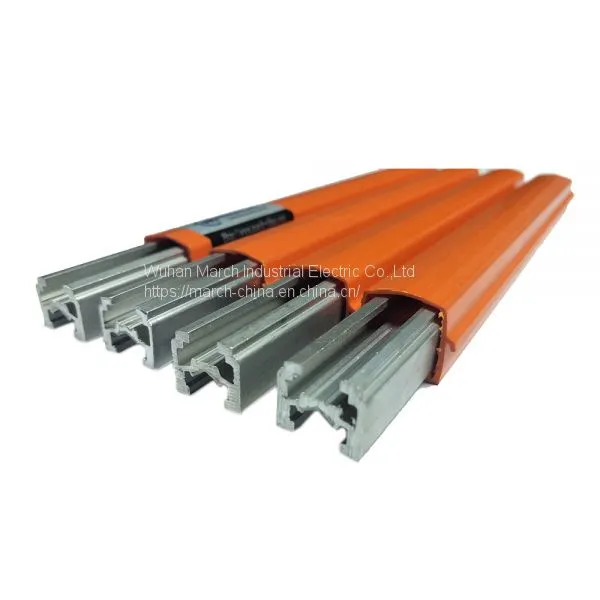

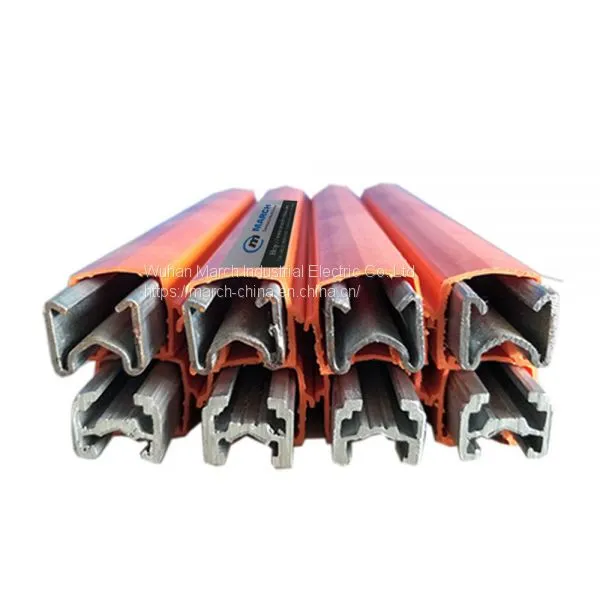

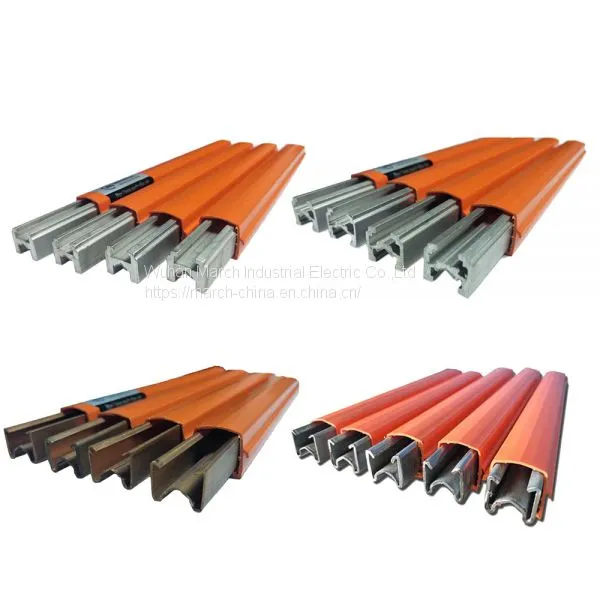

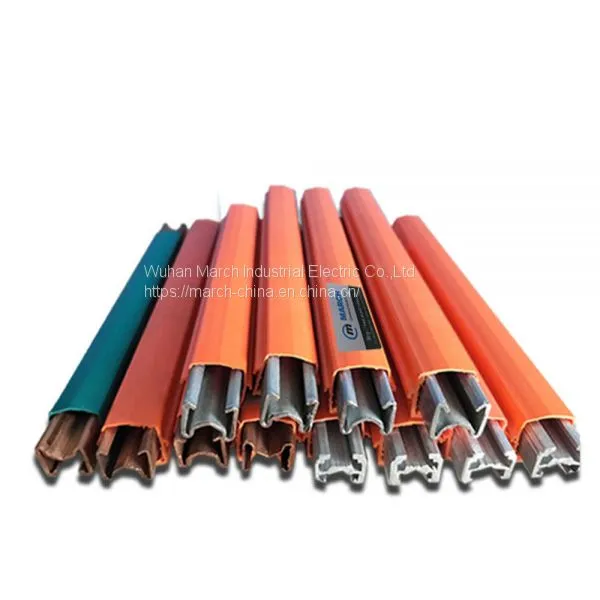

March Crane Parts 160A Electric Bus Bar Hevi-bar Aluminum Conductor Bar
US$ 6.88 - 18.89
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
March
Place of Origin:
China
Model Number:
MCCBII
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan,shanghai,shenzhen,guangzhou
Delivery Detail:
5 days
Related Products
-
March 160A Single Pole Insulation Crane Safety Hoist Copper Conductor Bus BarUS$ 32 - 58MOQ: 10 Pieces -
March Gantry Crane 160A Electric Conductor Bus Bar Bridge Cranes Bus BarUS$ 32.8 - 58MOQ: 10 Pieces
-
March Electricity Distribution Equipment MCCBIII Aluminum Gantry Crane Electrical Bus Bar for SaleUS$ 29 - 58MOQ: 20 Pieces
-
March Safety 60amp-100amp-125amp Aluminum Copperhead Rail System for Coking PlantUS$ 8.88 - 12.88MOQ: 10 Pieces
-
March Safety 60A Galvanized Steel Conductor Bar Rail SystemUS$ 8.88 - 12.88MOQ: 10 Pieces
Brand Name
March
Place of Origin
China
Model Number
MCCBII
Product Description
March crane parts 160A electric bus bar Hevi-bar Aluminum conductor bar Features:
The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area,
high-performance conductivity, good heat dissipation, big bending moment, high bending strength, ect.
Strict selection of materials
The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability,small tolerance range, high product precision, easy installation, reliable performance
Small volume, variety of installation methods
Small occupying space, snap-in installation, convenient to use, easy to maintain
March crane parts 160A electric bus bar Hevi-bar Aluminum conductor bar Parameter:
| Conductor bar | Descriptions | Descriptions | Descriptions | Descriptions | Descriptions | Descriptions | |
| Model No. | MCCB II-160-AL | MCCB II-200-AL | MCCB II-250-AL | MCCB II-315-AL | MCCB II-400-AL | MCCB II-500-AL | |
| Amperage | 160A | 200A | 250A | 315A | 400A | 500A | |
| Sectional area | 102mm2 | 104mm2 | 110mm2 | 120mm2 | 157mm2 | 196mm2 | |
| Conductor bar material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | |
| Material Class | 6101A | 6101A | 6101A | 6101A | 6101A | 6101A | |
| Maximum Voltage | AC | 550V | 550V | 550V | 550V | 550V | 550V |
| DC | 700V | 700V | 700V | 700V | 700V | 700V | |
| Full load permissible temperature | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | |
| Covers flame test | Self-extinguishing | Self-extinguishing | Self-extinguishing | Self-extinguishing | Self-extinguishing | Self-extinguishing | |
| Standard length of bar | 4.5m | 4.5m | 4.5m | 4.5m | 4.5m | 4.5m | |
| Hanger clamp spacing | Horizontal | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m |
| Lateral | 1.125m | 1.125m | 1.125m | 1.125m | 1.125m | 1.125m | |
| Minimum phase spacing | Horizontal | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Expansion sections not required for runs less than | 150m | 150m | 150m | 150m | 150m | 150m | |
| Maximum running speed | 200 | 200 | 200 | 200 | 200 | 200 | |
| Minimum bending radius ( Horizontal only) | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | |
| Weight | 1.98kg | 2.13kg | 2.19kg | 2.32kg | 2.81kg | 3.11kg | |
