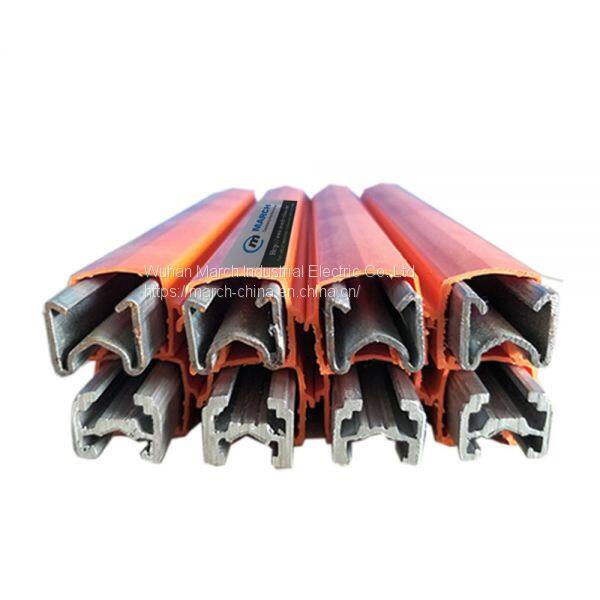

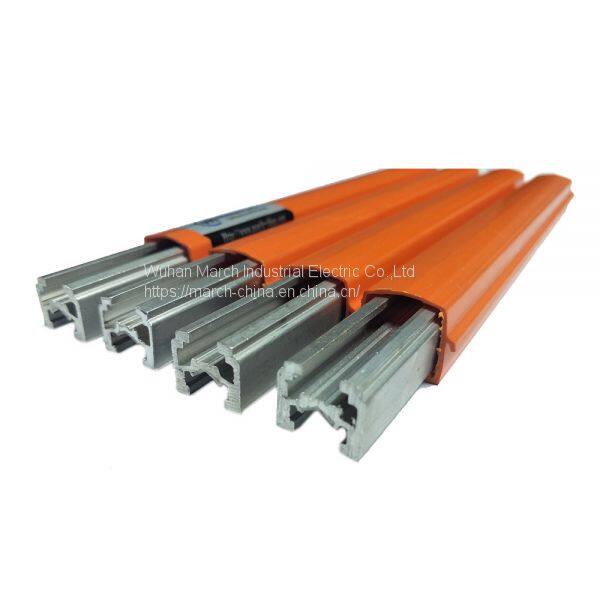

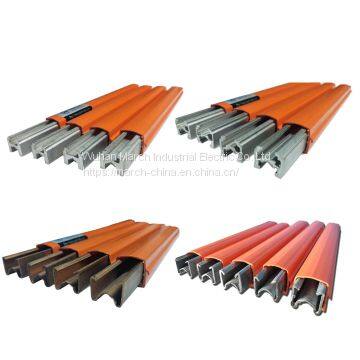

March Mccb Accessories Overhead Crane 160A Aluminum Conductor Bar for Gantry Crane
US$ 6.88 - 18.89
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
March
Place of Origin:
China
Model Number:
MCCBII
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan,shanghai,shenzhen,guangzhou
Delivery Detail:
5 days
Related Products
-
MCCB Safety 60amp-100amp-125amp Galvanized Steel Safe Insulated Conductor Bar SystemUS$ 8.8 - 12.8MOQ: 10 Pieces -
March Shipbuilding Sea Port Overhead Crane 160A Aluminum Conductor Bus BarUS$ 6.88 - 18.89MOQ: 20 Pieces
-
March Crane Parts 160A Electric Bus Bar Hevi-bar Aluminum Conductor BarUS$ 6.88 - 18.89MOQ: 20 Pieces
-
March 160A Single Pole Insulation Crane Safety Hoist Copper Conductor Bus BarUS$ 32 - 58MOQ: 10 Pieces
-
March Gantry Crane 160A Electric Conductor Bus Bar Bridge Cranes Bus BarUS$ 32.8 - 58MOQ: 10 Pieces
Brand Name
March
Place of Origin
China
Model Number
MCCBII
Product Description
March mccb accessories overhead Crane 160A aluminum conductor bar for gantry crane Features:
The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area,
high-performance conductivity, good heat dissipation, big bending moment, high bending strength, ect.
Strict selection of materials
The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability,small tolerance range, high product precision, easy installation, reliable performance
Small volume, variety of installation methods
Small occupying space, snap-in installation, convenient to use, easy to maintain
March mccb accessories overhead Crane 160A aluminum conductor bar for gantry crane Parameter:
| Conductor bar | Descriptions | Descriptions | Descriptions | Descriptions | Descriptions | Descriptions | |
| Model No. | MCCB II-160-AL | MCCB II-200-AL | MCCB II-250-AL | MCCB II-315-AL | MCCB II-400-AL | MCCB II-500-AL | |
| Amperage | 160A | 200A | 250A | 315A | 400A | 500A | |
| Sectional area | 102mm2 | 104mm2 | 110mm2 | 120mm2 | 157mm2 | 196mm2 | |
| Conductor bar material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | |
| Material Class | 6101A | 6101A | 6101A | 6101A | 6101A | 6101A | |
| Maximum Voltage | AC | 550V | 550V | 550V | 550V | 550V | 550V |
| DC | 700V | 700V | 700V | 700V | 700V | 700V | |
| Full load permissible temperature | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | |
| Covers flame test | Self-extinguishing | Self-extinguishing | Self-extinguishing | Self-extinguishing | Self-extinguishing | Self-extinguishing | |
| Standard length of bar | 4.5m | 4.5m | 4.5m | 4.5m | 4.5m | 4.5m | |
| Hanger clamp spacing | Horizontal | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m |
| Lateral | 1.125m | 1.125m | 1.125m | 1.125m | 1.125m | 1.125m | |
| Minimum phase spacing | Horizontal | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Expansion sections not required for runs less than | 150m | 150m | 150m | 150m | 150m | 150m | |
| Maximum running speed | 200 | 200 | 200 | 200 | 200 | 200 | |
| Minimum bending radius ( Horizontal only) | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | |
| Weight | 1.98kg | 2.13kg | 2.19kg | 2.32kg | 2.81kg | 3.11kg | |
detailed information
Packaging & Shipping
Application
Company Information
FAQ
| 1:what's your advantages : |
| Direct Professional Factory , High Quality ,Low Price , Best Choice for you . |
| 2.Can I get some sample? |
| Yes, Free samples will be pleasantly offered to you to check the quality before placing the order. |
| 3: Is small order accepted? |
| Yes, a small order is accepted.You can take a trial order first, then we will try our best to earn your trust, for what we want is a long-term cooperation in the future! |
| 4: Can you guarantee the quality? |
| Yes, we can, you can pay the balance after checking the quality of the finished goods. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully inspected before it's packed for shipment. |
| 5:Can you accept visiting the factory? |
| Yes, welcome to visit our factory in Xinxiang city, Henan Province, China! We will book hotel and arrange pick up and host you . |
| 6:What's your trade terms? |
| It is as per customers' request: FOB Chinese seaport/ CIF destination port or other trade terms can be accepted. |
| 7:What's your payment terms? |
| A: FOB: 30%T/T deposit, 70%T/T before the delivery of goods. |
| 8:Does the packaging safe and arrive in good conditions? |
| Yes, Safe packing is guaranteed. All goods will arrive your door under good conditions. |
