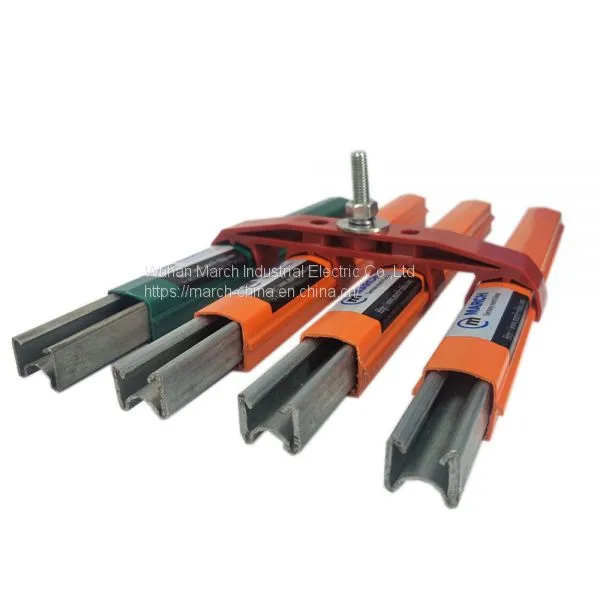

March Electrical Equipment Supplies 60A-125A Conductor Busbar System for Crane
US$ 8.98 - 9.98
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
March
Place of Origin:
China
Model Number:
MCCBII-FE
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan, shanghai, shenzhen,guangzhou
Delivery Detail:
7 days
Related Products
-
March Overhead Crane 160A-400A Tinner Copper Bar Bus Bars for Gantry Crane and Jib CraneUS$ 32 - 58MOQ: 10 Pieces -
March Low Cost 630a-2500a Gantry Crane Aluminium Conductor Bus Bars for Jib Crane and HoistsUS$ 28 - 58MOQ: 20 Pieces
-
March Electric Equiments Supplier Carne Parts Aluminum Conductor Busbar System for CraneUS$ 12.88 - 26MOQ: 20 Pieces
-
March Galvanized Steel 60A 100A 125A Gantry Crane Conductor Bus Bar SystemUS$ 8.8 - 12.8MOQ: 10 Pieces
-
March 100amp to 500amp Aluminum Safety Conductor Bus Bar Power Rail for Moverable DeviceUS$ 9.98 - 18.89MOQ: 20 Pieces
Brand Name
March
Place of Origin
China
Model Number
MCCBII-FE
March electrical equipment supplies 60A-125A conductor busbar system for crane
Description
MCCBII series of conductor bar systems are made from galvanized steel. It can be used for -35℃- 125℃ ambient environments. It is widely used in automobile manufacturing, cooking, metallurgy, hoisting machinery, automated production lines, automatic, storage system,port, air port, shipbuilding, power generation, petrochemical indusry, paper-making, rapid rail transit system, play ground and many other areas.
Specification
| Conductor bar | Descriptions | |||
| Model No. | MCCBII-60A-FE | MCCBII-100A-FE | MCCBII-125-FE | |
| Amperage | 60A | 100A | 125A | |
| Sectional area | 50mm2 | 63mm2 | 93mm2 | |
| Conductor bar material | Galvanized steel | |||
| Material Class | Z2 | |||
| Maximum Voltage | AC | 550V | 550V | 550V |
| DC | 700V | 700V | 700V | |
| Resistance(DC) | 0.003584 | 0.002867 | 0.001993 | |
| Impedance(AC) | 0.003604 | 0.002891 | 0.001968 | |
| Full load permissible temperature | 25℃ | 25℃ | 25℃ | |
| Covers flame test | Self-extinguishing | |||
| Standard length of bar | 4.5m | 4.5m | 4.5m | |
| Hanger clamp spacing | Horizontal | 1.5m | 1.5m | 1.5m |
| Lateral | 1.125m | 1.125m | 1.125m | |
| Minimum phase spacing | Horizontal | 43mm | 43mm | 43mm |
| Expansion sections not required for runs less than | 150m | 150m | 150m | |
| Maximum running speed | 200 | 200 | 200 | |
| Minimum bending radius ( Horizontal only) | 1.5m | 1.5m | 1.5m | |
| Weight | 2.41kg | 2.83kg | 3.89kg | |
| Order No. | 11001 | 11201 | 11301 | |

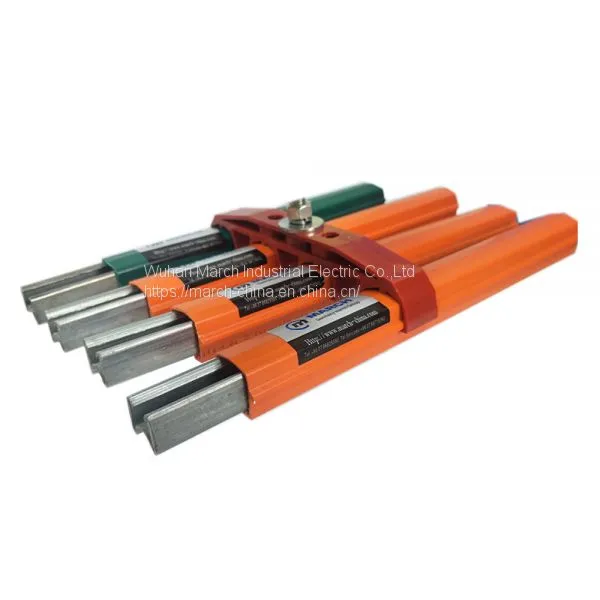

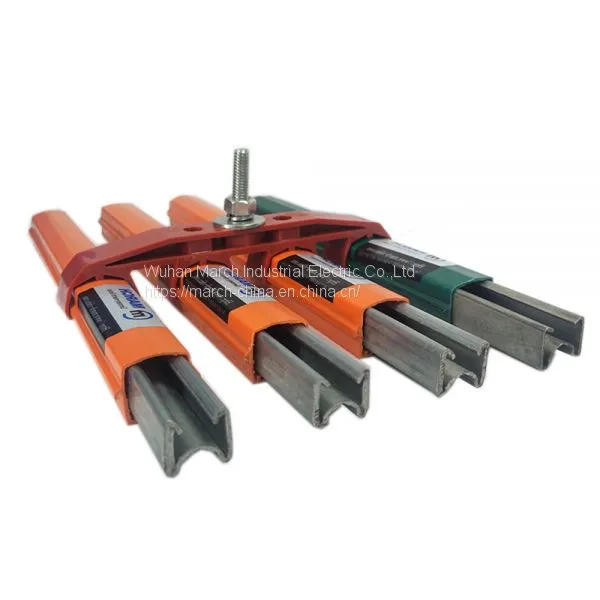

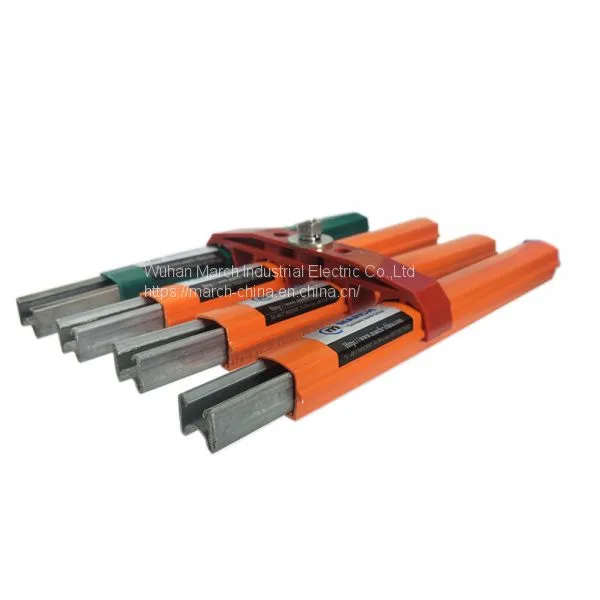

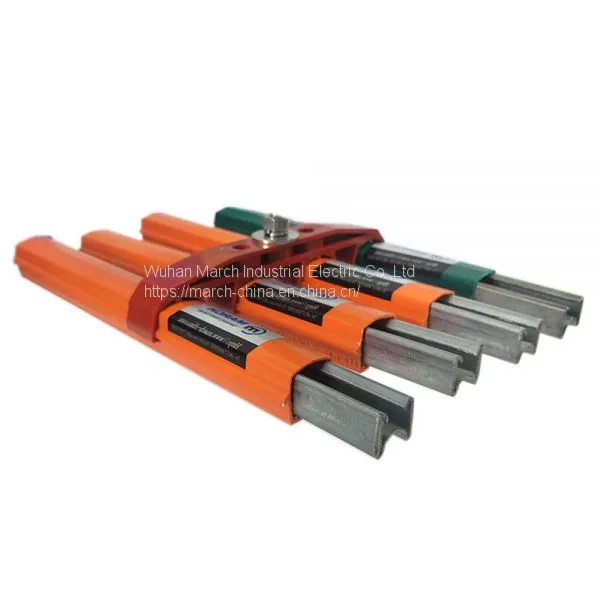

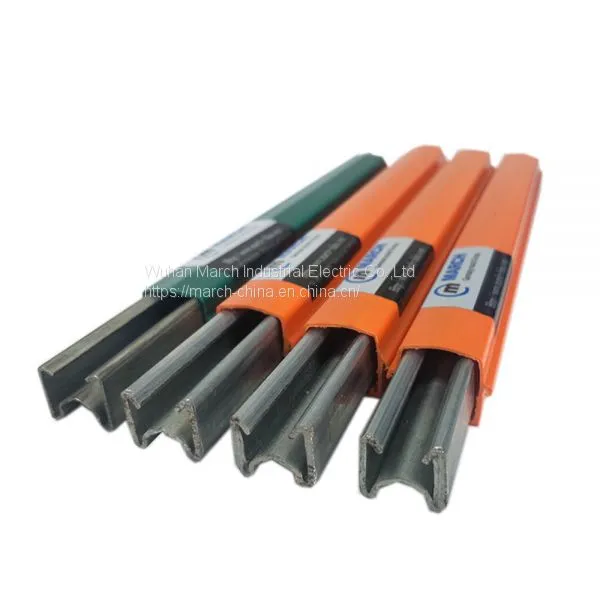

Images

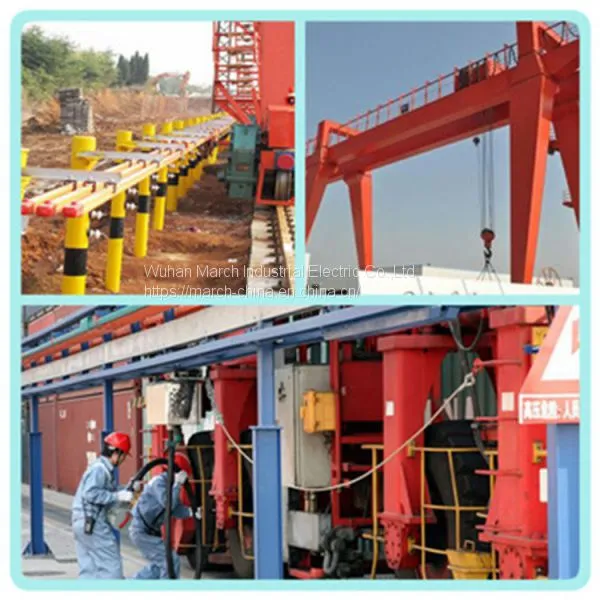

Application
Company information and cetificates
Related accessories
contact information
