Product Description
MCCBII series of conductor bar systems are made from galvanized steel. It can be used for -35℃- 125℃ ambient environments. It is widely used in automobile manufacturing, cooking, metallurty, hoisting machinery, automated production lines, automatic, storage system,port, air port, shipbuilding, power generation, petrochemical indusry, paperkmaking, rapid rail transit system, play ground and many other areas.

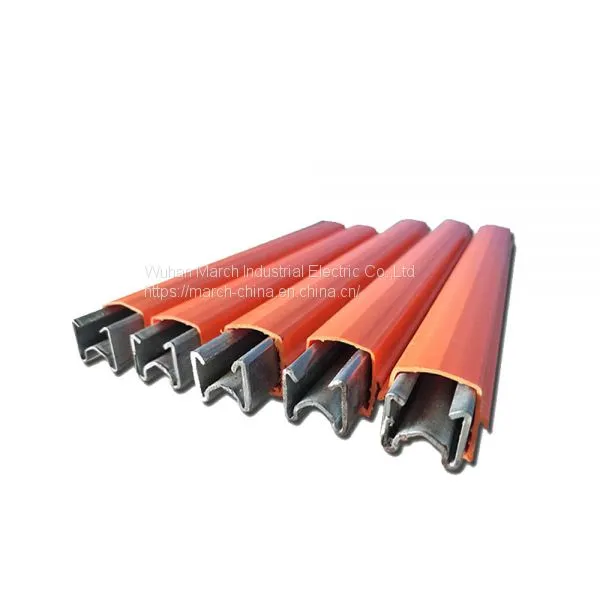

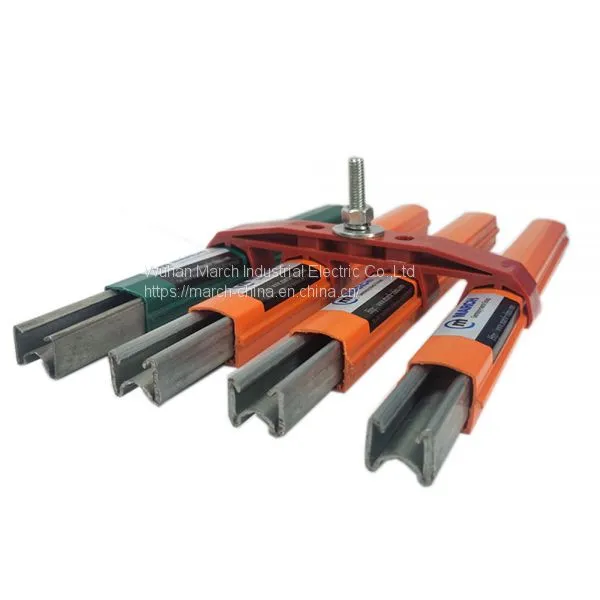

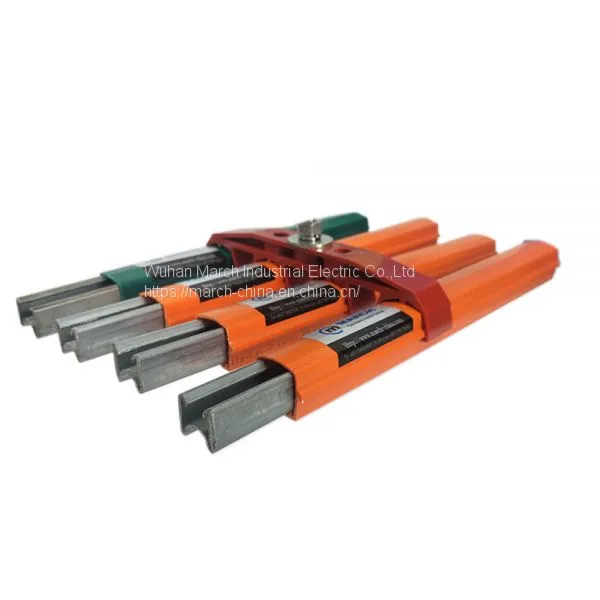

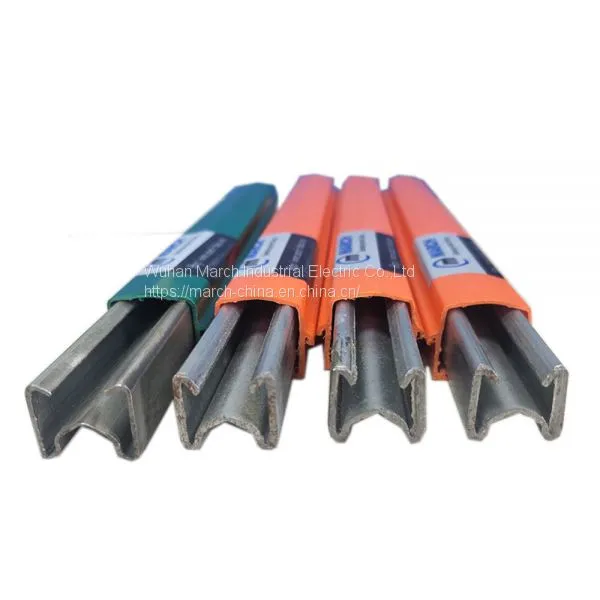

March Galvanized steel 60A 100A 125A gantry crane conductor bus bar system
| MCCBII Main Technical Parameter | Datas | |||
| Conductor bar | Descriptions | Descriptions | Descriptions | |
| Model No. | MCCB II-60A-FE | MCCB II-100A-FE | MCCB II-125-FE | |
| Amperage | 60A | 100A | 125A | |
| Sectional area | 50mm2 | 63mm2 | 93mm2 | |
| Conductor bar material | Galvanized steel | Galvanized steel | Galvanized steel | |
| Material Class | Z2 | Z2 | Z2 | |
| Maximum Voltage | AC | 550V | 550V | 550V |
| DC | 700V | 700V | 700V | |
| Full load permissible temperature | 25℃ | 25℃ | 25℃ | |
| Covers flame test | Self-extinguishing | Self-extinguishing | Self-extinguishing | |
| Standard length of bar | 4.5m | 4.5m | 4.5m | |
| Hanger clamp spacing | Horizontal | 1.5m | 1.5m | 1.5m |
| Lateral | 1.125m | 1.125m | 1.125m | |
| Minimum phase spacing | Horizontal | 43mm | 43mm | 43mm |
| Expansion sections not required for runs less than | 150m | 150m | 150m | |
| Maximum running speed | 200 | 200 | 200 | |
| Minimum bending radius ( Horizontal only) | 1.5m | 1.5m | 1.5m | |
| Weight | 2.41kg | 2.83kg | 3.89kg | |
Advantages:
1. Computer Optimized design
Low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength.
2. Strict selection of materials
The covers are made from metaldehyde and brilliant in high intension, aging resistance.
Good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance.
3. Small volume, variety of installation methods
Small occupying space,snap-in installation, convenient to use, easy to maintain.

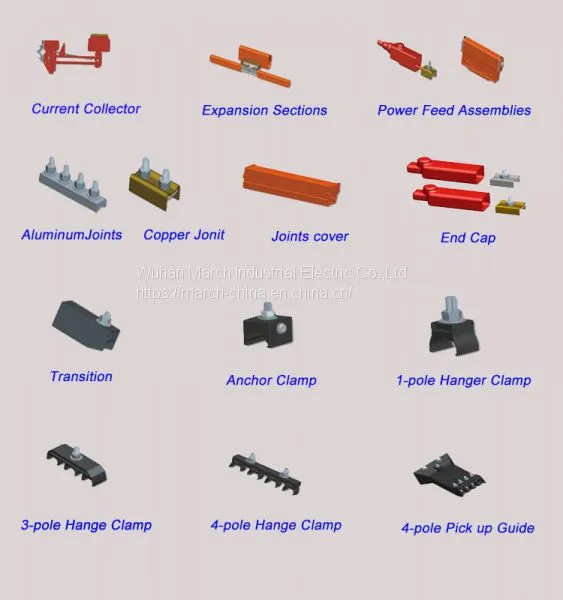

The current collector contact shoes are made from alloy, to make sure continuous power supply and good abrasive resistance.
March indoor used 60a bus bar conductor for bridge crane and hoist components

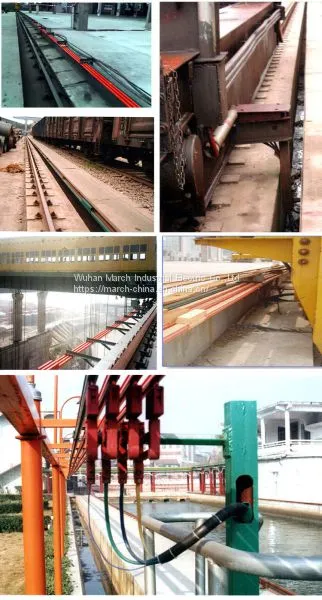

March Galvanized steel 60A 100A 125A gantry crane conductor bus bar system applications
