Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon

HDV Photoelectron Technology Co.,LTD
Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon thumbnail-1
Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon thumbnail-2
Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon thumbnail-3
Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon thumbnail-4
Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon thumbnail-5
Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon photo-1

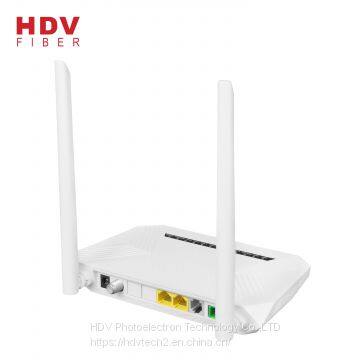

Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon photo-2
Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon photo-3

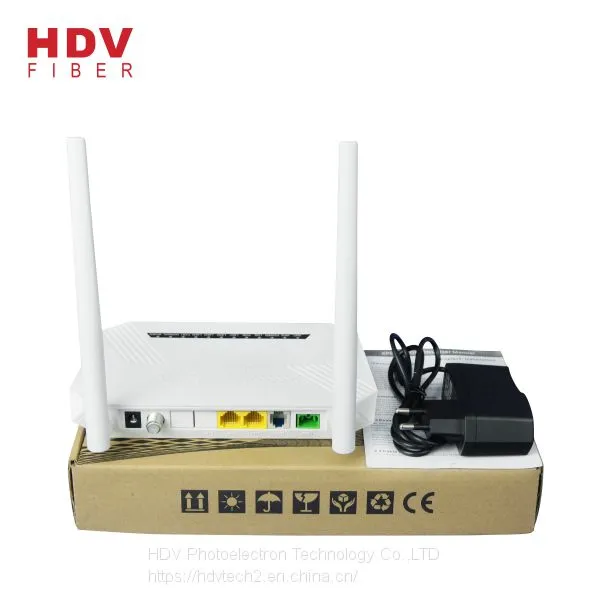

Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon photo-4

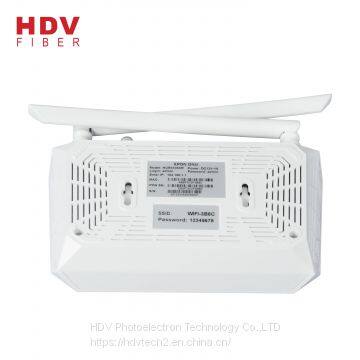

Best Price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon photo-5
US$ 20 - 27 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
HUR3107XR
Place of Origin:
China
Model Number:
HUR3107XR
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUR3107XR
Place of Origin China
Model Number HUR3107XR

Best price ONU Gpon Wifi Modem English Firmware 1Ge+1Fe+Wifi+Catv EPON Onu Ont Gpon

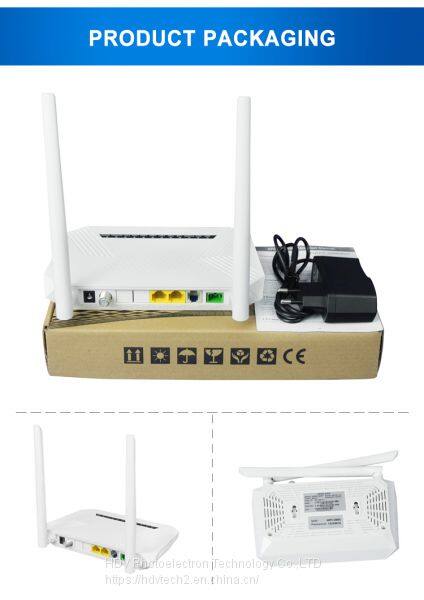

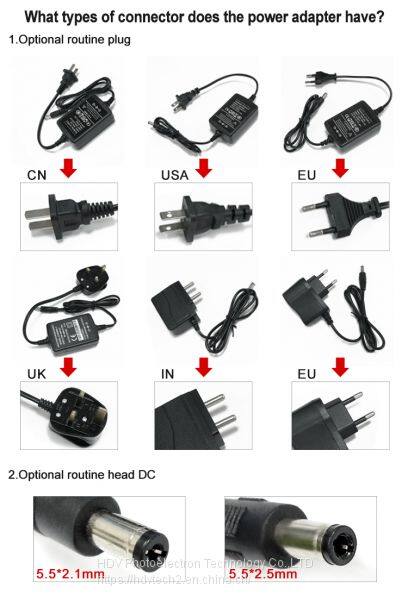

Power adapter

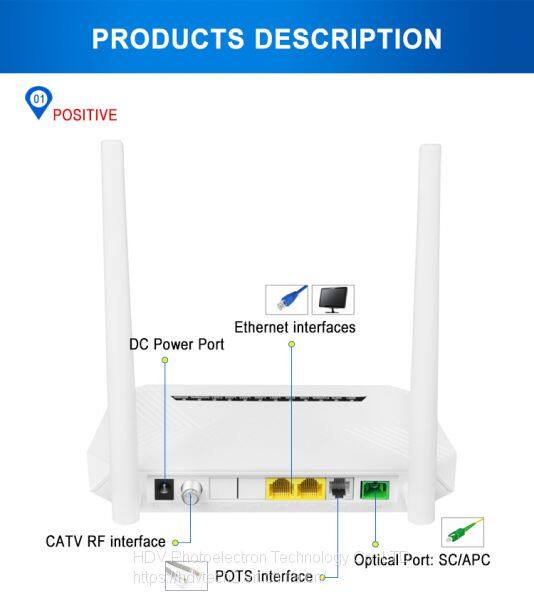

Products Description

1. Overview
*HUR3107XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class
FTTH application provides different services access.
*HUR3107XR is based on mature and stable, cost-effective XPON technology.
*HUR3107XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification


Technical item
Details


PON Interface
1 GPON BOB （Class B+/Class C+）
Receiving sensitivity:≤-27dBm/≤-29dBm
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
Transmission distance: 20KM
Wavelength
TX: 1310nm, RX: 1490nm
Optical Interface
SC/APC Connector
Design Scheme
RTL9603C+RTL8192FR BOB(i7525BN)
Chip Spec
CPU 950MHz,DDR2 128MB
Flash
SPI Nor Flash 16MB
LAN Interface
1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector


Wireless
Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM


CATV Interface
RF, WDM, optical power : +2~-15dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: 78dBuV
AGC range: -13~+1dBm
MER: ≥32dB@-15dBm
LED
9 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、 Worn、 Normal(CATV)
Push-Button
3,For Function of Reset, WLAN, WPS

Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）

Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power Supply
DC 12V/1A
Power Consumption
≤6W
Dimension
180mm×107mm×28mm（L×W×H）
Net Weight
0.2Kg

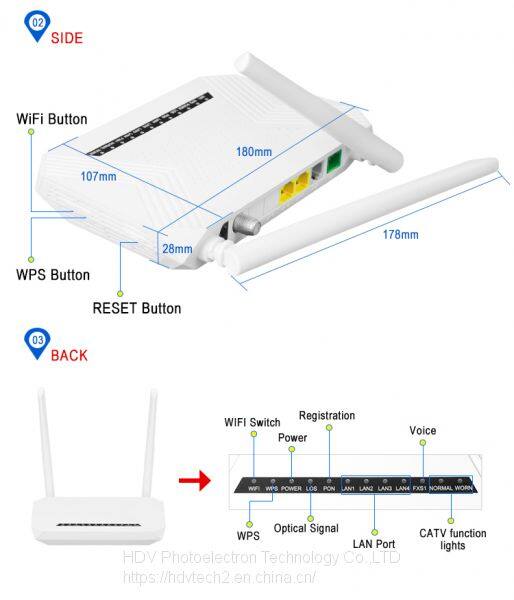

4. Panel lights Introduction


Pilot Lamp
Status
Description


WIFI
On
The WIFI interface is up.
Blink
The WIFI interface is sending or/and receiving data (ACT).
Off
The WIFI interface is down.


WPS
Blink
The WIFI interface is securely establishing a connection.
Off
The WIFI interface does not establish a secure connection.


PWR
On
The device is powered up.
Off
The device is powered down.


LOS
Blink
The device doses not receive optical signals or with low signals.
Off
The device has received optical signal.


PON
On
The device has registered to the PON system.
Blink
The device is registering the PON system.
Off
The device registration is incorrect.


LAN1~LAN2
On
Port (LANx) is connected properly (LINK).
Blink
Port (LANx) is sending or/and receiving data (ACT).
Off
Port (LANx) connection exception or not connected.
Worn
(CATV)
On
Input optical power is higher than 3dbm or lower than -15dbm
Off
Input optical power is between -15dbm and 3dbm
Normal
(CATV)
On
Input optical power is between -15dbm and 3dbm
Off
Input optical power is higher than 3dbm or lower than -15dbm

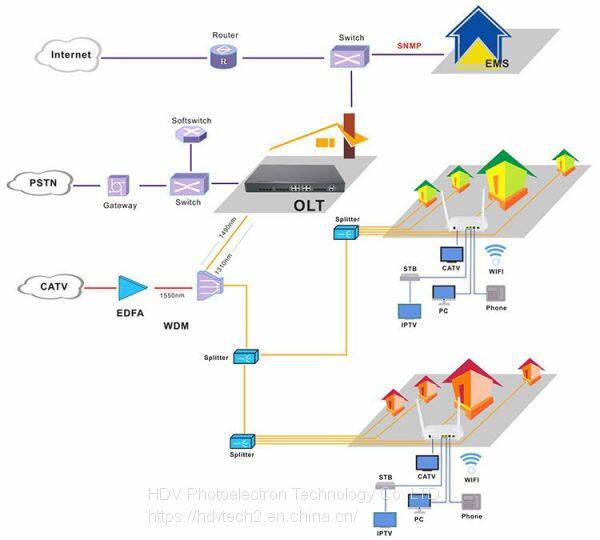

5.Application
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
