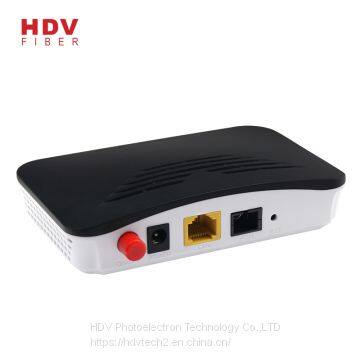

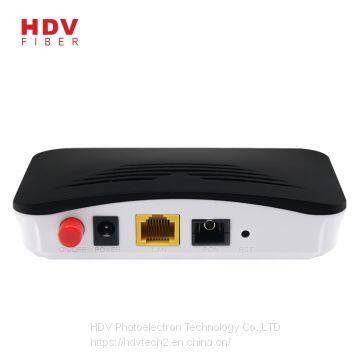

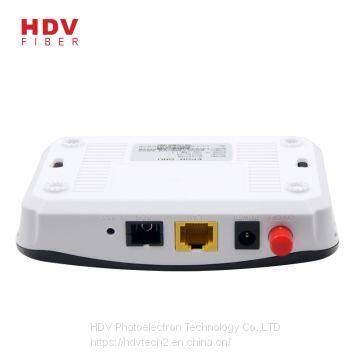

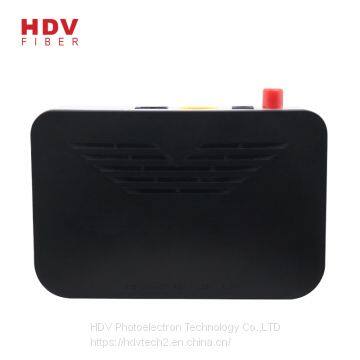

High Quality Epon onu Very Low Price Compatible Bdcom Fiberhome ZTE 1.25G Epon Gpon Onu
Function:
Color is optional
Router mode supports PPPoE/DHCP/ static IP
Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading EMS network management based on SNMP ,convenient for
maintenance
ONU Datasheet:
Item |
Parameter |
|
|

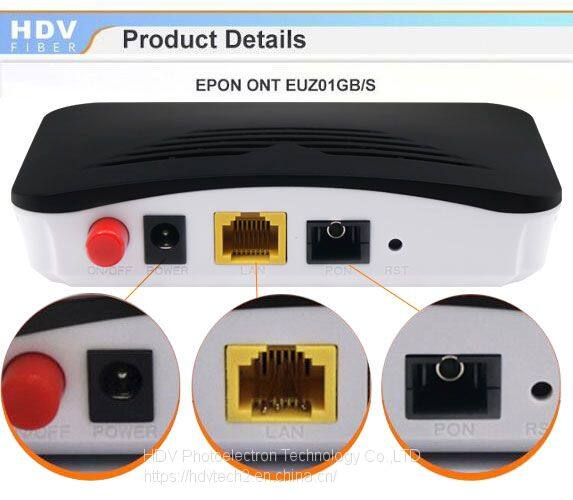

Interface |
PON Interface |
1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric1.25Gbpsupstream/downstream SC single-mode fiber
split ratio:1:64
Transmission distance 20KM |
|
User Ethernet Interface |
1*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
|
Power Interface |
12V DC Power supply |
|
|
Performance Parameters |
PON
Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125 single-mode fiber |
|
Data Transmission Parameter |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps, 1000Mbps
Packet Loss Ratio: |
|
|
Gateway |
Router mode supports PPPoE/DHCP/ static IP WAN support Route rand Bridge mode WAN support Internet,VoIP,IPTV,TR069 LAN supports DHCP and static IP Support NAT and NAPT Support UPnP |
|
