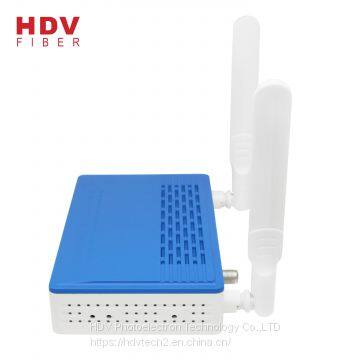

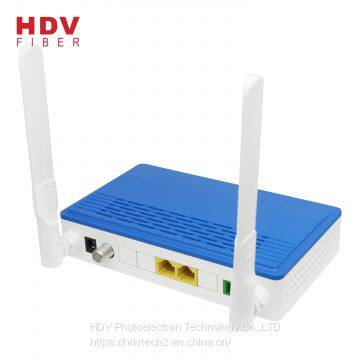

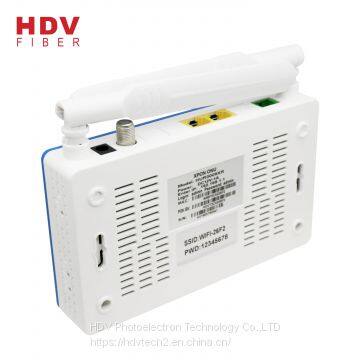

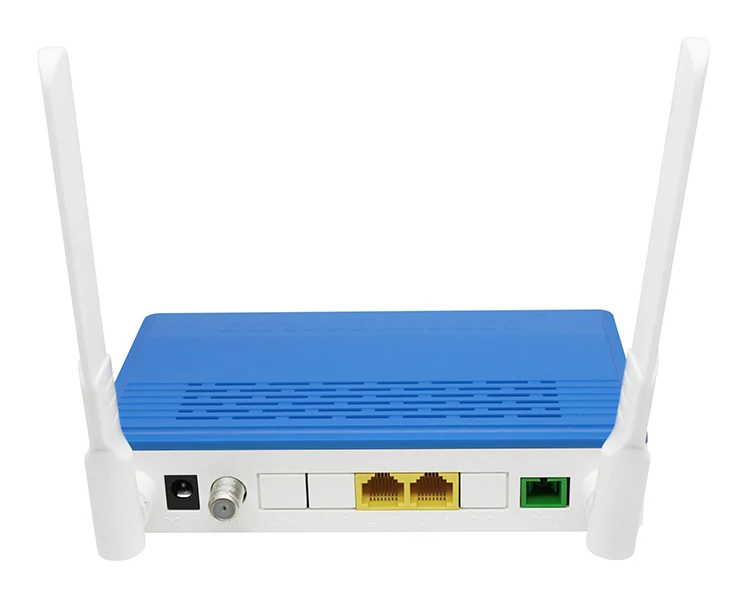

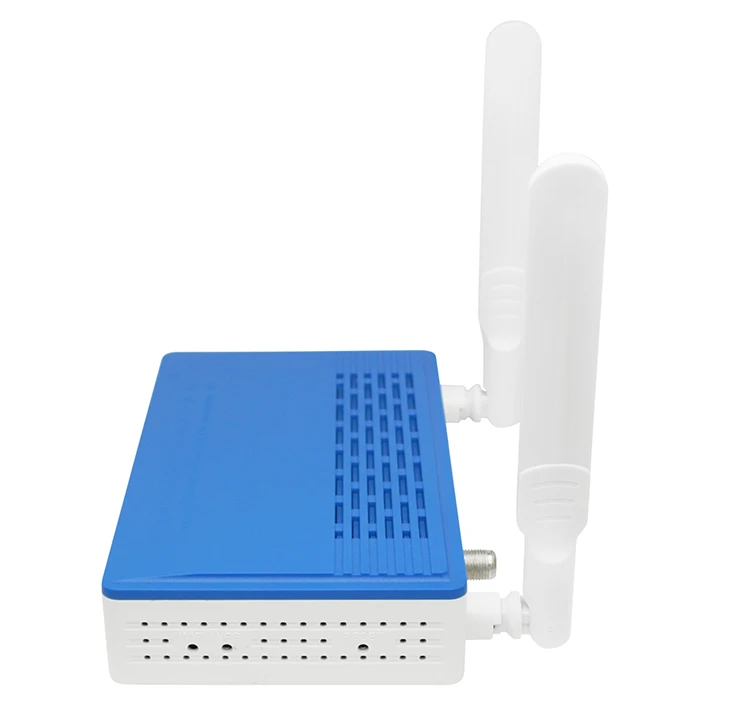

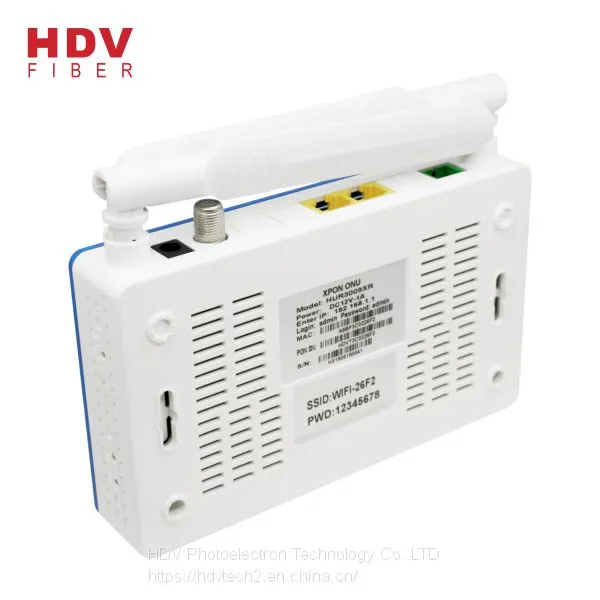

solution Dual Mode 1G1F Xpon Onu/ont With Catv And Wifi
1. Overview
1G1F+WIFI+CATV series is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by HDV, The carrier-class FTTH application provides data service access.
1G1F+WIFI +CATV series is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
1G1F+WIFI +CATV series adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of ITU-TG.984.X.
1G1F+WIFI+CATV series is designed by Realtek chipset 9603C.
2.Functional Feature
Support EPON and GPON Mode, and switch mode automatically
Support ONU auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA
Support port Isolation and port vlan configuration
Support Firewall function and IGMP snooping multicast feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Support CATV interface for Video Service
Specialized design for system breakdown prevention to maintain stable system
3.Hardware Specification
Technical item | Details |
PON Interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) |
Receiving sensitivity: ≤-27dBm | |
Transmitting optical power: 0~+4dBm | |
Transmission distance: 20KM | |
Wavelength | Tx: 1310nm, Rx: 1490nm |
Optical Interface | SC/APC Connector |
LAN Interface | 1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
CATV Interface | RF, optical power : +2~-18dBm |
Optical reflection loss: ≥45dB | |
Optical receiving wavelength: 1550±10nm | |
RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
RF output level: 78dBuV | |
AGC range: 0~-15dBm | |
MER: ≥32dB@-15dBm | |
Wireless | Compliant with IEEE802.11b/g/n, |
Operating frequency: 2.400-2.4835GHz | |
support MIMO, rate up to 300Mbps, | |
2T2R,2 external antenna 5dBi, | |
Support: Multiple SSID | |
Channel: Auto | |
Modulation type: DSSS, CCK and OFDM | |
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
LED | 13, For Status of POWER, LOS, PON, SYS, LAN1~LAN2 ,WIFI, WPS, Internet, Worn, Normal(CATV) |
Push-Button | 3,For Function of Reset, WLAN, WPS |
Operating Condition | Temperature: 0℃~+50℃ |
Humidity: 10%~90%(non-condensing) | |
Storing Condition | Temperature: -30℃~+60℃ |
Humidity: 10%~90%(non-condensing) | |
Power Supply | DC 12V/1A |
Power Consumption | ≤6W |
Dimension | 155mm×92mm×34mm(L×W×H) |
Net Weight | 0.24Kg |

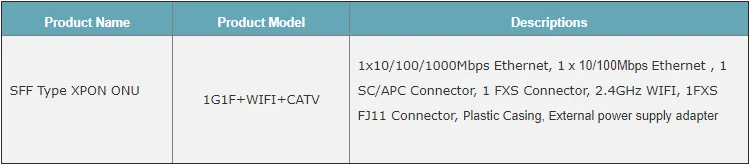

4.Ordering information
5.Application
Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Business:INTERNET,IPTV,VOD,Voip,IP Camera,CATV etc
