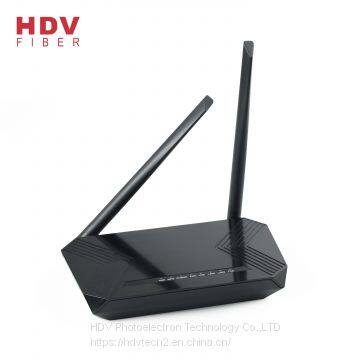

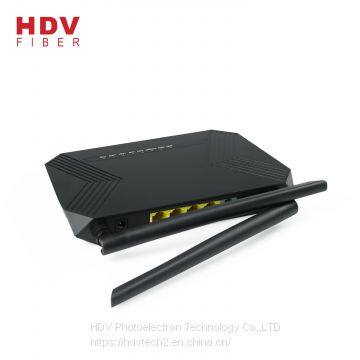

Help CenterBoth GPON And EPON XPON WIFI ONU 1GE+3FE+Pots Family Gateway With 2 Antennas
Related Products
-
Add to CompareShare Network Equipment 1G3F+ Catv+Voice Port Ont Witihout Wifi XPON ONUUS$ 22 - 29MOQ: 100 Pieces -
New Product Fiber Optic Without Antenna Gpon 1 Ge Xpon ONUUS$ 13 - 17MOQ: 100 Pieces
-
Single Fiber 1GE+1FE+WIFI+CATV Router XPON/GPON/EPON ONUUS$ 23 - 29MOQ: 100 Pieces
-
OEM CATV XPON GPON ONU ONT 1G1F+WIFI+CATV Router PriceUS$ 23 - 29MOQ: 100 Pieces
-
2.4G+5G Dual Frequency WIFI FTTH 4GE+4WIFI+1POTS+1USB AC WIFI GPON ONU With English Operation InterfaceUS$ 33 - 40MOQ: 100 Pieces
1. Overview
1GE+3FE+WIFI+POTS series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by HDV, The carrier-class FTTH application provides data service access.
1GE+3FE+WIFI+POTS series is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
1GE+3FE+WIFI+POTS series adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of ITU-TG.984.X
1GE+3FE+WIFI+POTS series is designed by Realtek chipset 9603C
2.Functional Feature
Support EPON and GPON, and switch mode automatically.
Support ONU auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA
Support port Isolation and port vlan configuration
Support Firewall function and IGMP snooping multicast feature
Support LAN IP and DHCP Server configuration;
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Support Pots interface for VoIP Service
Specialized design for system breakdown prevention to maintain stable system
3.Hardware Specificaion
Technical item |
Details |
PON Interface |
1 GPON/EPON port(EPON PX20+ and GPON Class B+) |
Receiving sensitivity: ≤-27dBm | |
Transmitting optical power: 0~+4dBm | |
Transmission distance: 20KM | |
Wavelength |
Tx: 1310nm, Rx: 1490nm |
Optical Interface |
SC/APC Connector |
POTS interface |
1 FXS, RJ11 connector |

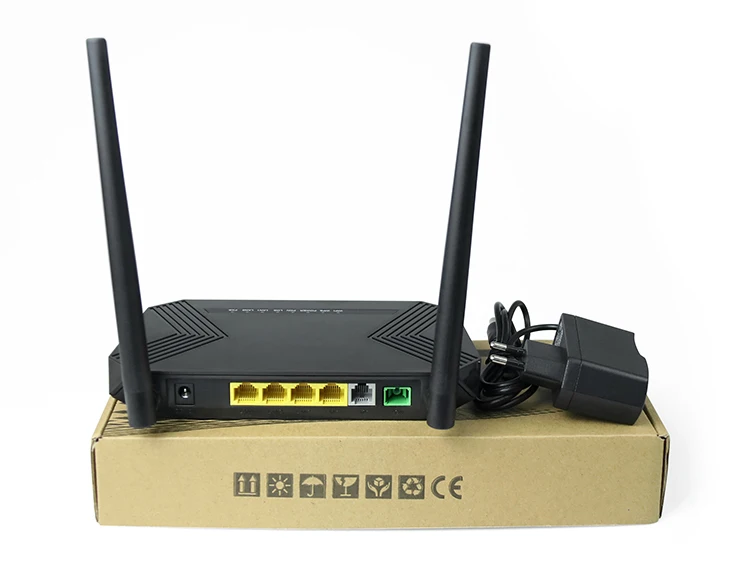

LAN Interface |
1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
Wireless |
Compliant with IEEE802.11b/g/n, |
Operating frequency: 2.400-2.4835GHz | |
support MIMO, rate up to 300Mbps, | |
2T2R,2 external antenna 5dBi, | |
Support: Multiple SSID | |
Channel: Auto | |
Modulation type: DSSS, CCK and OFDM | |
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
LED |
12, For Status of POWER, LOS, PON, SYS,LAN1~LAN4 ,WIFI, WPS, Internet, FXS |
Push-Button |
3,For Function of Reset, WLAN, WPS |
Operating Condition |
Temperature: 0℃~+50℃ |
Humidity: 10%~90%(non-condensing) | |
Storing Condition |
Temperature: -30℃~+60℃ |
Humidity: 10%~90%(non-condensing) | |
Power Supply |
DC 12V/1A |
Power Consumption |
≤6W |
Dimension |
155mm×92mm×34mm(L×W×H) |
Net Weight |
0.24Kg |
4.Ordering information
Product Name |
Product Model |
Descriptions |
SFF Type XPON ONU |
1GE+3FE+WIFI+POTS |

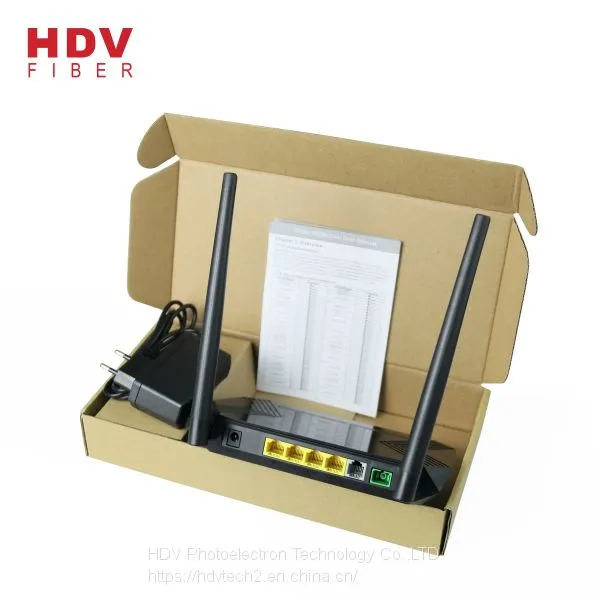

1x10/100/1000Mbps Ethernet, 3 x 10/100Mbps Ethernet , 1 SC/APC Connector, 1 FXS Connector, 2.4GHz WIFI, Plastic Casing, External power supply adapter |
5.Application
Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Business:INTERNET,IPTV,VOD,IP Camera, VoIP etc
