Help Center22213-EK Spherical Roller Bearing With Tapered Bore 65*120*31mm SUNBEARING
Related Products
-
24018 Spherical Roller Bearing SUNBEARINGNegotiableMOQ: 1 Piece -
SUNBEARING Made In China High Precision Spherical Roller Bearings 22213CANegotiableMOQ: 1 Piece
-
SUNBEARING 22232 CA C3 W33 Spherical Roller BearingNegotiableMOQ: 1 Piece
-
SUNBEARING Chinese Factory Aligning Spherical Roller Bearing 24144CANegotiableMOQ: 1 Piece
-
23030 C3 Double Row Spherical Roller Bearing 150*225*56mmUS$ 55 - 100MOQ: 1 Piece
| Bore diameter: | 65 mm | Basic dynamic load rating | 198 kN |
| Outside diameter: | 120 mm | Basic static load rating | 216 kN |
| Overall width: | 31 mm | Fatigue load limit | 24 kN |
| Rows of Rollers | Double | Reference speed | 5000 r/min |
| Outer ring type: | Unsplit | Limiting speed | 7000 r/min |
| Radial clearance class | C3 Internal Clearance(Higher than Cn) | Mass | 1.5 kg |
| Closure type: | Open |
r1,2 Tapered bore, taper 1:12 |
min. 1.5 mm |
| Material | Chrome Steel | K | 3 mm |
| Cage Material | Sheet Steel | Da | max. 111 mm |
| Bore | K - 1:12 Tapered Bore (Standard for Most Types) | ra | max. 1.5 mm |

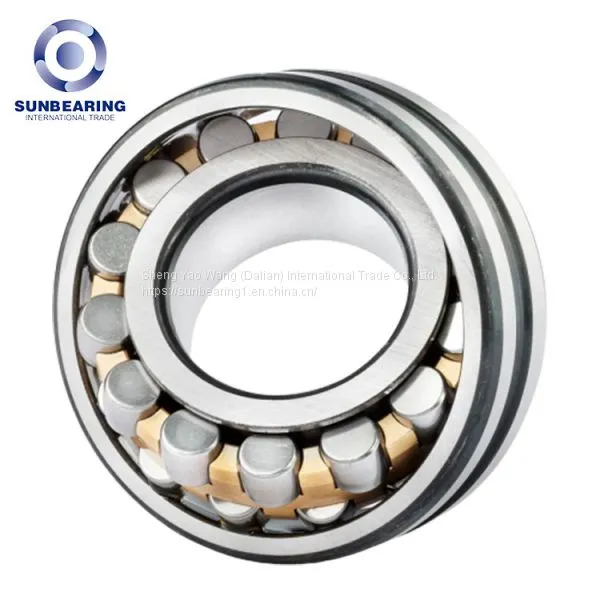

22213EK Spherical Roller Bearing 65x120x31
Spherical Roller Bearings are manufactured for the most demanding bearing applications. Manufactured using 2 rows of rollers using a common spherical outer raceway and two inner ring raceways they are self-aligning and therefore insensitive to shaft misalignment, deflection, or bending.
Bore Type: Tapered Bore - Adaptor Sleeve Require: H313
Bearing is self-aligning
Insensitive to angular misalignment
Accommodates combined loads
Three-piece cage so roller sets can operate independently of each other
Produced in the cylindrical and tapered bore
Bearings for vibratory applications available
Main applications: papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox bearing seats, rolling mill rolls, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical self-aligning bearings.
Spherical Roller Bearing ClearanceFor the installation axial clearance of the spherical roller bearing, it can be adjusted with the adjusting nut on the journal, the adjusting washer and the thread in the bearing seat hole, or the pre-tensioned spring.
The size of the axial clearance is related to the arrangement of the bearing, the distance between the bearings, and the material of the shaft and the bearing seat, and can be determined according to the working conditions.
