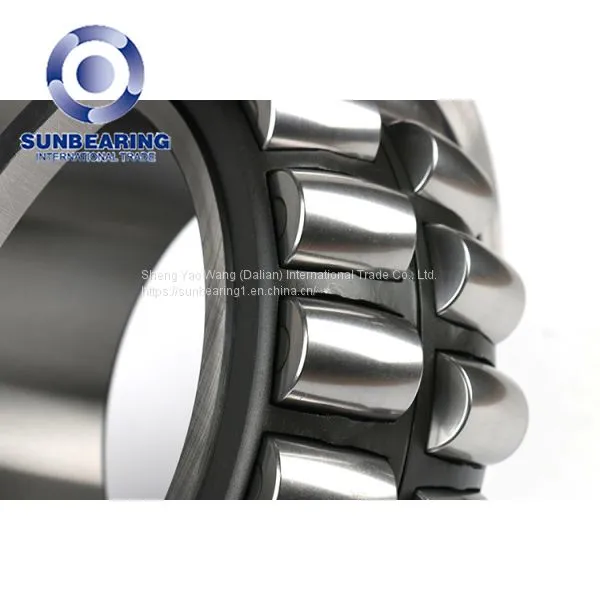

Help Center23144 CC Spherical Roller Bearing 220*370*120mm Double Row
Related Products
-
22318 CC/W33 Spherical Roller Bearing 90*160*40mm With Cylindrical Bore SUNBEARINGUS$ 5 - 10MOQ: 1 Piece -
22217 EC3 Spherical Roller Bearing 85*150*36mm With Cylindrical Bore SUNBEARINGUS$ 27.86 - 35MOQ: 1 Piece
-
22314 Spherical Roller Bearing 70*150*51mm With Cylindrical Bore SUNBEARINGUS$ 33.71 - 50MOQ: 1 Piece
-
22213-EK Spherical Roller Bearing With Tapered Bore 65*120*31mm SUNBEARINGUS$ 78.87 - 100MOQ: 1 Piece
-
24018 Spherical Roller Bearing SUNBEARINGNegotiableMOQ: 1 Piece
| Bore diameter: | 220 mm | Maximum rpm: | 1700 RPM | |
| Outside diameter: | 370 mm | Operating temperature range: | Maximum of +390 °F | |
| Overall width: | 120 mm | Cage material: | Steel | |
| Bore type: | Straight | Bearing material: | Steel | |
| Outer ring type: | Not Split | Cage type: | Inner Ring Guided | |
| Internal clearance: | C0 | Precision rating: | Not Rated | |
| Closure type: | Open | Weight: | 51.5KG | |
| Lubrication hole type: | Lubrication Groove & Hole | Outer ring width: | 120 mm | |
| Dynamic load capacity: | 1800 kN | Fillet radius: | 3 mm | |
| Static load capacity: | 2750 kN | Series: | 231 |
Parallel Bore, CC (J) or CJ - Flangeless inner ring, guide ring centered on the inner ring, two stamped steel cages, Open - No seal, J - Stamped steel cage inner ring centered, W33 - Annular groove and three holes in the outer ring, Normal clearance (CN), Normal class tolerance (PN), 220, 370, 120.
23144 Spherical Roller Bearing FeaturesInherently self-aligning and very robust
Two rows of rollers make the bearings able to carry heavy loads
Invented by SKF and refined over the years, the present SKF range of spherical roller bearings includes a wide range of sizes of several ISO dimension series
Oil grooves and holes in the outer ring
Papermaking machinery, various types of industrial reducers, reduction gears, railway vehicle axles, rolling mill gearbox bearing housings, rolling mill rollers, crushers, vibrating screens, printing machinery, woodworking machinery, vertical self-aligning bearings.
