Help Center32215 Single Row Tapered Roller Bearing 75*130*33.25mm SUNBEARING
Related Products
-
351076 Double Rows Tapered Roller Bearing SUNBEARINGNegotiableMOQ: 1 Piece -
SUNBEARING Double Row Thrust Roller Bearing 351160NegotiableMOQ: 1 Piece
-
SUNBEARING 32012X Tapered Roller Bearing Chrome SteelNegotiableMOQ: 1 Piece
-
SUNBEARING Professional Mining Metallurgical Tapered Roller Bearing 32015NegotiableMOQ: 1 Piece
-
SUNBEARING Tapered Roller Bearing 32214 SilverNegotiableMOQ: 1 Piece
| Bore diameter: | 75 mm | Basic dynamic load rating | 197 kN |
| Outside diameter: | 130 mm | Basic static load rating | 212 kN |
| Overall width: | 33.25 mm | Reference speed | 4000 r/min |
| Rows of Rollers | Single | Limiting speed | 5000 r/min |
| Outer ring type: | Split | Operating temperature min. | -30 °C |
| Radial clearance class | C0 Standard Clearance | Operating temperature max. | 120 °C |
| Closure type: | Open | Mass | 1.67 kg |
| Material | Chrome Steel | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.43 |
| Cage Material | Sheet Steel | Dynamic axial load factor | 1.38 |
| Minimum chamfer dimension of the inner ring back face | 2 mm | Static axial load factor | 0.76 |

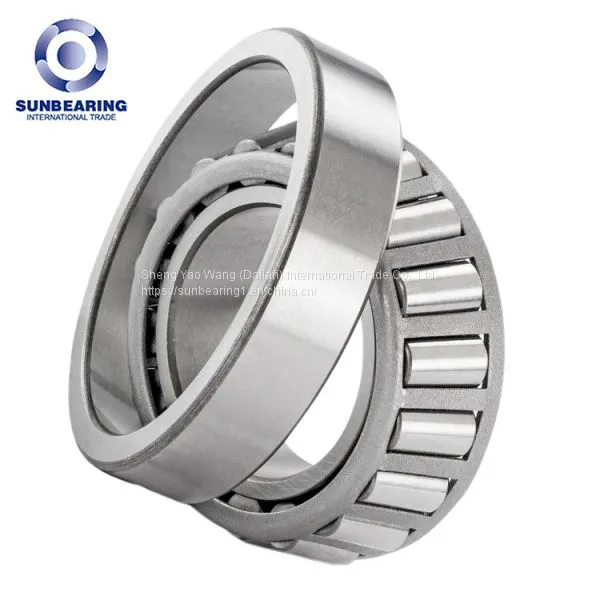

32215 bearing has tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements), and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
Tapered roller bearings are mainly used to bear combined radial and axial loads, mainly radial loads. Compared with angular contact ball bearings, the bearing capacity is large and the limit speed is low. Tapered roller bearings can withstand axial load in one direction and can limit axial displacement of the shaft or housing in one direction.
32215 Tapered Roller Bearing ApplicationIndustries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail, and wind.
Benefits:
Enhanced performance in demanding applications.
