Home > Products > spherical roller bearing > SUNBEARING Chinese Factory Aligning Spherical Roller Bearing 24144CA

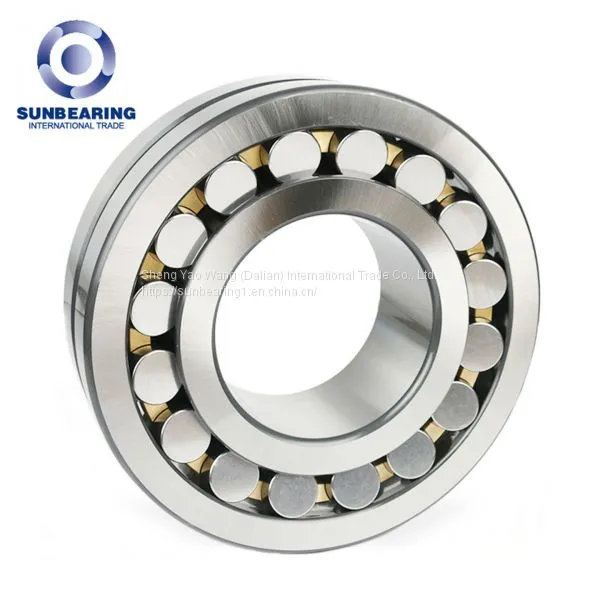

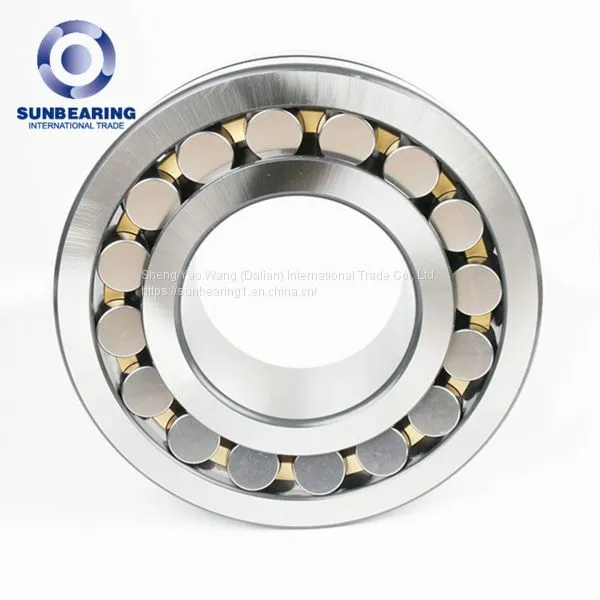

SUNBEARING Chinese Factory Aligning Spherical Roller Bearing 24144CA
- Dalian
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 14 days
You May Like
-
1214 Self-Aligning Ball Bearing SUNBEARING
-
SUNBEARING 1200 Mini Self-Aligning Ball Bearing Chrome Steel GCR15
-
SUNBEARING Self-Aligning Ball Bearing 2304 Silver Used For Machinery
-
SUNBEARING Self-Aligning Ball Bearing 1208 Stainless Steel GCR15
-
SUNBEARING 62204 rs Deep Groove Ball Bearing
-
SUNBEARING 61800 Miniature Deep Groove Ball Bearing Chrome Steel GCR15
Product Details
| Brand Name | SUN BEARING | Place of Origin | China | |
| Model Number | 24144 | Number of Row | Double Row | |
| Seals Type | OPEN | Precision Rating | P0 P6 P5 | |
| Outside Diameter | 219.99, 220 | Bore Size | 369.99, 370 |
Product Description
| Specifications |

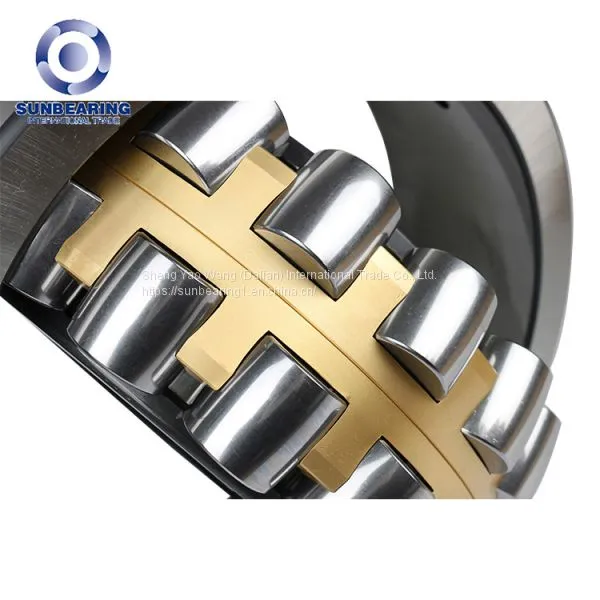

| Cage Tpye CA |
| Cage Material Brass |
Ring And Roller Material Cemented Steel GCr15 |
Weights 67.2Kgs |
| Dimensions |
| Bore Sizes d 220.00mm |
| Outside Diameter D 370.00mm |
| Inside And Outside Ring Width B 150.00mm |
| Radius Rs min 4.0mm |
| Basic Load Ratings |
| Cr Dynamic Load Rating(Two Raws) 1,640kN |
| C0r Static Load Rating 3,450kN |
| Factors |
| Reference Thermal Speed Rating(Grease) 500rpm |
| Reference Thermal Speed Rating(Oil) 650rpm |
| e-ISO Factor 0.39 |
| Y0-ISO Factor 1.7 |
| Y1-ISO Factor 2.6 |
| Y2-ISO Factor 1. |
Quality control of SUN Bearing for all bearing series
Each bearing is 100% inspection by qualified inspectors and instruments in all above processes.
SUN BEARING APPLICATION
Professional bearing supporting experience, to provide a number of factories bearing applications. Our products have been used in various equipment, such as: roller press, belt conveyor, blast furnace blower, continuous casting machine, roller table, hot rolling unit, cold rolling unit, drilling machine, pump, axial flow fan, air compressor and so on.
Focus on bearing production for 20 years, because of focus, so more professional.
SHIPPING&PACKING
A. Package instructions of SUN Bearing for all bearing series.
Commercial packaging: 1pc/plastic bag + color box + carton + pallet
Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet
Customized packaging solutions according to customers' requirements
High quality rubber cover: waterproof, wear-resisting, high temperature resistance,corrosion resistance
B. Shipping
By courier like EMS, DHL, UPS, TNT, Fedex
By air to air port
By sea to sea port
Select the best shipment mode after customers' confirmation through negotiations between us
Generally it is 3-15days if the goods are in stock. Or it is 10-45days if the goods are not in stock, it is subject to customers' quantity.
OTHER BEARINGS
SUN BEARING
Supply various types of bearings, such as spherical roller bearing, aligning ball bearing,cylindrical roller bearing,thrust bearing, tapered roller bearing,deep groove ball bearing,angular ball bearing,pillow block bearing and bearing cage.As well as non-standard bearings customized.
