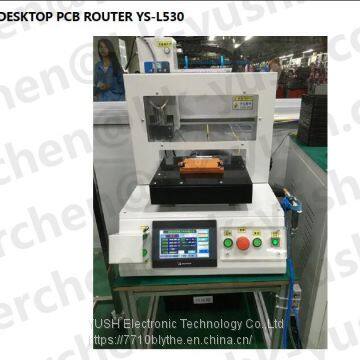

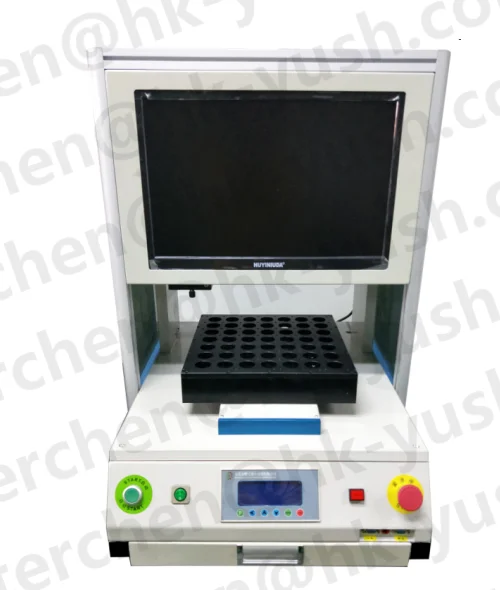

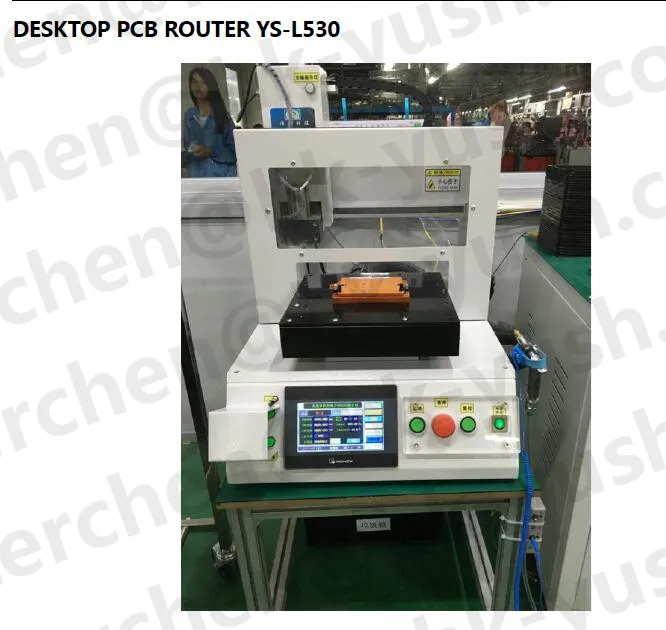

YSV-3A SMT Desktop high speed spindle Programming mode PCB LED Board Cutting Router

YSV-3A SMT Desktop high speed spindle Programming mode PCB LED Board Cutting Router

Technical Parameters:

1. Drive system motor: stepping motor

2. Spindle: high speed spindle

3. Cutting performance: 500mm / S

4. Repeated accuracy of driving system: ± 0.02mm

5. Cutting speed: max. 100mm / s depends on circuit board material and cutting quality

6. Resolution: ± 0.01mm

7. Configuration: X, Y, Z three axes, journey: 300 * 300 * 100mm, journey can also be customized.

8. Repeated cutting accuracy: <0.05mm, for the contour of straight line and curve

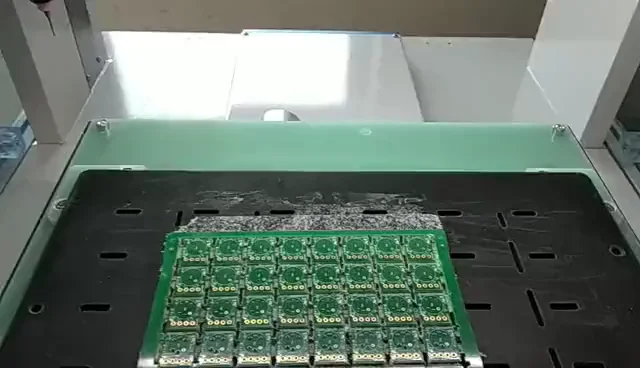

9. Circuit Board Location: Special or Standard Fixtures

10. Loading and unloading mode: manual mode

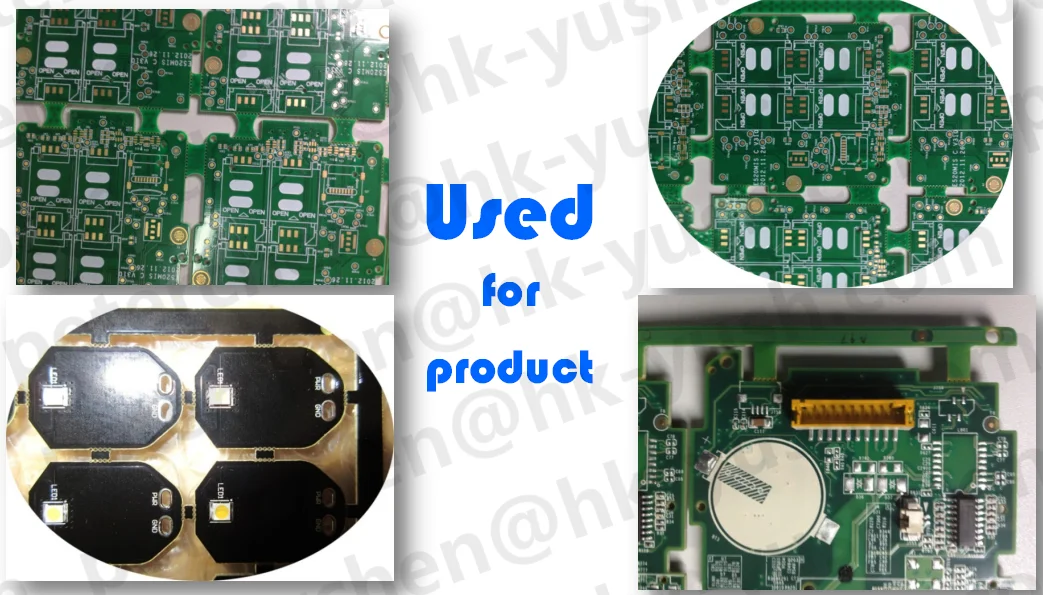

11. Thickness of circuit board: 0.4mm-4mm

12. Safety Settings: Emergency Stop Switch of the whole machine, Emergency Stop Switch of the spindle, Overheat of the spindle motor and overload detection of the servo motor

13. Spindle motor:

Power: 0.3kw

Maximum speed: 60000 rpm

Cooling mode: air cooling

14. Machine size: 650 * 550 * 615mm

15. Weight: 73kg

16. Programming mode: keypad input teaching

17. Data storage capacity: 100-200 groups of files

18. Control mode: microcomputer control, online teaching programming, CAD file import

19. Transmission mechanism: guide rail + screw rod (Taiwan)

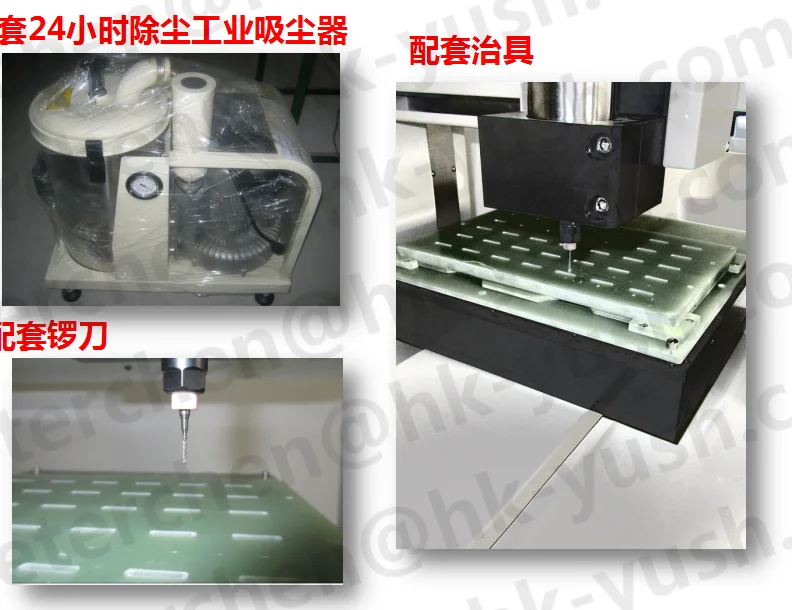

20. Vacuum cleaner: 1.5kw, 220V; size: 710 * 390 * 680mm; it can work continuously for 24 hours.

21. Vacuum method: lower vacuum

22. Safety measures: equipped with protective cover
