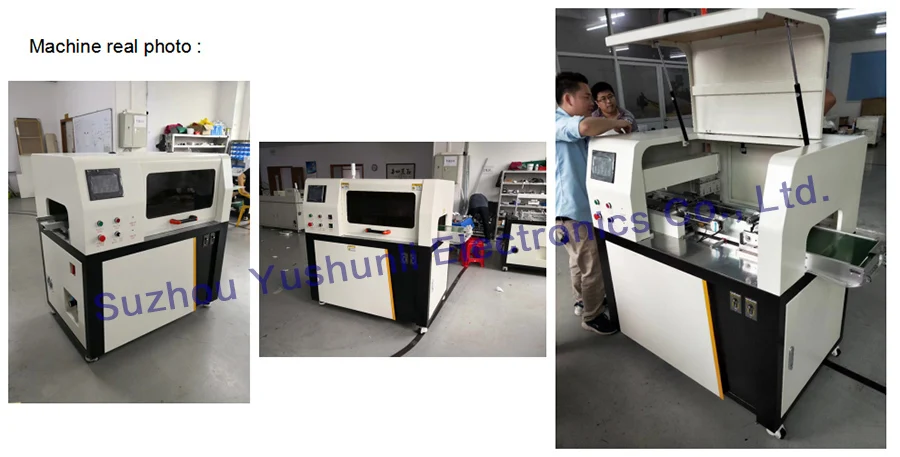

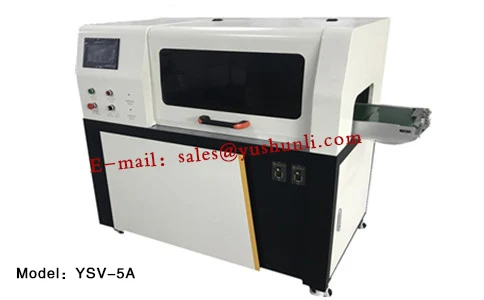

Automatic Double Directions PCB Splitting Machine

The YSV-5A automatic pcb depaneling machine is an automatic splitting machine with horizontal and vertical bidirectional sub-plates, which solves the problem that the PCB board needs secondary separated. Horizontal and vertical splitting for products such as bi-directional V-cut PCB boards, downlight  boards, and LED aluminum plate.Complete two-way cutting on one device at the same time, save time and effort, smooth cutting surface without burrs. At present, the sub-board machine on the market can only be divided into one-way boards, and there is no problem that can solve the problem that the bi-directional V-slot line PCB board is difficult. The YSV-5A automatic splitter perfectly interprets the two-way splitter without the need for manual secondary splitting.

Product introduction:

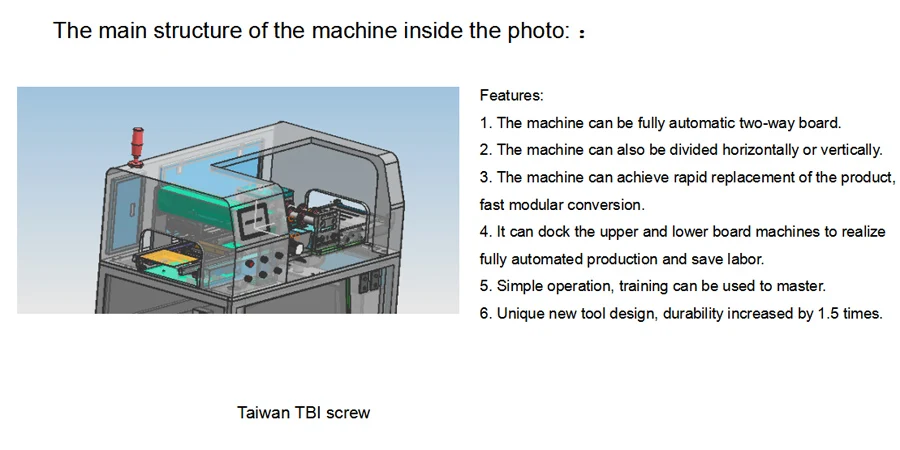

1. YSV-5A automatic double-direction splitting machine is a machine with two-way horizontal and vertical splitting plates. It solves the problem that the well-shaped V-groove PCB board needs to be divided into two sub-boards, and the operation is slow.
2. High degree of automation, before and after docking other equipment, truly unmanned, saving labor.
3. Touch-screen operation can quickly replace PCB products of different sizes. The back-end sub-boards are modularized. It takes only 10 minutes to replace the products, and the PLC data storage can reach 100 groups.
4. The device can be set as a single-direction sub-board, and the horizontal and vertical sub-boards can be completed in the touch screen of the device, and one machine is multi-purpose and more intelligent.
5. Vacuum cleaner (optional)

YUSH Electronic Technology Co.,Ltd  was founded in 2004,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

   Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
