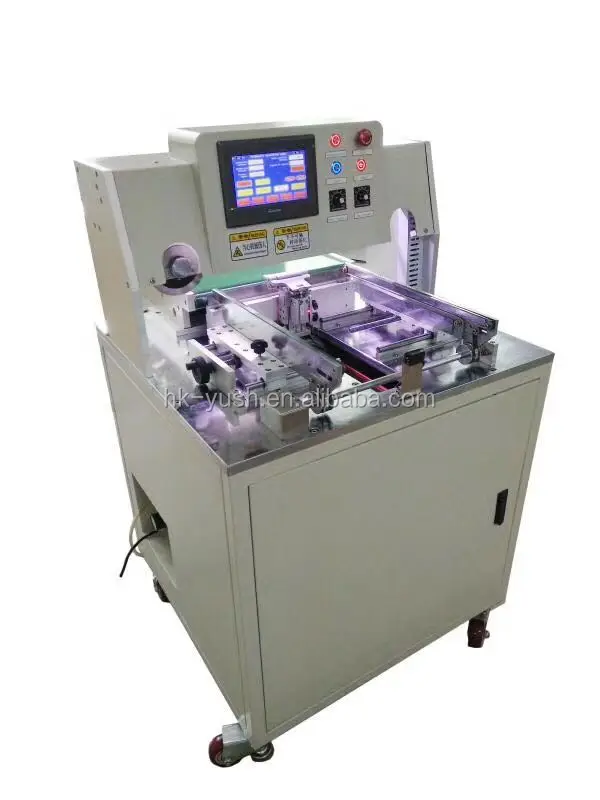

Automatic PCB Depaneling machine for cut PCB scored circuit boards and LED tube light and use aluminium pcb.
Model: YSV-3A
Automatic PCB Depaneling Machine
Features
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;
4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;
7. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable;
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
Application:
Suitablde for cut SMD aluminum PCB, PCB boards and FR4 fiberglass neatly, effectively quickly. Easy to operate and causing no damdage to components on boards. Imported high- speed steel blade with long service life, mainly applied in circuit board industries such as led, SMT, etc.
YSV-3A Specifications | |
Model |
YSV-3A |
Max Cutting Length |
500 mm |
Dimension |
99×55×125cm(L*W*H) |
Working pressure |
0.5-0.8 mpa |
Round knife |
125mm×3mm |
Straight knife |
360mm×45mm×6mm |
Equipment power |
150W |
Cutting Speed |
300mm/s |
Cutter point angle |
26~28° |
Conveyor Belt (Options) |
1.5 m |
Cutting thickness |
0.5-5.0mm |
Minimum component distance from v-groove |
1mm |
Voltage |
220 V or 110V, 50/60HZ, 150W |
Max component height |
30 mm |
Machine weight |
200kg |
Machine Warranty period |
1 year |
The machine using PLC and touch screen control system, with the function of memory (it can store 100 sets of data), the function of convenient operation (as long as the product data stored) directly download is not required to be arranged setting again, fast changing plate segmentation, to achieve a variety of plate type split operation machine. The machine is provided with operator interface and engineering technicians use interface, product data operation technicians use interface can download the relative production, but can not change the data, engineering technicians use the interface with a cipher input after the engineering technicians can download the data change.
