2.8 inch 240*320 MCU interface -TFT-H028A5QVTST2R40
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000000 Piece / Pieces per Month
- shenzhen
- T/T
- 5 days
You May Like
Product Details
Model Number | TFT-H028A5QVTST2R40 | Type | TFT |
Product Description
Model: |

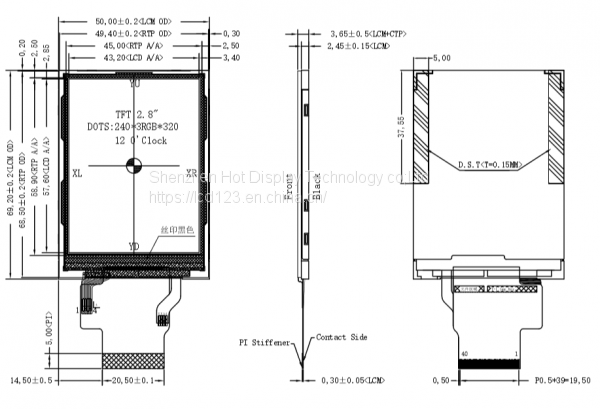

Dimensions: 42.32 * 59.62 MM |
Resolution: 240 * 320 driving voltage: 3. 3 v |
Visual Angle:12H |
Working temperature: 20 ℃ to + 70 ℃ |
Storage temperature: - 30 ℃ to + 80 ℃ |
Display mode: TN |
The connecting way: COG + FPC |
Interface: parallel port 40 pin |
Drive chip (IC) : ST7789V |
Drive chip (IC) packaging: COG |
Luminance(With LCD)280CD/M2 |
According to customer's requirement to customize the interface definition |
TFT:1.1/1.3/1.44/1.54/1.77/2.2/2.4/2.8/3.0/3.2/3.5/4.0/4.3/4.5/4.7/5/5.5/5.6/5.7/6.2/7.0/10.1 |
Shenzhen Hot Display Technology co;Ltd |
Add:JHZ S&T Business Park Jinlong Road 2, Baolong industrial City ,Longgang District Shenzhen |
Tel: 86-755-29810081 |
Fax:86-755-8966 7086 |
sales@hotlcd.com |
QQ: 189323908 |
Cell : 86-13631621652 wechat :13631621652 |
skype ID :hotdisplay |
WeB:/ |
