Home > Consumer Electronics > Display & Accessories > LCD Module > 2.4 Inch TFT - H02402QVTST4N21 MIPI Interface

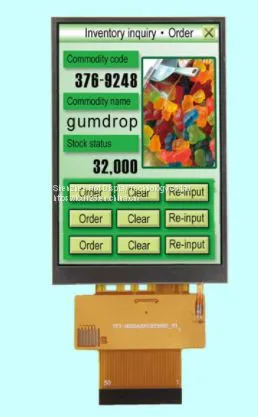

2.4 Inch TFT - H02402QVTST4N21 MIPI Interface
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HOTDISAPLY
Place of Origin:
China
Model Number:
H02402QVTST4N21
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
5 days
Related Products
-
4.0 Inch TFT ScreenNegotiableMOQ: 1 Piece -
5.0 Inch TFT Color Screen 800 * 480 Resolution Screens, 8 Bits Parallel With PCBNegotiableMOQ: 1 Piece
-
4.7 Inch TFT Screen, High-definition Color 720* 1280 Resolution Interface,NegotiableMOQ: 1 Piece
-
4.5 Inch Vertical Screen / 480 * 854NegotiableMOQ: 1 Piece
-
Square TFT 1.3 Inch 240*240 IPS SPI Lcd Display Module With Full Viewing AngleNegotiableMOQ: 1 Unit
Brand Name
HOTDISAPLY
Place of Origin
China
Model Number
H02402QVTST4N21
Type
TFT
| Model: 2.4 inch TFT - H02402QVTST4N21 MIPI interface |
| Product type: MIPI interface 2.4 inch TFT screen |
| Content: 240 * 320 |
| Overall dimensions (mm) : 42.72 * 60.26 * 2.30 |
| Horizon window size (mm) : 2.4" |
| The display size (mm) : 2.4" |
| Mm: effective size 36.72 * 48.96 |
| Product application: vehicle traveling data recorder/POS machine |
| Perspective: 12 PM |
| Backlight type or brightness: 400 CD/m2 |
| Connection PIN number: FH26-21 s - 0.3 SHW |
| Interface: MIPI Video mode |
| Working temperature: - 20 ~ 70 degrees |
| Special note: first TFT MIPI interface of small size |
| The power supply voltage: 2.8 V |
| Drive the chip: ST7782M |
| Model: 2.4-TFT-H024B3QVIST8N29 |
| Dimensions: 42.32 * 59.62 MM |
| Resolution: 240 * 320 driving voltage: 3. 3 v |
| Visual Angle:Full View |
| Working temperature: 20 ℃ to + 70 ℃ |
| Storage temperature: - 30 ℃ to + 80 ℃ |
| Display mode: IPS lcd TFT |
| The connecting way: COG + FPC |
| Interface: parallel port 29 pin |
| Drive chip (IC) : ST7789V |
| Drive chip (IC) packaging: COG |
| Luminance(With LCD)850CD/M2 |
| According to customer's requirement to customize the interface definition |
| TFT Size | Size Inch | Screen technology | Resolution | Viewing | Brightness/cd/m2 | Interface definition | Touch screen |
| TFT-H011A1QCIST3N10 | 1.1 | IPS | 135*240 | Full Viewing | 350 | SPI 4L | |
| TFT-H013A2QSIST3N10 | 1.3 | IPS | 240*240 | Full Viewing | 350 | SPI 4L | |
| TFT-H013A1HQIST3N16 | 1.3 | IPS | 320*320 | Full Viewing | 350 | MIPI | |
| TFT-H014A1QQTST5N26 | 1.44 | TN | 128*128 | 12Ｈ | 500 | MCU8/SPI3L/4L | |
| TFT-H015C1QQIST6N35 | 1.54 | IPS | 240*240 | Full Viewing | 600 | MCU8/16 | |
| TFT-H017B1CFTST2N20 | 1.77 | TN | 128*160 | 12Ｈ | 200 | MCU8 | |
| TFT-H020A1LQTIL7N40-V0 | 2 | IPS | 320*240 | Full Viewing | 700 | SPI-3L+RGB 6-Bit | |
| TFT-H020A2QCTIL2NB6 | 2 | TN | 176*220 | 12H | 220 | i80-system MCU 8/16 and SPI_3L/4L | |
| TFT-H021A2HQIST3C40 | 2.1 | IPS | 480*480 | Full Viewing | 300 | SPI 3L+ RGB 16/18 bit | |
| TFT-H02401QVIST8N40 | 2.4 | IPS | 240*320 | Full Viewing | 850 | MCU8/16,SPI3L/4L | |
| TFT-H024A6QVIFT8C15 | 2.4 | IPS | 240*320 | Full Viewing | 800 | MIPI | CTP |
| TFT-H024A2QVTST4N21 | 2.4 | TN | 240*320 | 12Ｈ | 400 | MIPI | |
| TFT-H024B3QVIST8N29 | 2.4 | IPS | 240*320 | Full Viewing | 850 | MCU8/16 | |
| TFT-H024A7QVIST8N45 | 2.4 | IPS | 240*320 | Full Viewing | 800 | SPI, RGB, MCU | |
| TFT-H024A9QVIFT5R20 |
2.4 | IPS | 240*320 | Full Viewing | 500 | MIPI | RTP |
| TFT-H024C8QVTST2N18 | 2.4 | TN | 240*320 | 12H | 250 | SPI 4line | |
| TFT-H024B11QVIST8N41 | 2.4 | IPS | 240*320 | Full Viewing | 800 | MCU 8/9/16/18 ,SPI 3L/4L | |
| TFT-H028C2QVTST4C45 | 2.8 | TN | 240*320 | 12Ｈ | 400 | CTP | |
| TFT-H02801QVIST6N40 | 2.83 | IPS | 240*320 | Full Viewing | 600 | MCU8/16,SPI3L/4L | |
| TFT-H028A4QVTST3C20_V0 | 2.8 | TN | 240*320 | 12Ｈ | 300 | MIPI | CTP |
| TFT-H028A5QVTST2R40 | 2.8 | TN | 240*320 | 12Ｈ | 280 | MCU8/16 | RTP |
| TFT-H032A2QVTST3N40 | 3.2 | TN | 240*320 | 3Ｈ | 350 | MCU8/16,SPI3L/4L | |
| TFT-H032A1QVTIL5T40 | 3.2 | TN | 240*320 | 12Ｈ | 500 | MCU /SPI/RGB | |
| TFT-H035A1QVIST6R54 | 3.5 | IPS | 320*240 | Full Viewing | 600 | TTL24+3SPI | RTP |
| TFT-H035A2HVTST2N40 | 3.5 | IPS | 320*480 | Full Viewing | 200 | MCU/RGB+SPI | |
| TFT-H035A5HVTST2R45 | 3.5 | TN | 320*480 | 6H | 250 | MCU8/16 | RTP |
| TFT-T350MTVH-06 | 3.5 | TN | 480*640 | 9Ｈ | 1000 | MIPI | |
| TFT-H040A2WVIIL5C33 | 3.97 | IPS | 480*800 | Full Viewing | 500 | MIPI | CTP |
| TFT-H040A3WVTNT0N30 | 4 | TN | 480*480 | 12Ｈ | 300 | RGB 18 bit + SPI 3L | |
| TFT-H040A1PVIST3N40 | 4 | IPS | 480*480 | Full Viewing | 300 | TTL 18/24 | |
| TFT-H040B5WVIIL4N45 | 4 | IPS | 480*480 | Full Viewing | 400 | RGB / SPI 3L | |
| TFT-H043B1WQIST6N40 | 4.3 | IPS | 480*272 | Full Viewing | 600 | TTL 24(HV Mode) | |
| TFT-H043A2WQIST5R40 | 4.3 | IPS | 480*272 | Full Viewing | 500 | TTL 8/24 | RTP |
| TFT-H043A3SVIST6C40 | 4.3 | IPS | 800*480 | Full Viewing | 600 | TTL 18/24 | CTP |
| TFT-H043W1WQTST3N40 | 4.3 | TN | 480*272 | 12Ｈ | 350 | TTL/24 | |
| TFT-H043W6HDIFT4N30 | 4.3 | HD | 1280*720 | Full Viewing | 400 | LVDS /MIPI/3L/4L | |
| TFT-H043A4WVIST5N60 | 4.3 | IPS | 480*800 | Full Viewing | 500 | CPU/RGB/MIPI/MDDI | |
| TFT-H043A4WVINT5N60 | 4.3 | IPS | 480*800 | Full Viewing | 500 | MCU | |
| TFT-H043A7WVIST5N40 | 4.3 | IPS | 480*800 | Full Viewing | 500 | RGB/IPS | |
| TFT-H043A8WVIST5N40 | 4.3 | IPS | 480*800 | Full Viewing | 500 | MIPI | |
| TFT-H045C1FWTNT0N40-V0 | 4.5 | TN | 480*854 | 12Ｈ | MCU/16 | ||
| TFT-H047B1HDIIL6N26 | 4.7 | IPS | 720*1280 | Full Viewing | 600 | MIPI | |
| TFT-H047C1HDIIL3N26 | 4.7 | IPS | 720*1280 | Full Viewing | 300 | MIPI | |
| TFT-H050A1SVIST6N40 | 5 | IPS | 800*480 | Full Viewing | 600 | TTL 18/24/RGB | |
| TFT-H050W1SVTIL2R40 | 5 | TN | 800*480 | 12Ｈ | 250 | TTL 24 | RTP |
| TFT-H050A2SVIST3N50 | 5 | IPS | 800*480 | Full Viewing | 300 | TTL 24 | |
| TFT-H055A1HDIIL3N30 | 5.5 | IPS | 720*1280 | Full Viewing | 350 | MIPI | |
| LCM-TFT-056A1VGM2N30F-V01 | 5.6 | 640*480 | MIPI | with PCBA | |||
| TFT-H07001WSIF8C40 | 7 | IPS | 1024*600 | Full Viewing | 800 | TTL 24 | CTP |
| TFT-H07002WSIF8N50 | 7 | IPS | 1024*600 | Full Viewing | 800 | TTL 24 | |
| TFT-H070W3SVTHX4R40 | 7 | TN | 800*480 | 12H | 400 | TTL /18 | RTP |
| TFT-H070W2SVTHX3R50 | 7 | TN | 800*480 | 12H | 360 | TTL 24 | RTP |
| TFT-H070A7WSIFT8N40 | 7 | IPS | 1024*600 | Full Viewing | 800 | LVDS-4L | |
| TFT-H070W1SVTHX2N50 | 7 | TN | 800*480 | 12Ｈ | 250 | TTL 24 | |
| TFT-H070B6SVTFT6C50 | 7 | TN | 800*480 | 6Ｈ | 600 | TTL 24 bit | CTP |
| TFT-K070-IM2B705-F | 7 | IPS | 800*1280 | Full Viewing | 300 | MIPI | |
| TFT-H080A1SVTHX3R50 | 8 | TN | 800*600 | 12H | 300 | TTL 18/24 Bit | RTP |
| TFT-H101A3WSIFT7N50 | 10.1 | IPS | 1024*600 | Full Viewing | 750 | TTL24 | |
| TFT-H101A2WSIFT7N40 | 10.1 | IPS | 1024*600 | Full Viewing | 750 | LVDS | |
| TFT-H101A9WSIFTKC40 | 10.1 | IPS | 1024*600 | Full Viewing | 1000 | LVDS_4L | CTP |
| TFT-H101A4WSIFT3N40 | 10.1 | IPS | 1024*600 | Full Viewing | 350 | LVDS | |
| TFT-H101A1VNGD1E0 | 10.1 | IPS | 1280*720 | Full Viewing | 800 | LVDS | |
| HTTA101MBXH-01Y VER.01 | 10.1 | 1280*800 | Full Viewing | 300 | |||
| TFT-H103A3VNGD1E0 | 10.3 | IPS | 1280*480 | Full Viewing | 600 | RGB | |
| TFT-H123C3RNGD1E0 | 12.3 | IPS | 1920*720 | Full Viewing | 1000 | RGB |
