2.4 Inch 240*320 MIPI Interface -TFT-H024A7QVIST8N45
Negotiable
/ Piece
1 Piece(Min. Order)
- shenzhen
- T/T
- 5 days
You May Like
Product Details
| Brand Name | HOTDISAPLY | Model Number | TFT-H024A7QVIST8N45 |
Product Description

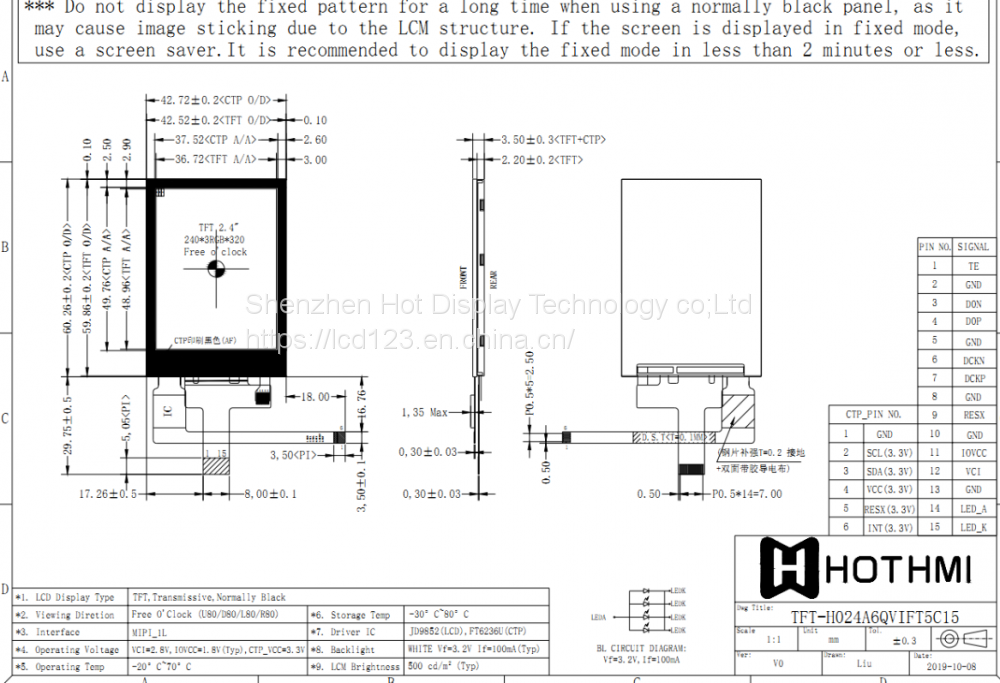

Model: 2.4 inch TFT / 240 * 320 resolution / / TFT - H024A6QVIFT5C15 MIPI interface
Product type: TFT display
Content: 240 * 320
Overall dimensions (mm) : 42.72 * 60.26
Horizon window size (mm) : 2.4"
The display size (mm) : 2.4"
Mm: effective size 36.72 * 48.96
Product application: vehicle traveling data recorder
Perspective: the whole perspective
Backlight type or brightness: 500 CD/m2
Connection PIN number: FPC - 15 PIN
Interface: MIPI
Working temperature: - 20 ~ 70 ℃
The power supply voltage: 2.8 v
Drive the chip: JD9852
