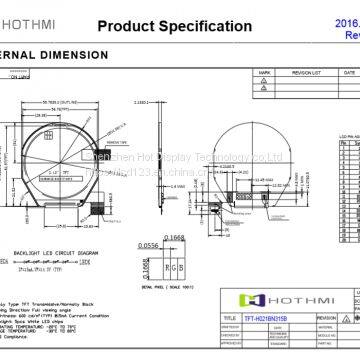

| Model: TFT-H021BN315B round display TFT 2.1inch |
| Dimensions: 58.78(H) x64.38 (V) x2.13 (T) |
| Resolution: 320 (H)×3(RGB)×320(3V |
| Visual Angle: full'clock |
| Working temperature: 20 ℃ to + 70 ℃ |
| Storage temperature: - 30 ℃ to + 80 ℃ |
| Display mode: TFT |
| The connecting way: COG + FPC |
| Interface: MIPI |
| Drive chip (IC) : |
| Drive chip (IC) packaging: COG |
| According to customer's requirement to customize the interface definition |
| Model: HTT176220N02 - C (TFT) 2.2 |
| Dimensions: 40.3 * 55.26 MM |
| Resolution: 240 * 320 driving voltage: 3. 3 v |
| Visual Angle: 12.00 o 'clock |
| Working temperature: 20 ℃ to + 70 ℃ |
| Storage temperature: - 30 ℃ to + 80 ℃ |
| Display mode: TFT |
| The connecting way: COG + FPC |
| Interface: parallel port 37 pin |
| Drive chip (IC) : ILI9225G |
| Drive chip (IC) packaging: COG |
| According to customer's requirement to customize the interface definition |
| Model: TFT-H024B3QVIST8N29 |
| Dimensions: 43.20 * 59.62 MM |
| Resolution: 240 * 320 driving voltage: 3. 3 v |
| Visual Angle: 12.00 o 'clock |
| Working temperature: 20 ℃ to + 70 ℃ |
| Storage temperature: - 30 ℃ to + 80 ℃ |
| Display mode: TFT |
| The connecting way: COG + FPC |
| Interface: parallel port 40 pin |
| Drive chip (IC) : ILI9341 |
| Drive chip (IC) packaging: COG |
| According to customer's requirement to customize the interface definition |
| 2.8 Inch IPS 4Line TFT LCD Module with 240X320 Resolution |
| Model: HTT240320T16A028 (TFT) 2.8 |
| Dimensions: 50.0 * 69.2 MM |
| Resolution: 240 * 320 driving voltage: 3. 3 v |
| Visual Angle: 12.00 o 'clock |
| Working temperature: 20 ℃ to + 70 ℃ |
| Storage temperature: - 30 ℃ to + 80 ℃ |
| Display mode: TFT |
| The connecting way: COG + FPC |
| Interface: parallel port 30 pin |
| Drive chip (IC) : ST7789S |
| Drive chip (IC) packaging: COG |
| According to customer's requirement to customize the interface definition |
| 3.0 Inch IPS 4Line TFT LCD Module with 240X400 Resolution |
| Model: HTT240400NO6 (TFT 3.0） |
| Dimensions: 45.04 * 77 mm |
| Resolution: 240 * 400 driving voltage: 3. 3 v |
| Visual Angle: 12.00 o 'clock |
| Working temperature: 20 ℃ to + 70 ℃ |
| Storage temperature: - 30 ℃ to + 80 ℃ |
| Display mode: TFT |
| The connecting way: COG + FPC |
| Interface: parallel port 40 pin |
| Drive chip (IC) : ILI19327 |
| Drive chip (IC) packaging: COG |
| According to customer's requirement to customize the interface definition |

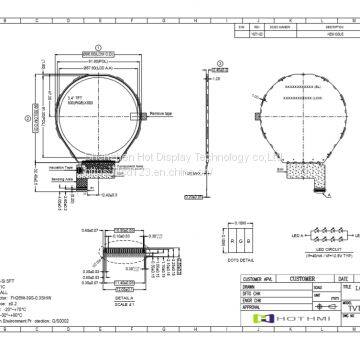

| Model:TFT-H0340A1 round display TFT 3.4inch |
| Dimensions:96.6(W) x 99.0(H) x 2.45(D) |
| Resolution: 800 (H)×3(RGB)×800(3V) |
| Visual Angle: full'clock |
| Working temperature: 20 ℃ to + 70 ℃ |
| Storage temperature: - 30 ℃ to + 80 ℃ |
| Display mode: TFT |
| The connecting : COG + FPC |
| Interface: MIPI |
| Drive chip (IC) : ILI9881C |
| Drive chip (IC) packaging: COG |
| According to customer's requirement to customize the interface definition |
