Home > Products > diamond grinding wheel > Cylindrical Diamond Wheel for PDC Cutter / PDC Drill Bits Grinding

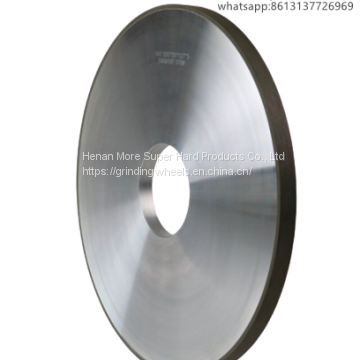

Cylindrical Diamond Wheel for PDC Cutter / PDC Drill Bits Grinding
USD $1 - $50
/ Piece
1 Piece(Min.Order)
- 500 Piece / Pieces per Month
- ZHENGZHOU
- T/T PayPal Other
- 7 days
You May Like
-
sponge grinding wheel for stainless steel
-
diamond polishing pad for marble and granite
-
abrasive Sheet Roll
-
High precision electric spindle CBN grinding wheel grinding rod 20Cr carburizing quenching inner circular grinding machining
-
Customized processing of carbon fiber with irregular shaped steel sand grinding head profile for rapid prototyping with good roughness
-
Customized 190mm long electroplated diamond sand needle SDC120 # for drilling wood with a handle diameter of 2.5mm
Product Details
| Brand Name: | moresuperhard | Place of Origin: | China | Model Number: | 1A1 |
| Size: | 350 * 40 * 127 * 10mm | Type: | Abrasive Disc |
Product Description

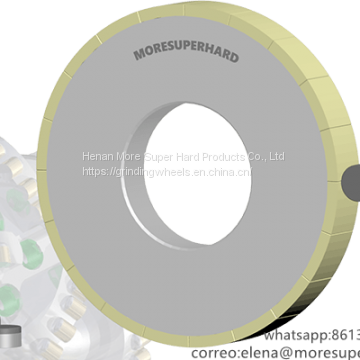

Vitrified Diamond Wheel for Cylindrical Grinding PDC Cutter
Vitrified diamond Cylindrical grinding wheel for rough grinding the cylinder of Polycrystalline Diamond Compacts (PDC cutter). Compared with resin diamond grinding wheel, our wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved
Specification Of Cylindrical Diamond Wheel
Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 | 350 | 40 | 127 | 10 |
| 400 | 40 50 | 203 | 10 | |
400 | 40 50 | 305 | 10 |

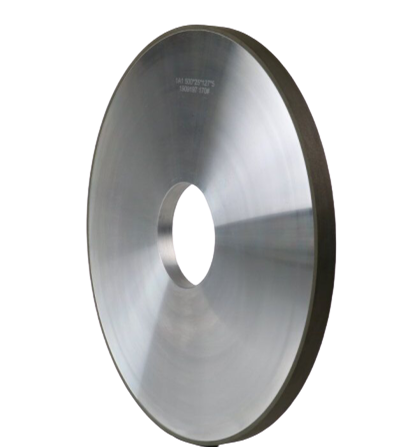

Resin Diamond Wheel for Cylindrical Grinding PDC Cutter / Drill bits
| Diameter (mm) | Diameter (inch) | H (mm) | T (mm) | X (mm) |
| 400 | 16 inch | 127 | 25, 50 | 10, 25 |
| 500 | 20 inch | 127, 203.2 | 25, 50 | 10, 25 |
| 600 | 24 inch | 254 | 25, 50 | 10, 16, 25 |
| 750 | 30 inch | 304.8 | 50 | 10 |
| 914.4 | 36 inch | 304.8 | 25, 50 | 10, 25 |
| 1100 | 43 inch | 304.8 | 50 | 10 |
| Other specification can be made according to customer requirement Email:info@moresuperhard.com | ||||

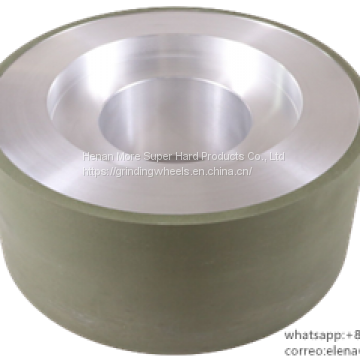

Centerless Grinding Wheel for Precision Grinding PDC (polycrystalline diamond compacts)
| Model | D (mm) | T (mm) | H (mm) | X (mm) |
| 1A1 6A1 9A1 | 300 | 150 | 120 | 5, 10 |
| 350 | 125 | 127 | 5, 10 | |
| 400 | 150 | 203 | 5, 10 | |
| 455 | 205 | 228.6 | 5, 10 | |
| 500 | 150 | 305 | 5, 10 | |
| 650 | 380 | |||
| Round run-out of grinding wheel ≤0.02mm Straightness ≤ 0.02 mm | ||||
