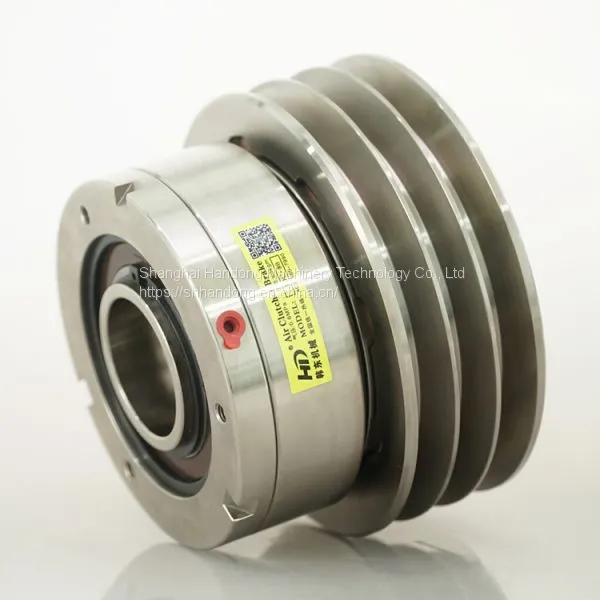

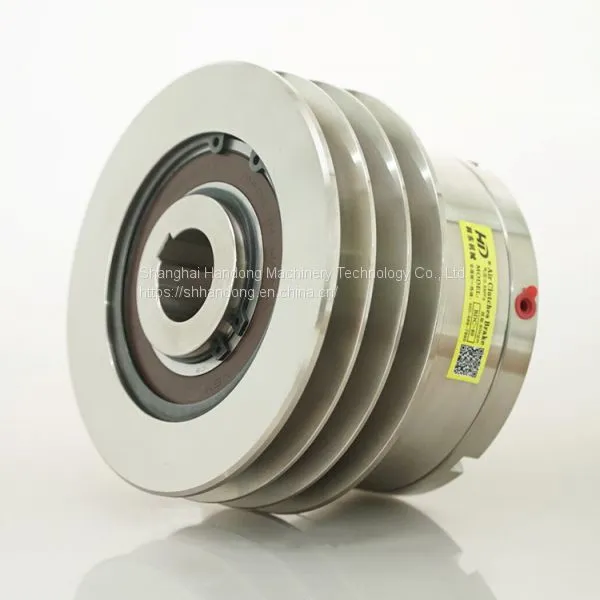

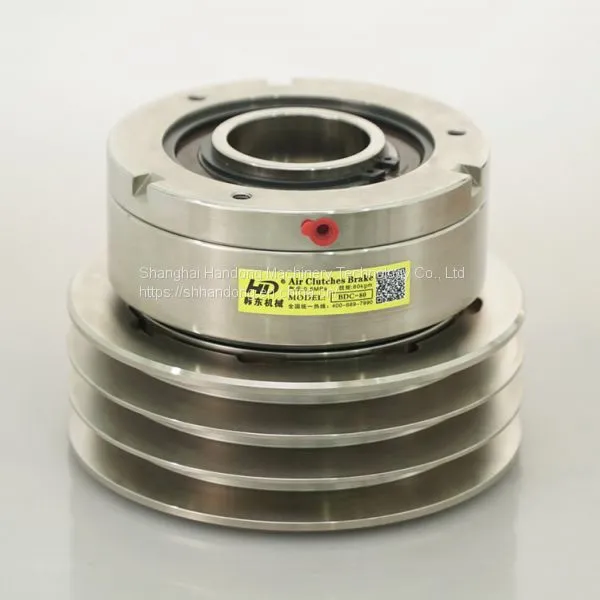

BDCV multi-disc pneumatic clutch with belt groove

BDCV multi-disc pneumatic clutch with belt groove

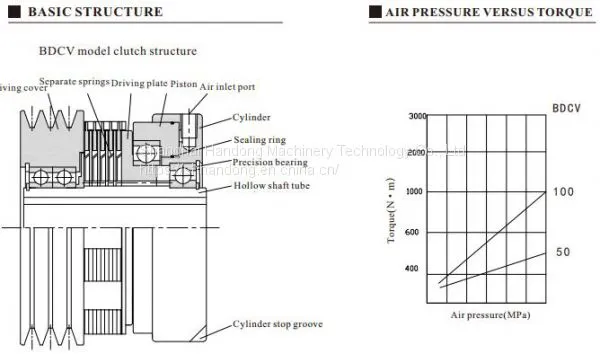

BDCV multi-disc pneumatic clutch with belt groove is the update and modification based on BDC model multiple discs pneumatic clutch. It is a kind of shaft clutch, bore connected with clutch through spline. Handong made BDCV model multi-disc air shaft clutch is composed of groups copper-based friction plates and steel plates alternate, it is more than six groups of them. So as to transmit high torque than normal friction type clutch.

Characters of this group friction plates clutch:

1. Group copper-based friction plates connected, transmit high torque.

2. Inside and outside friction plates, separated fast and thoroughly.

3. Idle load torque is small.

4. High-speed engagement and rotating.

5. Integrated narrow V-belt structure, convenient for installation.

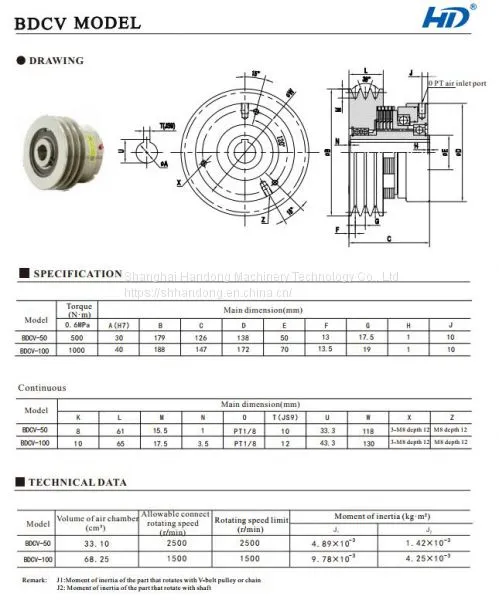

Following is the technical datas of multi-disc pneumatic clutch for your reference:

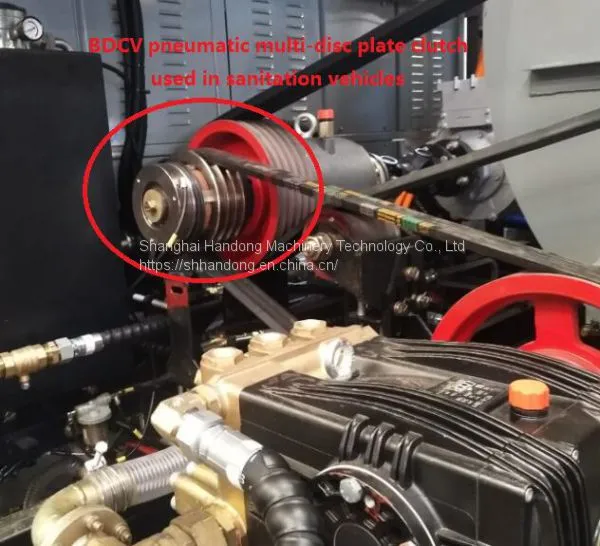

Our BDCV pneumatic high torque clutch is alternate Nexen DFC-1650 964154 and DFC-2200 sheave mount on the pilot in function and appearance. It is popular used in automatic industry, packaging and printing machine, rubber tire machine, engineering vehicle, cleaning car, oil pump and etc.
