Multi-way valves include DF series multi-way valve, ZDFM7-22 integral LUDV multi-way valve, YX series multi-way valve, TY-HCD series multi-way valve, TY-PSV series multi-way valve, five categories.

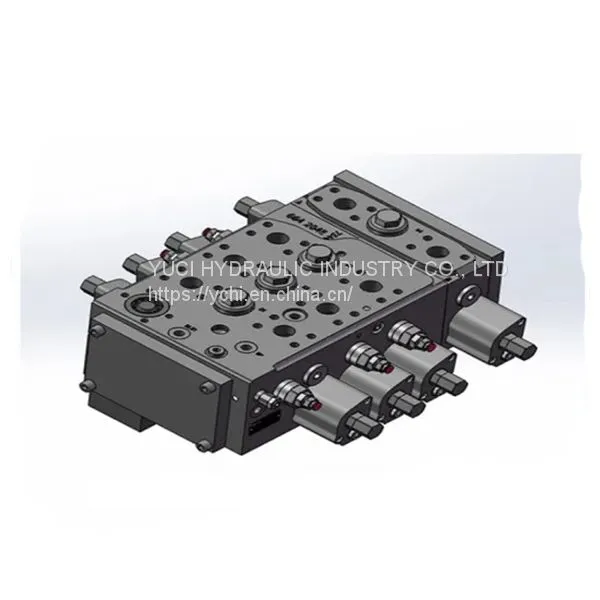

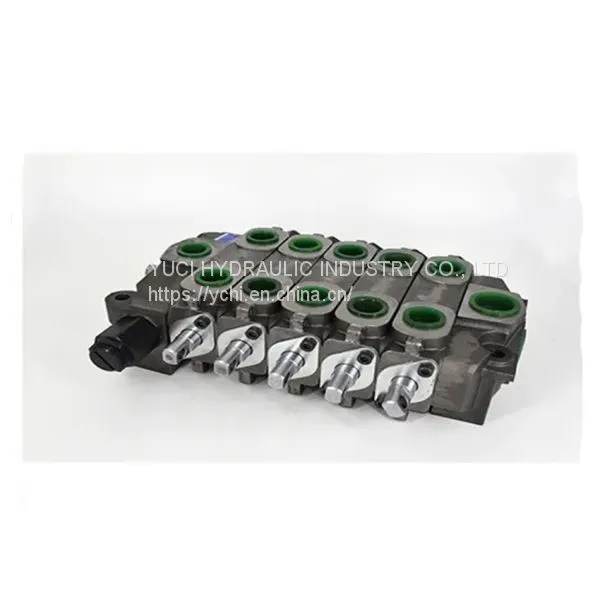

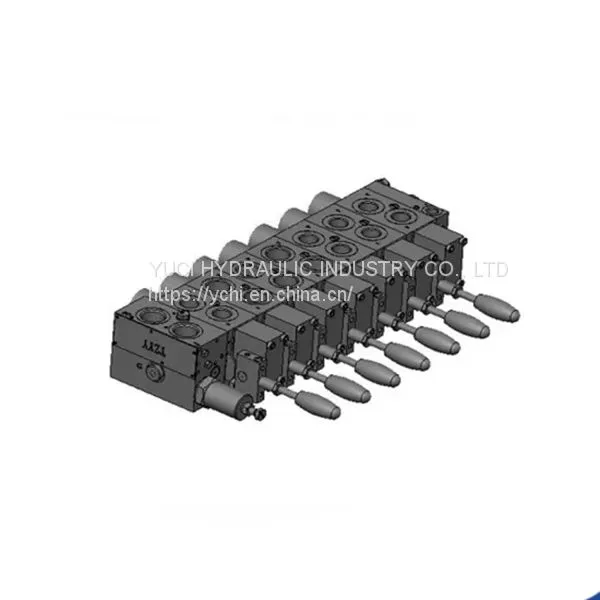

ZDFM7-22 integral LUDV multi-way valve, with integral (3, 5) and single-chip structure, can be freely combined according to actual working conditions, and has LUDV load independent flow distribution system. In the case of insufficient flow - that is, the oil pump cannot provide sufficient flow to operate the actuators at the required speed, the operating speed of each actuator will be reduced proportionally so that the actuators will not stop working due to insufficient oil supply.
MODEL INSTRUCTION
| Integral LUDV multi-way valve | Product number | Series 30 to 39=3X | Number of spools | Path | Control mode |
| ZDFM7 | 1577 | 3X | 4 | M7-22 | hydraulic control |
| 1578 |
TECHNICAL FEATURE
01.Compact structure, avoid leakage
02.super high pressure and large flow rate
03.Independent flow distribution system with LUDV load
04.Can work under severe conditions
SPECIFICATION
| Model | Maximum working pressure(MPa) |
Maximum hydraulic pressure(MPa) |
Use flow range (L/min) |
| ZDFM7-*-3X/4M7-22H | 38 | 3.5 | 42 |
APPLICATION AREA
ZDFM7-22 integral LUDV multi-way valve is mainly used in construction machinery such as excavators, cranes, crawler cranes and material handling equipment.
