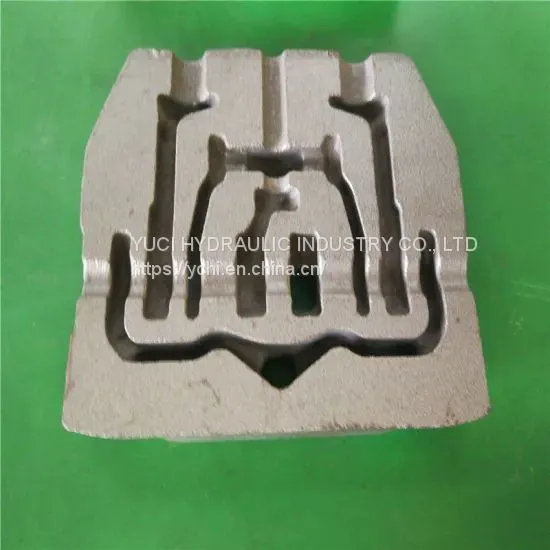

Cast Iron Hydraulic Body Valves Two-Way Cartridge Directional Valve
US$ 15 - 55
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MEDOX
Place of Origin:
China
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
3 days
Related Products
-
Hydraulic Valve Series Castings-Hydraulic Control Cover (with Reversing Valve)US$ 15 - 55MOQ: 1 Piece -
Two-Way Cartridge Hydraulic Pressure Valve-Pilot Operated Position Monitoring Electromagnetic Cartridge ValveUS$ 15 - 55MOQ: 1 Piece
-
Hydraulic Plug-in Relief Valve-Electromagnetic Pilot Type Relief ValveUS$ 15 - 55MOQ: 1 Piece
-
Hydraulic Proportional Directional Valve-Electromagnetic Reversing Valve With Emergency HandleUS$ 15 - 55MOQ: 1 Piece
-
Hydraulic Direct Operated Proportional Directional ValveUS$ 15 - 55MOQ: 1 Piece
Brand Name
MEDOX
Place of Origin
China
Material
Stainless Steel
Application
General
Structure
Plug
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Hydraulic
Port Size
Shenzhen/HongKong
Media
Oil
Temperature of Media
Normal Temperature
The cartridge valve consists of a plug-in component (plug-in) and a control cover with a pilot path, and is equipped with a pilot control stage that can be used to form a control unit for direction, pressure control or compound control. It is suitable for high pressure, high flow, low pressure loss systems, achieving high speed conversion and no impact action.
MODEL INSTRUCTION
| Name | Model examples | Specifications | Setting pressure(bar) |
| Two-way cartridge directional valve | TY-LC16A05E | 16/25/32/40/50/63 | 0.5/1.0/2.0/3.0/4.0 |
| Control cover (with reversing valve) | TY-LFA16D-7X/ | 16/25/32/40/50/63 | |
| Two-way cartridge pressure valve | TY-LC16DB20E-7X | 16/25/32/40/50/63/80 | 2.0/3.0/4.0/5.0/8.0 |
| Control cover (with reversing valve) | TY-LFA16DBW-7X/315 | 16/25/32/40/50/63/80 | 25/50/100/200/315 |
TECHNICAL FEATURE
01.Standardization, generalization, and high degree of modularity
02.Large flow rate and low pressure lose
03.Simple structure and high reliability
04.No leakage, noise and vibration problem
SPECIFICATION
| Model |
Maximum working pressure(MPa) |
Use flow range (L/min) |
| TY-LC/LFA16/25/32/40/50/63 | 42 | 175~2500 |
| TY-LC/LFA16/25/32/40/50/63/80 | 42 | 200~4500 |
APPLICATION AREA
High-pressure series cartridge valves are widely used in high-pressure and high-flow systems such as construction machinery, forging equipment, and various machine tools.
