Home > Products > Hydraulic Valves > Hydraulic Valve Series Castings-Hydraulic Control Cover (with reversing valve)

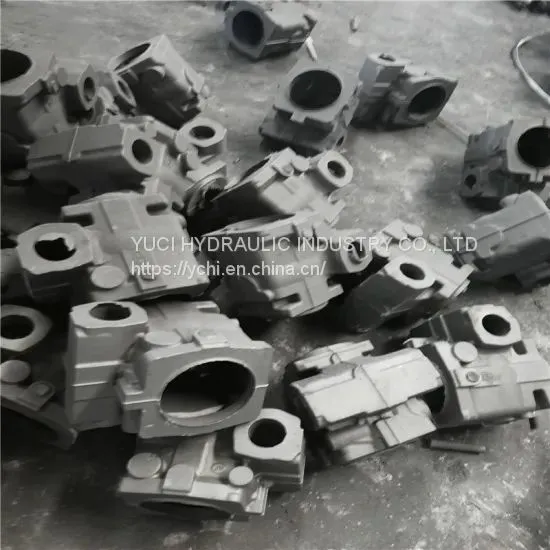

Hydraulic Valve Series Castings-Hydraulic Control Cover (with reversing valve)
USD $15 - $55
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- SHENZHEN/HONGKONG
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 3 days
You May Like
-
Two-Way Cartridge Hydraulic Pressure Valve-Pilot Operated Position Monitoring Electromagnetic Cartridge Valve
-
Hydraulic Plug-in Relief Valve-Electromagnetic Pilot Type Relief Valve
-
Hydraulic Proportional Directional Valve-Electromagnetic Reversing Valve with Emergency Handle
-
Hydraulic Direct Operated Proportional Directional Valve
-
Hydraulic Pilot Proportional Directional Valve-Position Monitoring Electro-Hydraulic Reversing Valve pictures & photos Hydraulic Pilot Proportional Directional Valve-Position Monitoring Electro-Hydraulic Reversing Valve pictures & photos Hydraulic Pilot P
-
High Frequency Proportional Hydraulic Directional Valve
Product Details
| Brand Name | MEDOX | Place of Origin | China | |
| Material | Stainless Steel | Application | General | |
| Structure | Plug | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Power | Hydraulic | |
| Port Size | Shenzhen/HongKong | Media | Oil | |
| Temperature of Media | Normal Temperature |
Product Description
The cartridge valve consists of a plug-in component (plug-in) and a control cover with a pilot path, and is equipped with a pilot control stage that can be used to form a control unit for direction, pressure control or compound control. It is suitable for high pressure, high flow, low pressure loss systems, achieving high speed conversion and no impact action.
MODEL INSTRUCTION
| Name | Model examples | Specifications | Setting pressure(bar) |
| Two-way cartridge directional valve | TY-LC16A05E | 16/25/32/40/50/63 | 0.5/1.0/2.0/3.0/4.0 |
| Control cover (with reversing valve) | TY-LFA16D-7X/ | 16/25/32/40/50/63 | |
| Two-way cartridge pressure valve | TY-LC16DB20E-7X | 16/25/32/40/50/63/80 | 2.0/3.0/4.0/5.0/8.0 |
| Control cover (with reversing valve) | TY-LFA16DBW-7X/315 | 16/25/32/40/50/63/80 | 25/50/100/200/315 |
TECHNICAL FEATURE
01.Standardization, generalization, and high degree of modularity
02.Large flow rate and low pressure lose
03.Simple structure and high reliability
04.No leakage, noise and vibration problem
SPECIFICATION
| Model | Maximum working pressure(MPa) | Use flow range (L/min) |
| TY-LC/LFA16/25/32/40/50/63 | 42 | 175~2500 |
| TY-LC/LFA16/25/32/40/50/63/80 | 42 | 200~4500 |
APPLICATION AREA
High-pressure series cartridge valves are widely used in high-pressure and high-flow systems such as construction machinery, forging equipment, and various machine tools.
